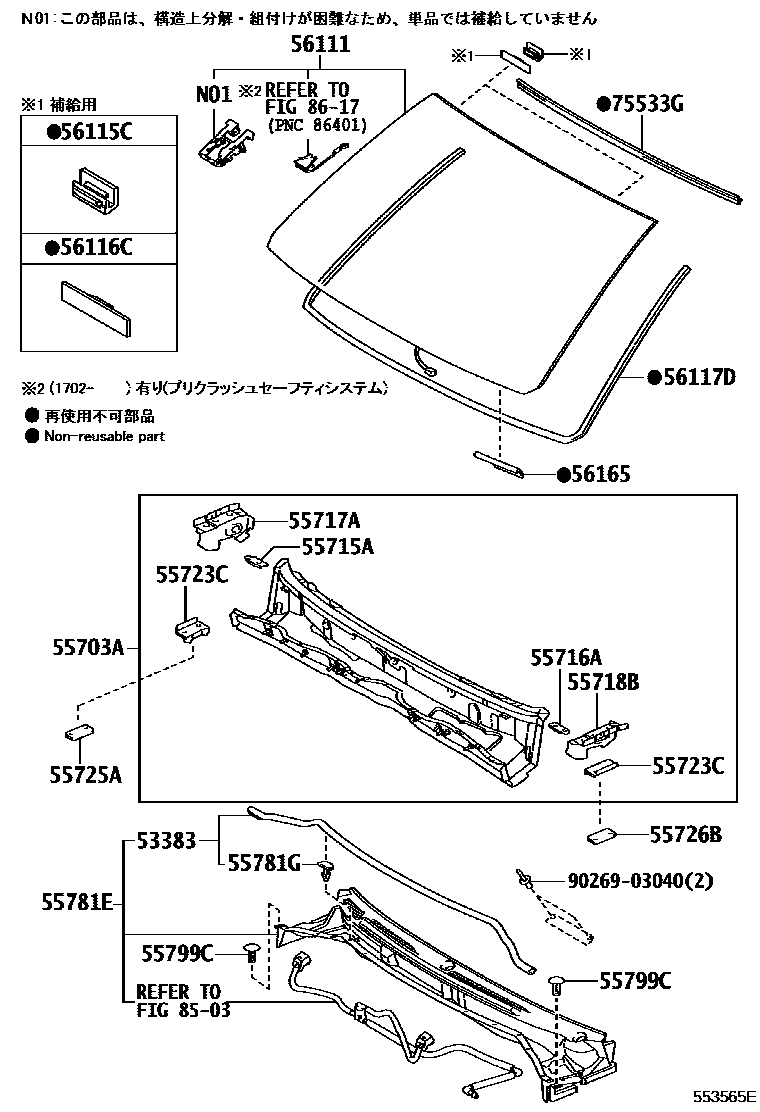

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-60070iURJ201201509

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-60460iURJ201201509

55715ABRACE, COWL TOP TO APRON, RH

main55715-60040iURJ201201509

55716ABRACE, COWL TOP TO APRON, LH

main55716-60040iURJ201201509

55717APANEL, COWL TOP SIDE, INNER RH

main55717-60050iURJ201201509

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-60060iURJ201201509

55723CREINFORCEMENT, COWL TOP SIDE, RH

main55723-60020iURJ201201509

55725AREINFORCEMENT, HOOD HINGE MOUNTING, RH

main55725-60040iURJ201201509

55726BREINFORCEMENT, HOOD HINGE MOUNTING, LH

main55725-60040iURJ201201509

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-60270iURJ201201509

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-08108iURJ201201509-201808

55799CCLIP, COWL TOP VENTILATOR LOUVER

main55799-60020iURJ201201509

56111GLASS, WINDSHIELD

main56101-60994iURJ201201509-201708

main56101-6A922iURJ201201708-201908

main56101-6A964iURJ201201908

56115CSTOPPER, WINDSHIELD GLASS

main56115-30100iURJ201201509

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iURJ201201509

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-60100iURJ201201509

sub56117-64010

56165COVER, FRONT WINDOW INNER MOULDING, LH

main56165-60010iURJ201201509

75533GMOULDING, WINDSHIELD, OUTSIDE

main75531-60080iURJ201201509

8503

8617

9026903040

main90269-03040

21 parts on this diagram · 1 diagram in section
