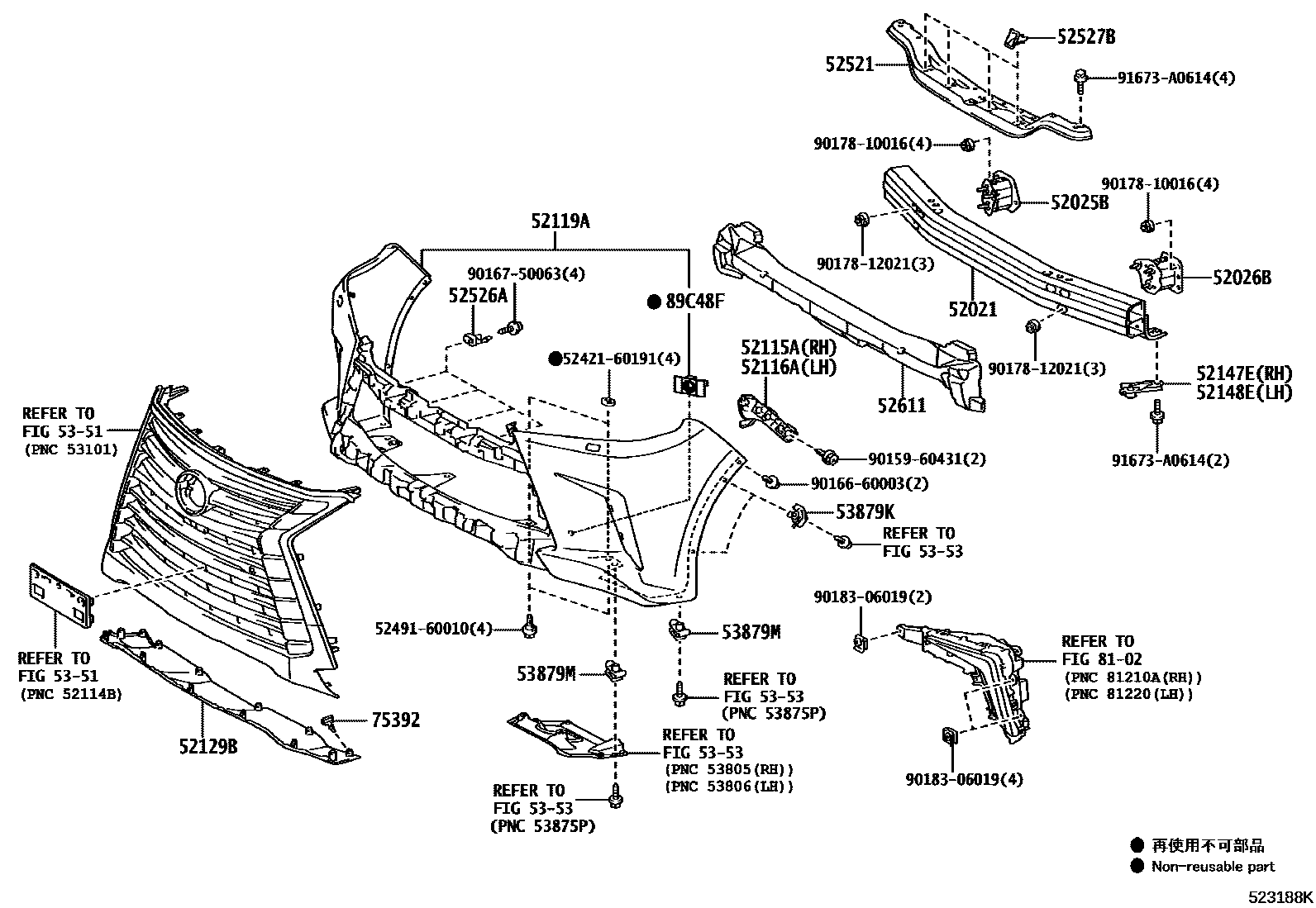

FRONT BUMPER & BUMPER STAY
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
WHITE PEARL CS.,077
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7
BLACK,202
STARLIGHT BLACK GF.,217
SLEEK ECRU ME.,4U7
DEEP BLUE MC.,8X5
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7
BLACK,202
STARLIGHT BLACK GF.,217
SLEEK ECRU ME.,4U7
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
52129BCOVER, FRONT BUMPER, LOWER
52147EBRACKET, FRONT BUMPER MOUNTING, RH
52148EBRACKET, FRONT BUMPER MOUNTING, LH
52521RETAINER, FRONT BUMPER, UPPER CENTER
52526ARETAINER, FRONT BUMPER, LOWER NO.1
52527BRETAINER, FRONT BUMPER, LOWER NO.2
52611ABSORBER, FRONT BUMPER ENERGY
5351
5353
53879KRETAINER, FRONT FENDER LINER
53879MRETAINER, FRONT FENDER LINER
75392RETAINER, OUTSIDE MOULDING
8102
89C48FRETAINER, ULTRASONIC SENSOR, FRONT SIDE
5242160191FILLER, FRONT BUMPER MOULDING, RH
main52421-60191
5249160010BOLT, BUMPER PAD
main52491-60010
9015960431
main90159-60431
9016660003
main90166-60003
9016750063
main90167-50063
9017810016
main90178-10016
9017812021
main90178-12021
9018306019
main90183-06019
91673A0614
main91673-A0614
29 parts on this diagram · 1 diagram in section
