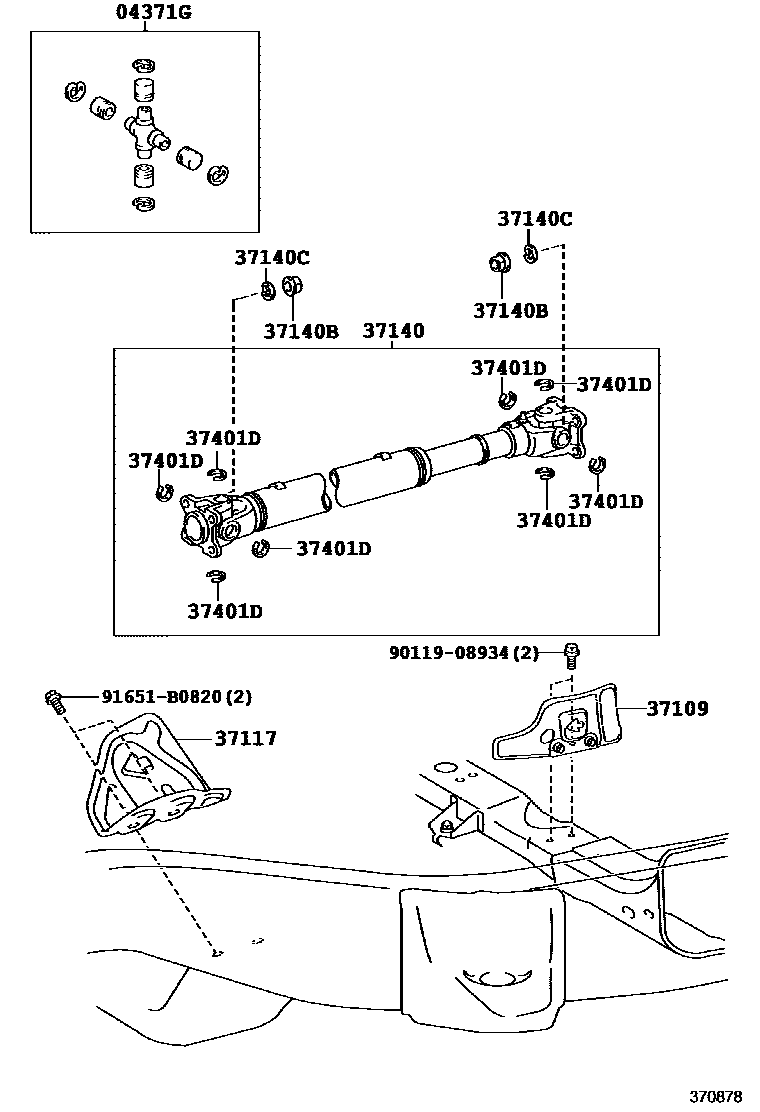

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1���� 0002 1��

04371GSPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT

main04371-60200iURJ201201509-201811

sub04371-60220

main04371-60220iURJ201201811-202104

sub04371-60221

main04371-60221iURJ201202104

37109BRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR, NO.1

main37109-60040iURJ201201509

37117INSULATOR, PROPELLER SHAFT HEAT

main37117-60030iURJ201201509

37140SHAFT ASSY, PROPELLER, FRONT

main37140-60630iURJ201201509

37140BNUT (F0R FRONT PROPELLER SHAFT)

main90178-11001iURJ201201509

37140CWASHER (F0R FRONT PROPELLER SHAFT)

main90201-11013iURJ201201509

37401DRING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)

main90520-29024iURJ201201509

main90520-29025iURJ201201509

main90520-29026iURJ201201509

main90520-29027iURJ201201509

main90520-29039iURJ201201509

main90520-29040iURJ201201509

main90520-29041iURJ201201509

main90520-29042iURJ201201509

main90520-29043iURJ201201509

main90520-29044iURJ201201509

main90520-29045iURJ201201509

main90520-29046iURJ201201509

main90520-29047iURJ201201509

main90520-29048iURJ201201509

9011908934

main90119-08934

91651B0820

main91651-B0820

9 parts on this diagram · 2 diagrams in section
