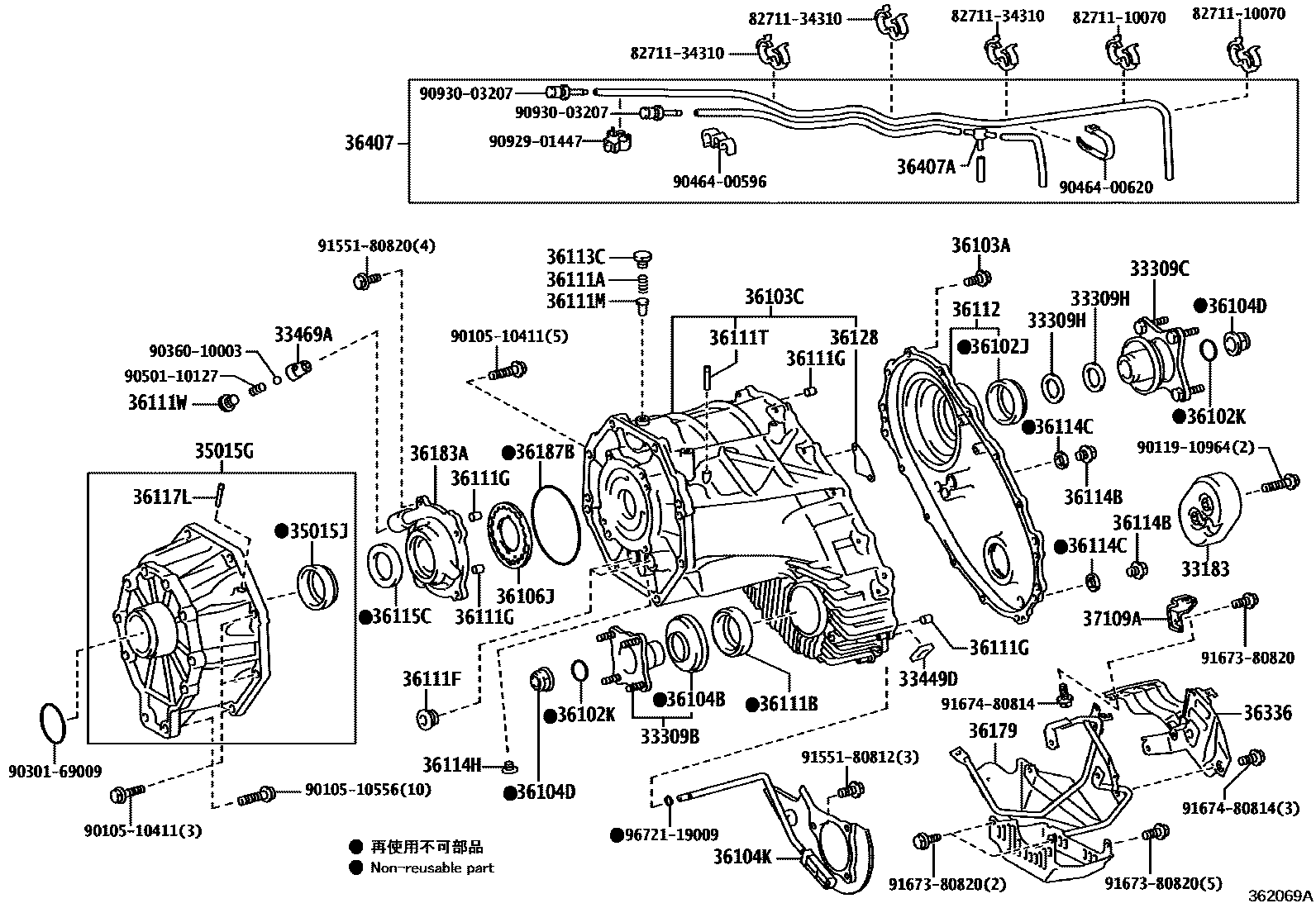

TRANSFER CASE & EXTENSION HOUSING

33183DAMPER, TRANSFER DYNAMIC

main33183-60060iURJ201201509

33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-34030iURJ201201509-201811

sub33309-34031

main33309-34031iURJ201201811-202103

sub33309-60170

sub90311-50066

main33309-60170iURJ201202103

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-60110iURJ201201509

33309HWASHER, TRANSFER OUTPUT SHAFT

main36275-34010iURJ201201509

33449DMAGNET (FOR TRANSFER CASE)

main33449-60010iURJ201201509

33469ASEAT, RELIEF VALVE (FOR TRANSFER EXTENSION REAR HOUSING)

main33469-60020iURJ201201509

35015GADAPTER, TRANSFER, REAR

main35015-60220iURJ201201509

35015JSEAL, OIL(FOR TRANSFER CASE ADAPTER REAR)

main90311-51008iURJ201201509

sub90311-51010

36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)

main90311-50040iURJ201201509-202102

sub90311-50065

main90311-50065iURJ201202103

36102KRING, O

main90301-31003iURJ201201509

36103ABOLT (FOR TRANSFER CASE)

main91551-00845iURJ201201509

36103CCASE, TRANSFER, FRONT

main36103-60360iURJ201201509-201905

sub36103-60H10

sub36103-60H20

main36103-60361iURJ201201905

36104BDEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT)

main33325-34030iURJ201201509-201811

sub33325-34031

main33325-34031iURJ201201811-202103

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-24011iURJ201201509

36104KSEPARATOR SUB-ASSY, TRANSFER OIL

main36104-34010iURJ201201509

36106JROTOR, TRANSFER OIL PUMP

main36106-34010iURJ201201509

36111ASPRING, COMPRESSION (FOR TRANSFER CASE)

main90501-20091iURJ201201509

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-50055iURJ201201509-202103

main90311-50066iURJ201202103

36111FPLUG (FOR TRANSFER CASE)

main90341-24006iURJ201201509

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214iURJ201201509

36111MPIN, SLOTTED SPRING (FOR TRANSFER CASE)

main90241-07003iURJ201201509

36111TTUBE (FOR TRANSFER CASE)

main90441-05001iURJ201201509

36111WPLUG, TIGHT NO.2(FOR TRANSFER CASE)

main90341-18039iURJ201201509

36112CASE, TRANSFER, REAR

main36104-60052iURJ201201509-201905

sub36103-60H10

main36104-60053iURJ201201905

36113CPLUG (FOR TRANSFER CASE)

main90341-14012iURJ201201509

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iURJ201201509

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90430-18008iURJ201201509

36114HPLUG, NO.2 (FOR TRANSFER CASE)

main90341-14008iURJ201201509

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-51009iURJ201201509

36117LTUBE(FOR TRANSFER ADAPTER)

main90441-05001iURJ201201509

36128DEFLECTOR, BREATHER OIL

main36128-34010iURJ201201509-202103

main36128-60080iURJ201202103

36179PROTECTOR, TRANSFER CASE LOWER

main36179-60010iURJ201201509

36183APLATE, TRANSFER OIL PUMP

main36183-34011iURJ201201509

36187BRING, O (FOR TRANSFER OIL STRAINER)

main96721-31130iURJ201201509

36336INSULATOR, TRANSFER HEAT

main36336-60030iURJ201201509

36407HOSE SUB-ASSY, TRANSFER BREATHER

main36407-60310iURJ201201509

36407AWAY, 3(FOR TRANSFER BREATHER HOSE)

main90413-04001iURJ201201509

37109ABRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR

main37109-60080iURJ201201509

8271110070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10070

8271134310WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-34310

9010510411

main90105-10411

9010510556

main90105-10556

9011910964

main90119-10964

9030169009

main90301-69009

9036010003

main90360-10003

9046400596

main90464-00596

9046400620

main90464-00620

9050110127

main90501-10127

9092901447

main90929-01447

9093003207

main90930-03207

9155180812

main91551-80812

9155180820

main91551-80820

9167380820

main91673-80820

9167480814

main91674-80814

9672119009

main96721-19009

55 parts on this diagram · 1 diagram in section
