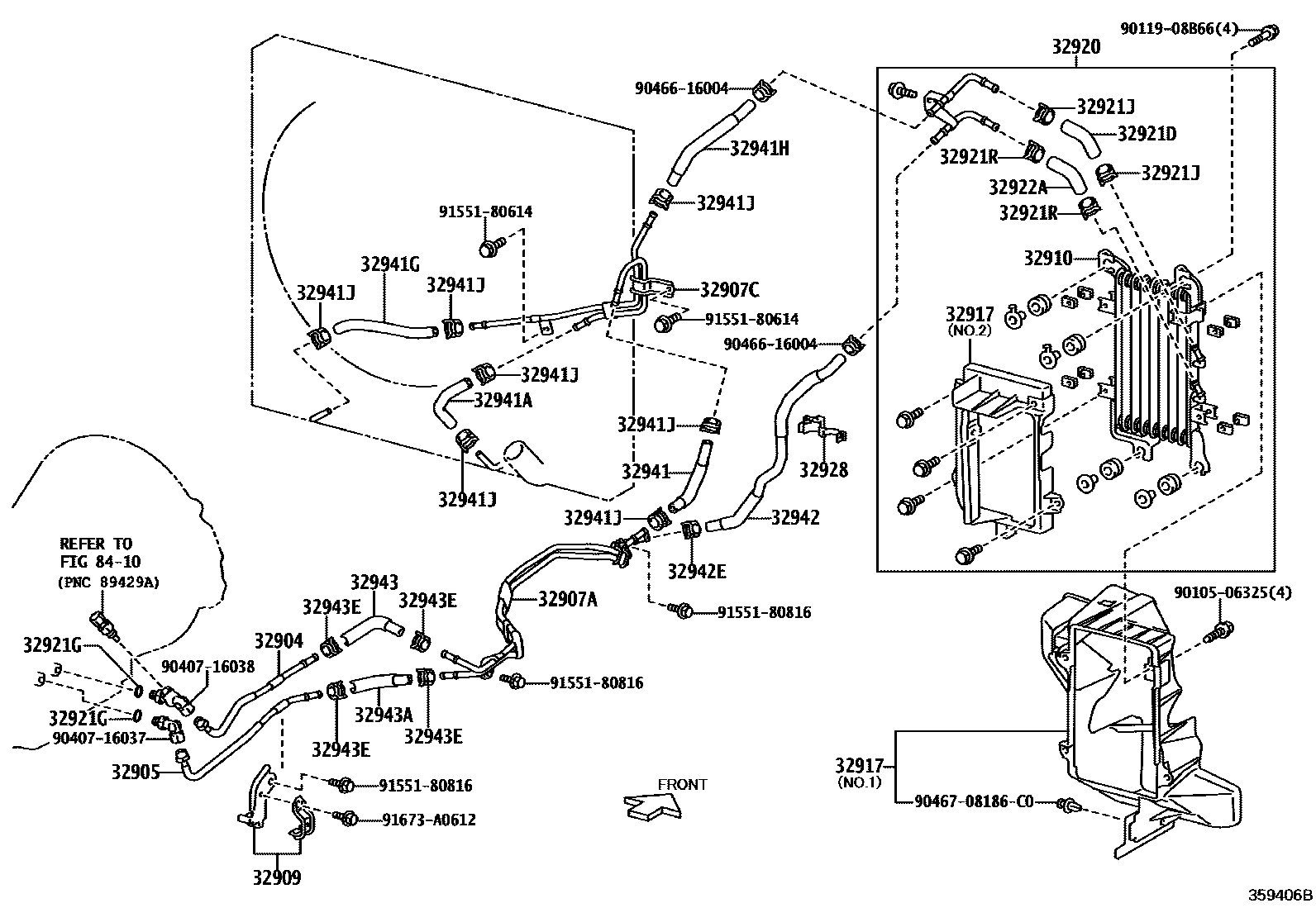

OIL COOLER & TUBE (ATM)
32904TUBE SUB-ASSY, OIL COOLER INLET, NO.1
32905TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1
32907ATUBE, OIL COOLER
32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1
32909CLAMP SUB-ASSY, TRANSMISSION OIL COOLER TUBE, NO.1
32910COOLER ASSY, OIL
32917DUCT, TRANSMISSION OIL COOLER AIR
32920COOLER ASSY, OIL W/HOSE
32921DHOSE(FOR OIL COOLER INLET)
32921GRING, O(FOR OIL COOLER TUBE UNION)
32921JCLIP(FOR OIL COOLER HOSE)
32921RCLIP, NO.2(FOR OIL COOLER HOSE)
32922AHOSE(FOR OIL COOLER OUTLET)
32928CLAMP, FLEXIBLE HOSE, NO.1
32941HOSE, OIL COOLER INLET, NO.1
32941AHOSE, OIL COOLER INLET, NO.2
32941GHOSE, OIL COOLER INLET, NO.3
32941HHOSE, OIL COOLER INLET, NO.4
32941JCLIP, NO.1(FOR OIL COOLER HOSE)
32942HOSE, OIL COOLER OUTLET, NO.1
32942ECLIP, NO.2(FOR OIL COOLER HOSE)
32943HOSE, TRANSMISSION OIL COOLER, NO.1
32943AHOSE, TRANSMISSION OIL COOLER, NO.2
32943ECLIP, NO.3(FOR OIL COOLER HOSE)
8410
9010506325
9011908B66
9040716037
9040716038
9046616004
9046708186C0
main90467-08186C0
9155180614
9155180816
91673A0612
34 parts on this diagram · 1 diagram in section
