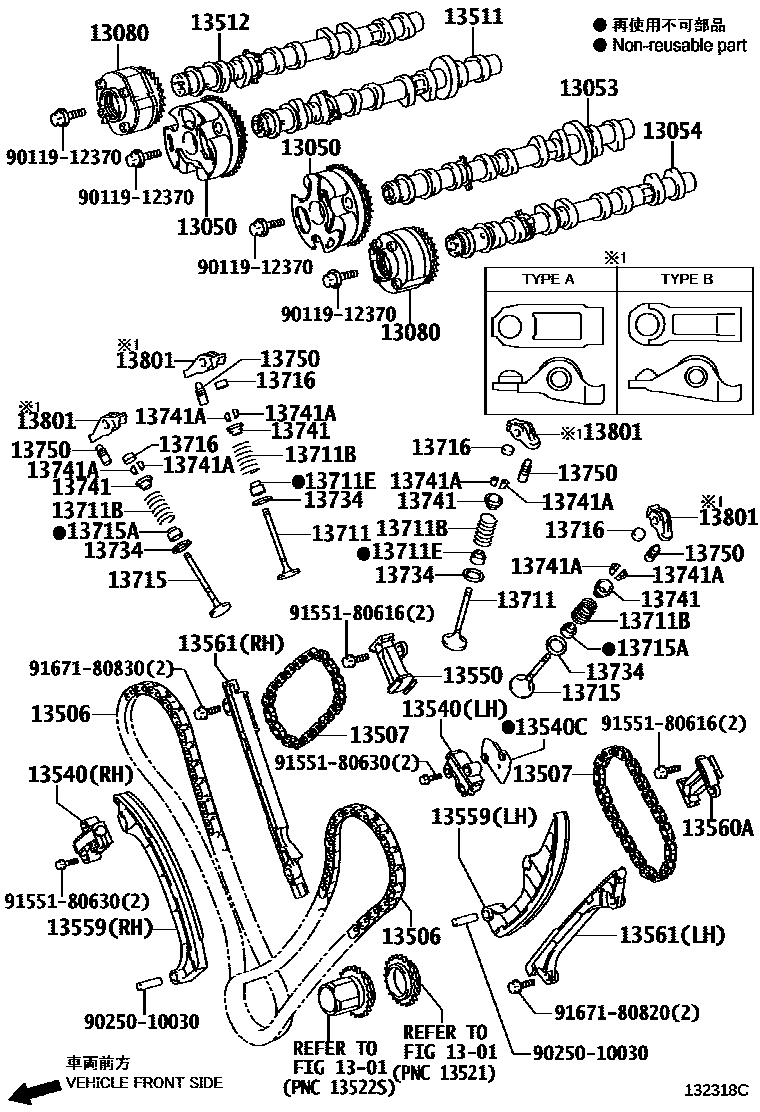

CAMSHAFT & VALVE
1301
13050GEAR ASSY, CAMSHAFT TIMING
13053CAMSHAFT SUB-ASSY, NO.3
13054CAMSHAFT SUB-ASSY, NO.4
13080GEAR ASSY, CAMSHAFT TIMING EXHAUST, LH
13506CHAIN SUB-ASSY
13507CHAIN SUB-ASSY, NO.2
13511CAMSHAFT
13512CAMSHAFT, NO.2
13540CGASKET(FOR CHAIN TENSIONER)
13550TENSIONER ASSY, CHAIN, NO.2
13560ATENSIONER ASSY, CHAIN, NO.3
13561DAMPER, CHAIN VIBRATION, NO.1
13711VALVE, INTAKE
13711ESEAL, INTAKE VALVE STEM OIL
13715VALVE, EXHAUST
13715ASEAL, EXHAUST VALVE STEM OIL
13716CAP, VALVE STEM
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13750ADJUSTER ASSY, VALVE LASH
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
9011912370
main90119-12370
9025010030
main90250-10030
9155180616
main91551-80616
9155180630
main91551-80630
9167180820
main91671-80820
9167180830
main91671-80830
32 parts on this diagram · 1 diagram in section
