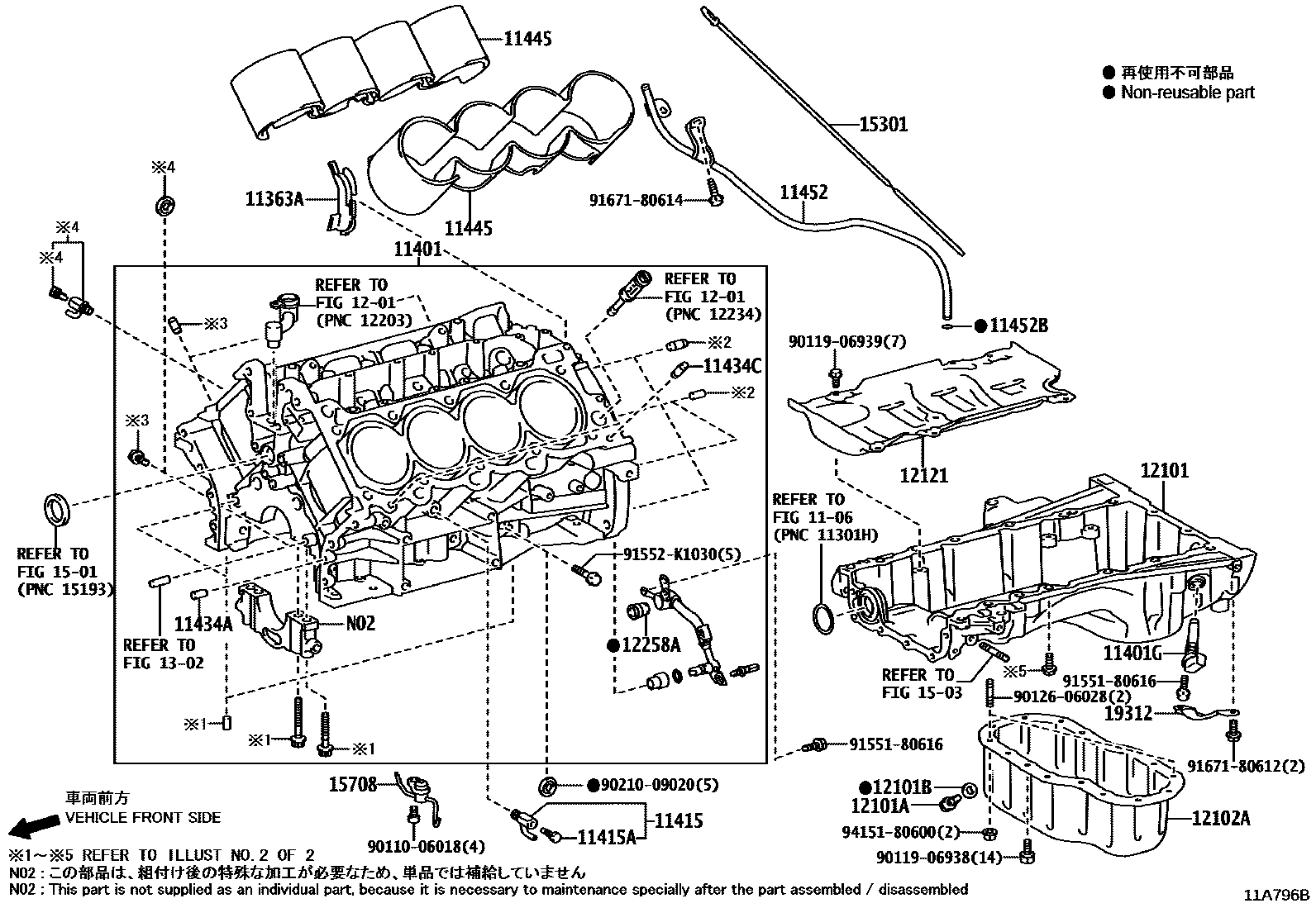

CYLINDER BLOCK

0001 1���������� 0002 1������������

1106

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-38010i3URFE..URJ201201509

11401BLOCK SUB-ASSY, CYLINDER

main11401-39817i3URFE..URJ201201509

11401GSENSOR, CRANK POSITION

main90919-05071i3URFE..URJ201201509

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09129i3URFE..URJ201201509

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i3URFE..URJ201201509

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097i3URFE..URJ201201509

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120i3URFE..URJ201201509

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-38010i3URFE..URJ201201509

11452GUIDE, OIL LEVEL GAGE

main11452-38081i3URFE..URJ201201509

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i3URFE..URJ201201509

1201

12101PAN SUB-ASSY, OIL

main12111-0S021i3URFE..URJ201201509

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i3URFE..URJ201201509

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i3URFE..URJ201201509

12102APAN SUB-ASSY, OIL, NO.2

main12102-38010i3URFE..URJ201201509

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-38070i3URFE..URJ201201509

12258AGASKET, OIL RETURN PIPE

main12269-38010i3URFE..URJ201201509

1302

1501

1503

15301GAGE SUB-ASSY, OIL LEVEL

main15301-38062i3URFE..URJ201201509

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-38010i3URFE..URJ201201509

19312PROTECTOR, CRANK POSITION SENSOR

main19312-38010i3URFE..URJ201201509

9011006018

main90110-06018

9011906938

main90119-06938

9011906939

main90119-06939

9012606028

main90126-06028

9021009020

main90210-09020

9155180616

main91551-80616

91552K1030

main91552-K1030

9167180612

main91671-80612

9167180614

main91671-80614

9415180600

main94151-80600

34 parts on this diagram · 2 diagrams in section
