CYLINDER HEAD
11103CHOUSING SUB-ASSY, CAMSHAFT, RH
11104AHOUSING SUB-ASSY, CAMSHAFT, LH
11115APIN, RING
11116GASKET, CYLINDER HEAD, NO.2
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11117KPLUG, W/HEAD STRAIGHT SCREW, LH NO.1
11117LPLUG, W/HEAD STRAIGHT SCREW, LH NO.2
11117MGASKET(FOR WATER HOLE NO.2)
11117NGASKET(FOR CYLINDER HEAD SCREW PLUG NO.2)
11122BBUSH, INTAKE VALVE GUIDE, NO.2
11135ASEAT, EXHAUST VALVE, NO.2
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
11151EBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1)
11151GPIN, STRAIGHT(FOR CAMSHAFT HOUSING RH)
11153ABOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1)
11153CPIN, STRAIGHT(FOR CAMSHAFT HOUSING LH)
11153DPIN, RING(FOR CAMSHAFT BEARING CAP SETTING LH)
11159FGASKET, CAMSHAFT BEARING CAP OIL HOLE, RH
11159GGASKET, CAMSHAFT BEARING CAP OIL HOLE, LH
12281AHANGER, ENGINE, NO.1
12282DHANGER, ENGINE, NO.2
9011914120
main90119-14120
9012608026
main90126-08026
9012608047
main90126-08047
9012608050
main90126-08050
9018010007
main90180-10007
9025411006
main90254-11006
9043010024
main90430-10024

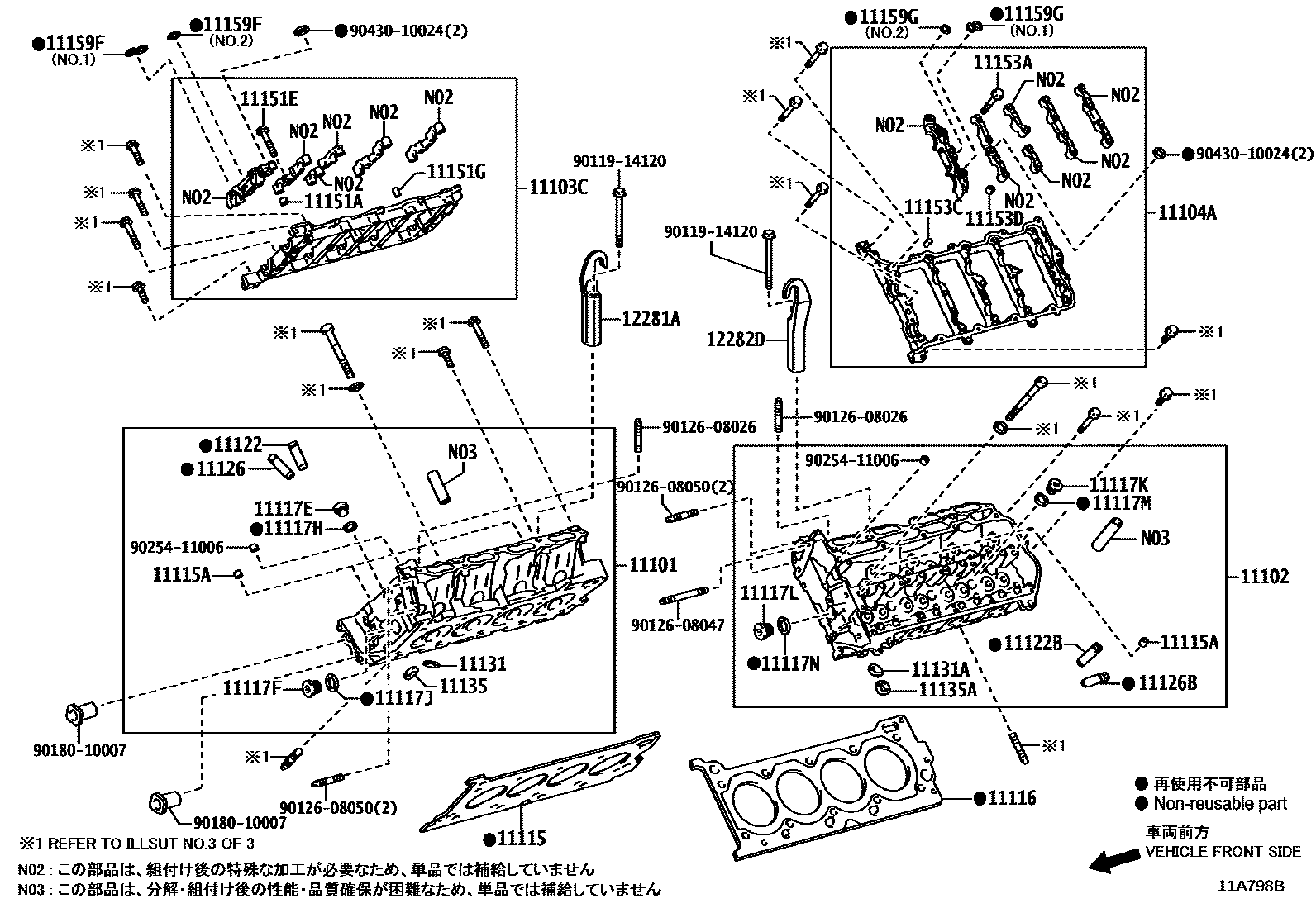

40 parts on this diagram · 3 diagrams in section
