STANDARD TOOL

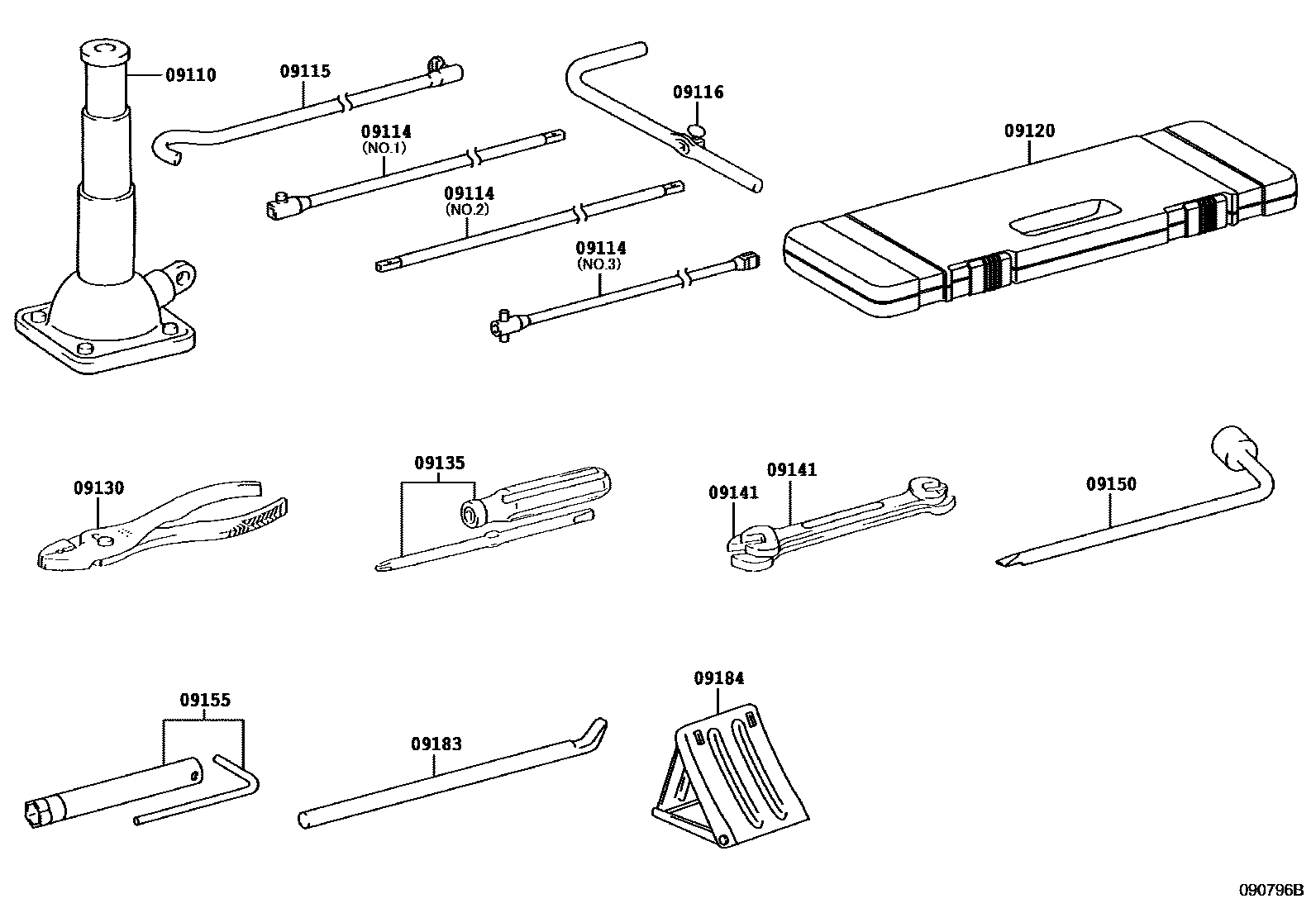

Parts diagram

09110JACK ASSY

main09111-60121i201509-201608

main09111-60122i201608

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-60070i201509

main09114-60080i201509

main09114-60090i201509

09115ROD SUB-ASSY, JACK HANDLE

main09115-35110i201509

09116LEVER, JACK HANDLE

main09116-35080i201509-202009

main09116-60020i202010

09120BAG, TOOL

main09120-60210i201509

09130PLIERS

main09130-50040i201509-202101

main99913-11500i202101

09135DRIVER, SCREW

main99915-10700i201509

09141SPANNER

main09141-60010i201509-202101

main09141-60020i201509-202101

main99914-10810i202101

main99914-11214i202101

09150WRENCH, HUB NUT BOX

main09150-60030i201509

09155WRENCH, SPARK PLUG

main09155-50010i201509-202012

main09155-74010i202012

09183WRENCH, WHEEL CAP

main09183-60050i201509

09184STOPPER, WHEEL

main09184-60010

12 parts on this diagram · 1 diagram in section
