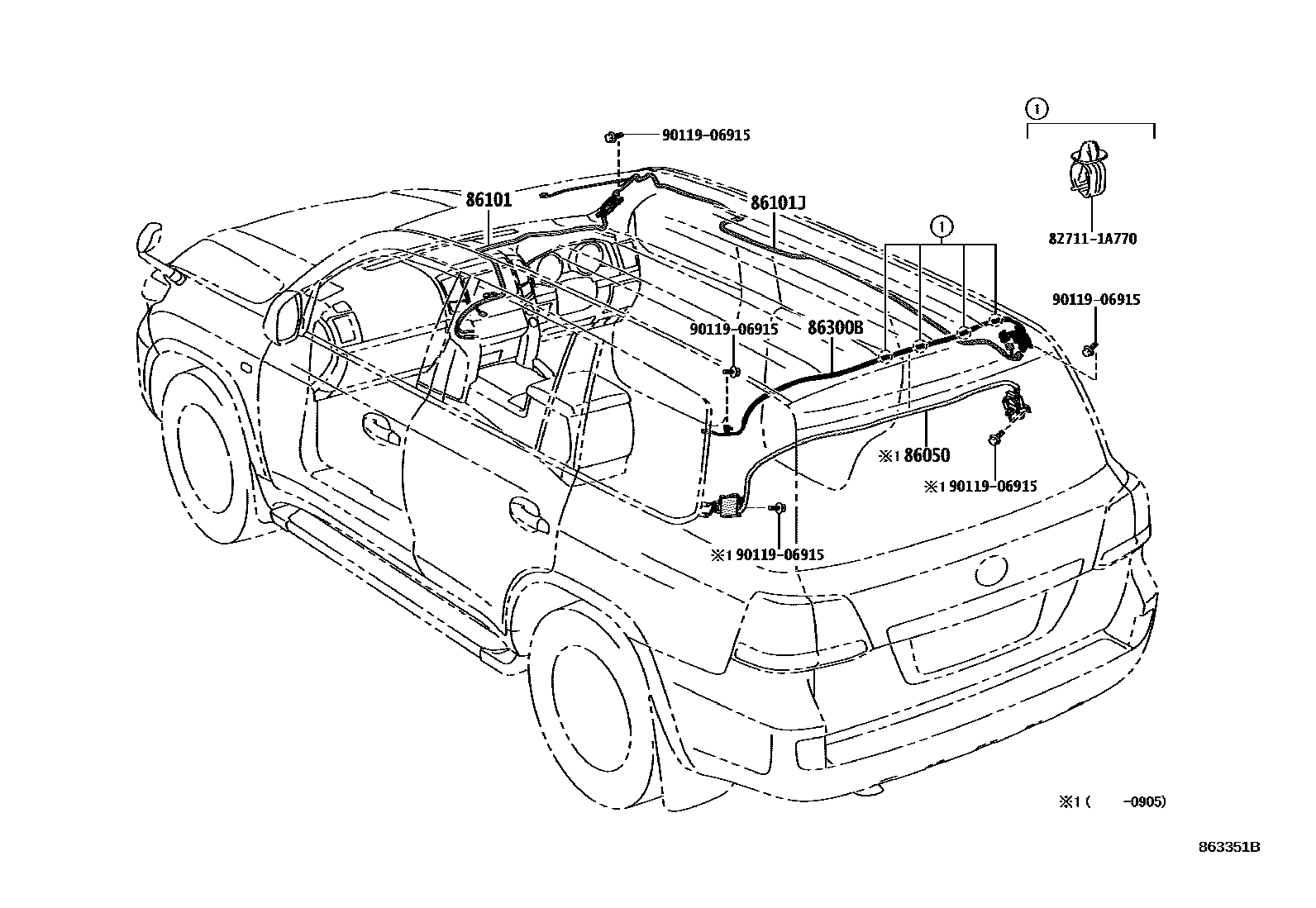

ANTENNA

0001 1 0002 1��(����������������) 0003 1

86050ANTENNA ASSY, TELEVISION

main86050-60180iURJ202..AX,ZX201508-202104

main86050-60220iUZJ200200709-200905

86101CORD SUB-ASSY, ANTENNA

main86101-60640iURJ202..AX,GX200905-201201

main86101-60L90iURJ202201508-202104

main86101-60660supersedes 86101-60650iUZJ200200709-200905

main86101-60F40iURJ202..ZX201201-201508

main86101-60N10supersedes 86101-60C60iURJ202..ZX201508-202104

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-60580iURJ202..AX,GX200905-201201

main86101-60E30iURJ202201201-201508

main86101-60K30iURJ202201508-202104

main86101-60610supersedes 86101-60590iUZJ200200709-200905

main86101-60630supersedes 86101-60590iUZJ200200709-200905

main86101-60E70supersedes 86101-60C40iURJ202..ZX201201-201508

main86101-60K50supersedes 86101-60C40iURJ202..ZX201508-202104

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-60560supersedes 86300-60570iURJ202..AX,GX200905-201201

main86300-60780iURJ202201201-201508

main86300-60850iURJ202201508-202104

main86300-60790supersedes 86300-60710iURJ202..ZX201201-201508

main86300-60860supersedes 86300-60710iURJ202..ZX201508-202104

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

9011906915

main90119-06915

6 parts on this diagram · 3 diagrams in section
