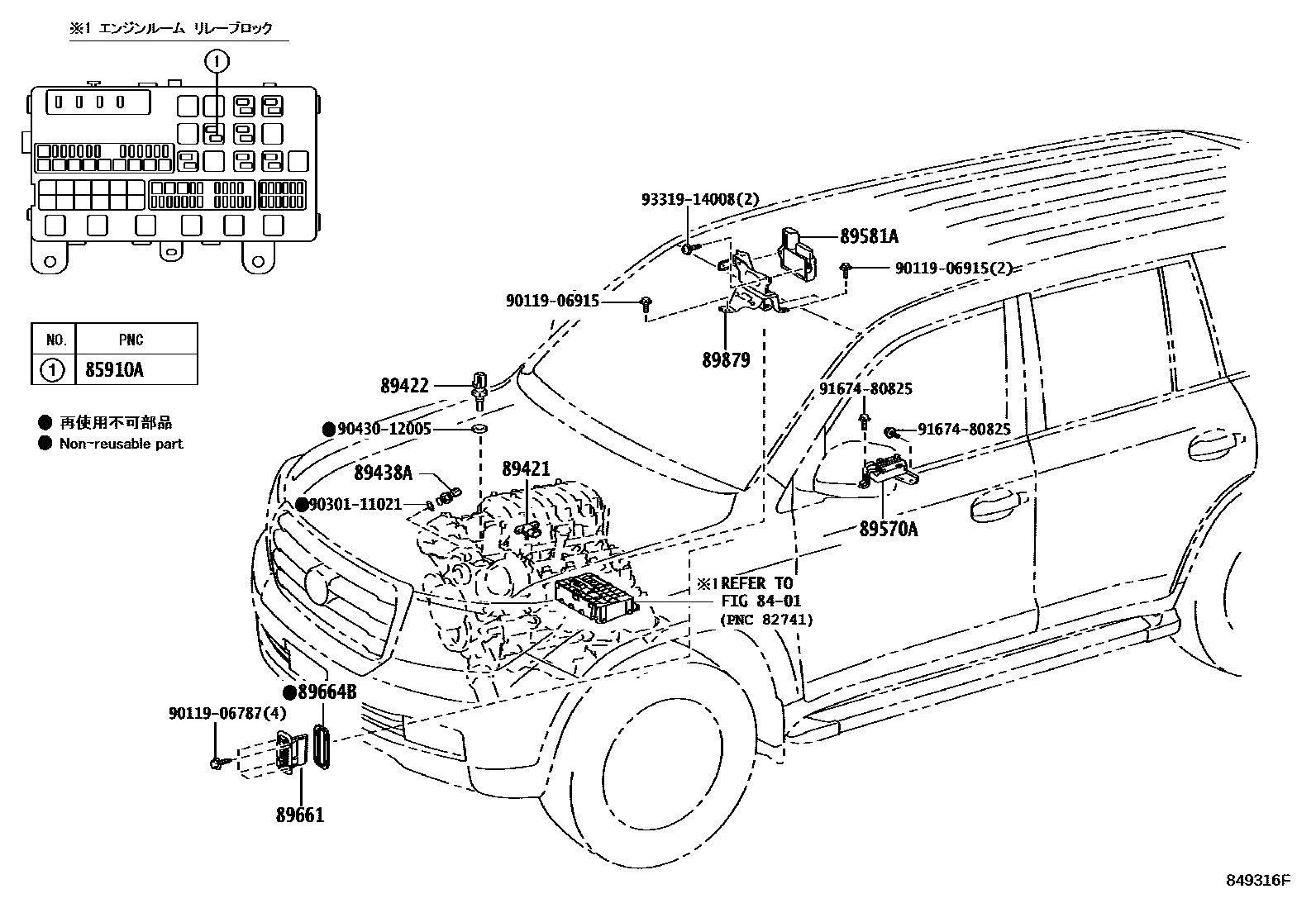

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02027iUZJ200200709-200905

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-47010iURJ202201508-202104

main89421-52010iURJ202200905-201008

main89421-71010iUZJ200200709-200905

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iURJ202200709-201201

89438ASWITCH, POWER STEERING OIL PRESSURE

main89448-34010iUZJ200200709-200802

main89448-34020iUZJ200200803-200905

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-60160iUZJ200200709-200905

89581ADRIVER, AIR INJECTION CONTROL

main89581-34041iUZJ200200709-200905

main89581-60010iURJ202201201-201508

89661COMPUTER, ENGINE CONTROL

main89661-60J00iUZJ200200709-200905

main89661-60L10iURJ202200905-201008

main89661-60N90iURJ202201008-201201

main89661-60Q40iURJ202201201-201508

main89661-60Z10iURJ202201508-201808

main89666-60J70iURJ202201808-202006

main89666-60R20iURJ202202006-202104

89664BSEAL, ENGINE CONTROL COMPUTER

main89664-34010iURJ202,UZJ200200709-201201

89879BRACKET, INJECTOR DRIVER

main89589-34020iUZJ200200709-200905

9011906787

main90119-06787

9011906915

main90119-06915

9030111021

main90301-11021

9043012005

main90430-12005

9167480825

main91674-80825

9331914008

main93319-14008

16 parts on this diagram · 4 diagrams in section
