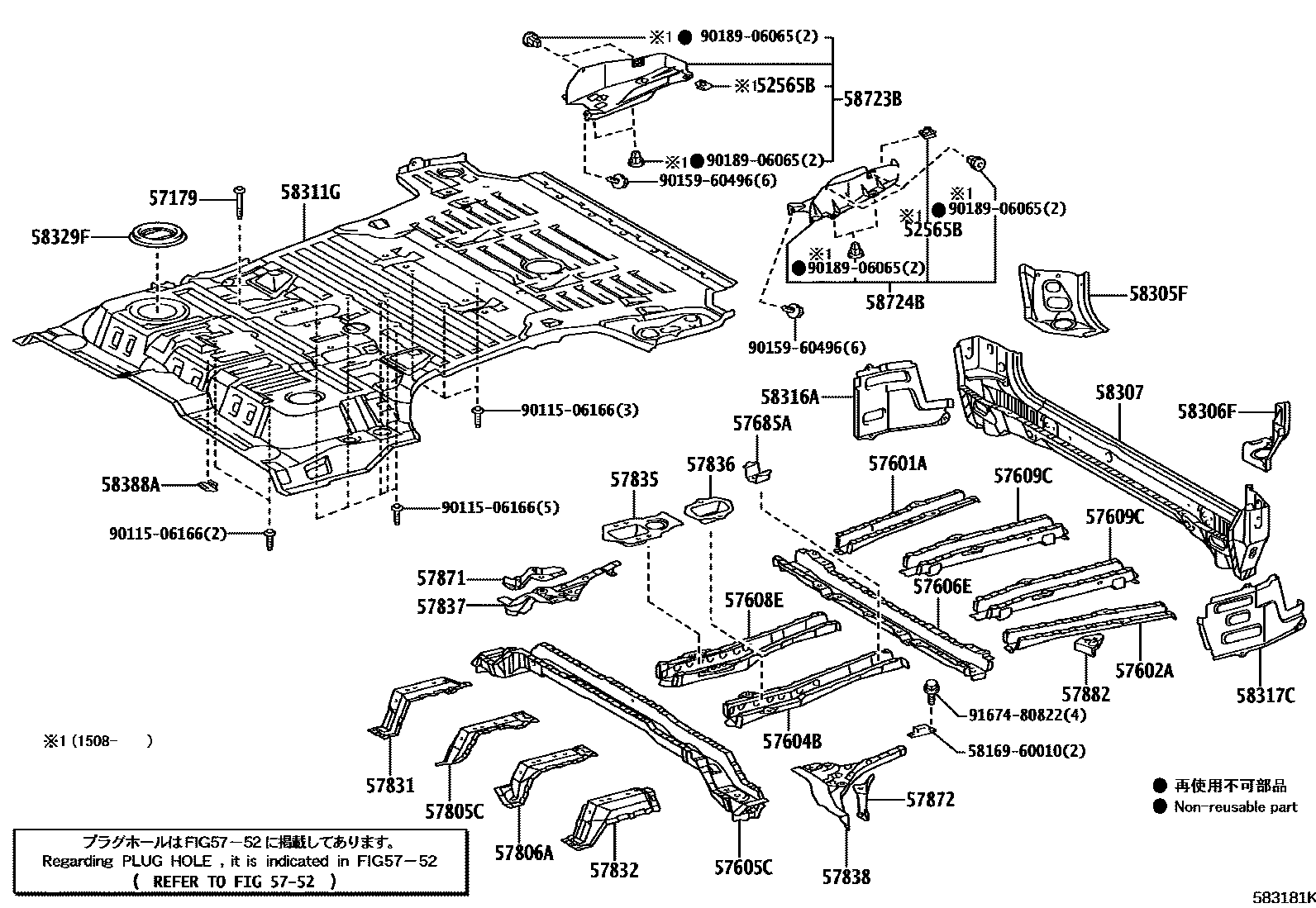

REAR FLOOR PANEL & REAR FLOOR MEMBER
52565BRETAINER, REAR BUMPER, LOWER
57179BOLT, FLOOR CROSSMEMBER
5752
57601AMEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57604BMEMBER SUB-ASSY, REAR FLOOR SIDE, NO.3
57605CMEMBER SUB-ASSY, REAR FLOOR CROSS
57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57608EREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, RH
57609CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5
57685ABRACKET, REAR FLOOR MOUNTING, NO.1 RH
57805CREINFORCEMENT SUB-ASSY, NO.1 SEAT LEG, REAR NO.1
57806AREINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.2
57831REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1
57832REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2
57835REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1
57836REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2
57837REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3
57838REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.4
57871PATCH, REAR NO.1 SEAT LEG, REAR NO.1
57872PATCH, REAR NO.1 SEAT LEG, REAR NO.2
57882REINFORCEMENT, BELT ANCHOR, NO.4
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311GPAN,REAR FLOOR
58316AEXTENSION, REAR FLOOR SIDE PANEL, REAR RH
58317CEXTENSION, REAR FLOOR SIDE PANEL, REAR LH
58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2
58388ABRACKET,REAR FLOOR PLATE
58723BPROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.1
58724BPROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.2
5816960010BRACKET, FUEL TUBE
main58169-60010
9011506166
main90115-06166
9015960496
main90159-60496
9018906065
main90189-06065
9167480822
main91674-80822
37 parts on this diagram · 1 diagram in section
