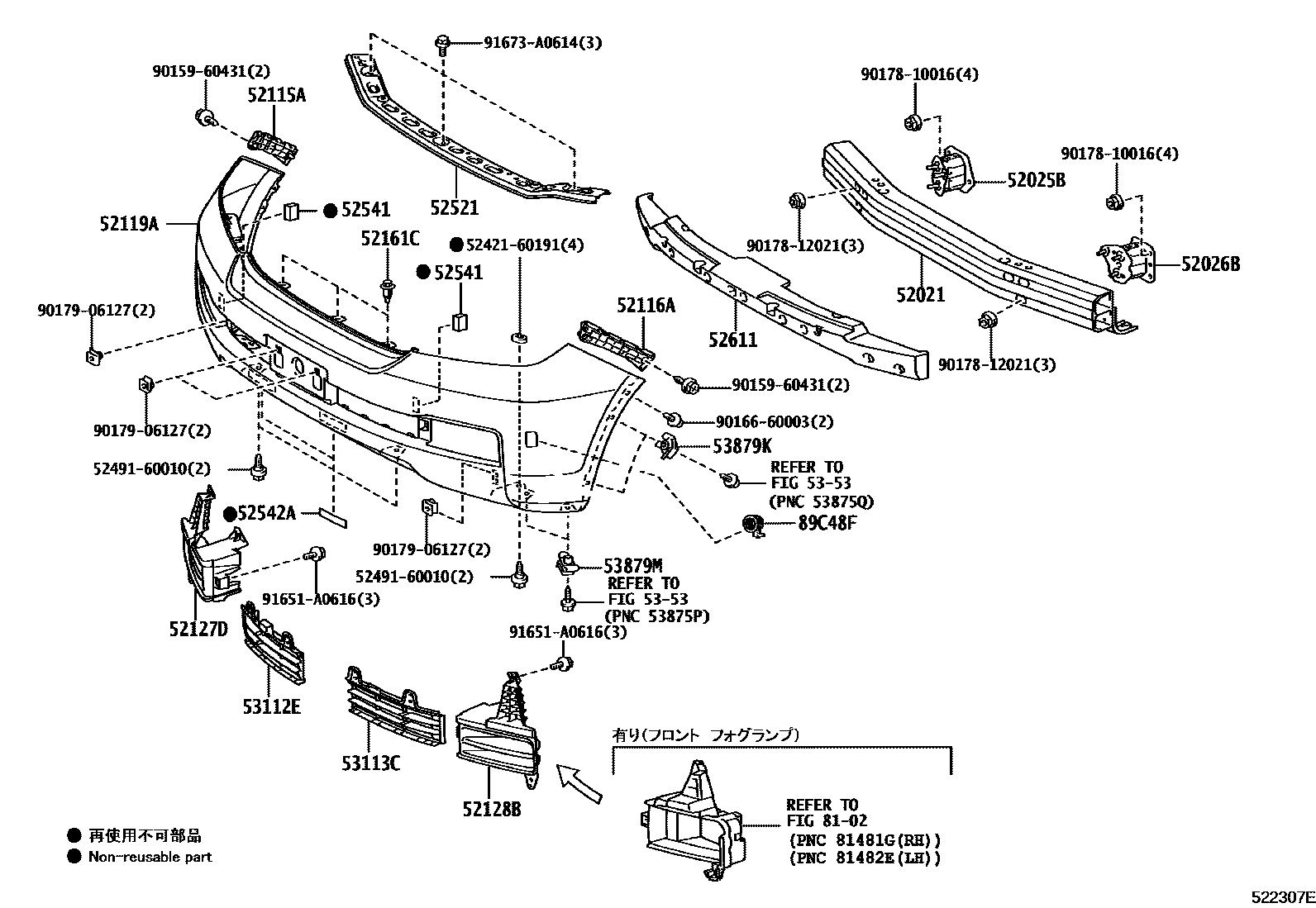

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-60140iURJ202201508-202104

52025BEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH

main52025-60030iUZJ200200709-200905

main52025-60031iURJ202201605-202104

52026BEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH

main52026-60030iURJ202201508-201604

main52026-60031iURJ202201605-202104

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-60140iUZJ200200709-200801

main52115-60141iUZJ200200802-200905

main52115-60250iURJ202201508-202104

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-60180iUZJ200200709-200801

main52116-60181iUZJ200200802-200905

main52116-60250iURJ202201508-202104

52119ACOVER, FRONT BUMPER

main52119-60B80-A1iURJ202,UZJ200..AX,ZX200709-201201

WHITE PEARL CS.,070

sub52119-60992

main52119-60B80-B0iURJ202,UZJ200..AX,ZX200709-201201

SILVER ME.,1F7

sub52119-60992

main52119-60B80-B1iURJ202,UZJ200..AX,ZX200709-201201

GRAY ME.,1G3

sub52119-60992

main52119-60B80-C0iURJ202,UZJ200..AX,ZX200709-201201

BLACK,202

sub52119-60992

main52119-60B80-D0iURJ202,UZJ200..AX,ZX200709-201201

DK. RED M.M.,3Q3

sub52119-60992

main52119-60B80-F0iURJ202,UZJ200..AX,ZX200709-201201

GOLD M.M.,5A5

sub52119-60992

main52119-60B80-G0iURJ202,UZJ200..AX,ZX200709-201201

GREEN M.M.,6V2

sub52119-60992

main52119-60C10-F0iURJ202..GX201008-201201

GOLD M.M.,5A5

sub52119-60988

main52119-60C10-G0iURJ202..GX201008-201201

GREEN M.M.,6V2

sub52119-60988

main52119-60B20-A1iURJ202..ZX200905-201201

sub52119-60990

main52119-60B20-B0iURJ202..ZX200905-201201

sub52119-60990

main52119-60B20-B1iURJ202..ZX200905-201201

sub52119-60990

main52119-60B20-C0iURJ202..ZX200905-201201

sub52119-60990

main52119-60B20-D0iURJ202..ZX200905-201201

sub52119-60990

main52119-60B20-F0iURJ202..ZX200905-201201

sub52119-60990

main52119-60B20-G0iURJ202..ZX200905-201201

sub52119-60990

main52119-60J00-A1iURJ202..ZX201201-201508

sub52119-6A958

main52119-60J00-B0iURJ202..ZX201201-201508

sub52119-6A958

main52119-60J00-B1iURJ202..ZX201201-201508

sub52119-6A958

main52119-60J00-C0iURJ202..ZX201201-201508

sub52119-6A958

main52119-60J00-C1iURJ202..ZX201201-201508

sub52119-6A958

main52119-60J00-D0iURJ202..ZX201201-201508

sub52119-6A958

main52119-60J00-E1iURJ202..ZX201201-201508

sub52119-6A958

main52119-60M60-A1supersedes 52119-60M50-A1iURJ202..GX201508-202104

sub52119-6B949

main52119-60M60-B0supersedes 52119-60M50-B1iURJ202..GX201508-202104

sub52119-6B949

main52119-60M60-B1supersedes 52119-60M50-B2iURJ202..GX201508-202104

sub52119-6B949

main52119-60M60-C0supersedes 52119-60M50-C0iURJ202..GX201508-202104

sub52119-6B949

main52119-60M60-C1supersedes 52119-60M50-C1iURJ202..GX201508-202104

sub52119-6B949

main52119-60M60-C2supersedes 52119-60M50-C2iURJ202..GX201908-202006

sub52119-6B949

main52119-60M60-D0supersedes 52119-60M50-D0iURJ202..GX201508-202104

sub52119-6B949

main52119-60M60-E0supersedes 52119-60M50-E0iURJ202..GX201508-201912

sub52119-6B949

main52119-60M60-E1supersedes 52119-60M50-E1iURJ202..GX201508-201908

sub52119-6B949

main52119-60M60-J0supersedes 52119-60M50-J0iURJ202..GX201508-201912

sub52119-6B949

main52119-60M80-A1supersedes 52119-60M70-A1iURJ202..AX,ZX201508-202104

sub52119-6B948

main52119-60M80-B0supersedes 52119-60M70-B0iURJ202..AX,ZX201508-202104

sub52119-6B948

main52119-60M80-B1supersedes 52119-60M70-B1iURJ202..AX,ZX201508-202104

sub52119-6B948

main52119-60M80-C0supersedes 52119-60M70-C0iURJ202..AX,ZX201508-202104

sub52119-6B948

main52119-60M80-C1supersedes 52119-60M70-C1iURJ202..AX,ZX201508-202104

sub52119-6B948

main52119-60M80-C2supersedes 52119-60M70-C2iURJ202..AX,ZX201908-202006

sub52119-6B948

main52119-60M80-D0supersedes 52119-60M70-D0iURJ202..AX,ZX201508-202104

sub52119-6B948

main52119-60M80-E0supersedes 52119-60M70-E0iURJ202..AX,ZX201508-201912

sub52119-6B948

main52119-60M80-E1supersedes 52119-60M70-E1iURJ202..AX,ZX201508-201908

sub52119-6B948

main52119-60M80-J0supersedes 52119-60M70-J0iURJ202..AX,ZX201508-201912

sub52119-6B948

52127DCOVER, FRONT BUMPER HOLE, RH

main52030-60090iURJ202..AX,ZX201201-201508

sub52030-60901

main52127-60200supersedes 52127-60100iURJ202..AX,ZX201508-202104

52128BCOVER, FRONT BUMPER HOLE, LH

main52040-60080iURJ202..AX,ZX201201-201508

sub52040-60901

main52128-60200supersedes 52128-60110iURJ202..AX,ZX201508-202104

52161CPIECE, FRONT BUMPER

main52161-16010×3iUZJ200200709-200905

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-60080iUZJ200200709-200905

main52521-60130iURJ202201201-201508

main52521-60170iURJ202201508-202104

52541PROTECTOR, FRONT BUMPER

main52541-60050×2iUZJ200200709-200905

52542APROTECTOR, FRONT BUMPER, NO.2

main52542-60020×2iUZJ200200709-200905

52611ABSORBER, FRONT BUMPER ENERGY

main52611-60050iUZJ200200709-200905

main52611-60090iURJ202201201-201508

main52611-60130iURJ202201808-202104

main52611-60140iURJ202201508-201808

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-60040iUZJ200200709-200905

main53112-60110iURJ202201201-201508

main53112-60220iURJ202..GX201508-202104

53113CGRILLE, RADIATOR, LOWER LH

main53113-60030iURJ202200709-201201

main53113-60080iURJ202..GX201508-202104

5353

53879KRETAINER, FRONT FENDER LINER

main53879-58010×4iURJ202200709-201201

53879MRETAINER, FRONT FENDER LINER

main90467-05138×4iUZJ200200709-200905

8102

89C48FRETAINER, ULTRASONIC SENSOR, FRONT SIDE

main89348-33060-A2×2iURJ202,UZJ200..AX,ZX200709-201201

main89348-33060-B4×2iURJ202,UZJ200..AX,ZX200709-201201

SILVER ME.,1F7

main89348-33060-B5×2iURJ202,UZJ200..AX,ZX200709-201201

GRAY ME.,1G3

main89348-33060-C0×2iURJ202,UZJ200..AX,ZX200709-201201

BLACK,202

main89348-33060-D2×2iURJ202,UZJ200..AX,ZX200709-201201

main89348-33060-F1×2iURJ202,UZJ200..AX,ZX200709-201201

GOLD M.M.,5A5

main89348-33060-G2×2iURJ202,UZJ200..AX,ZX200709-201201

GREEN M.M.,6V2

main89348-71010-A1×2iURJ202..AX,ZX201201-201508

WHITE PEARL CS.,070

main89348-71010-B5×2iURJ202..AX,ZX201201-201508

SILVER ME.,1F7

main89348-71010-B6×2iURJ202..AX,ZX201201-201508

GRAY ME.,1G3

main89348-71010-C0×2iURJ202..AX,ZX201201-201508

BLACK,202

main89348-71010-C3×2iURJ202..AX,ZX201201-201508

ATTITUDE BLACK MC.,218

main89348-71010-D0×2iURJ202..AX,ZX201201-201508

DK. RED M.M.,3Q3

main89348-71010-E4×2iURJ202..AX,ZX201201-201508

BEIGE M.M.,4R3

main89348-71010-G2×2iURJ202..ZX201201-201508

5242160191FILLER, FRONT BUMPER MOULDING, RH

main52421-60191

5249160010BOLT, BUMPER PAD

main52491-60010

9015960431

main90159-60431

9016660003

main90166-60003

9017810016

main90178-10016

9017812021

main90178-12021

9017906127

main90179-06127

91651A0616

main91651-A0616

91673A0614

main91673-A0614

29 parts on this diagram · 3 diagrams in section
