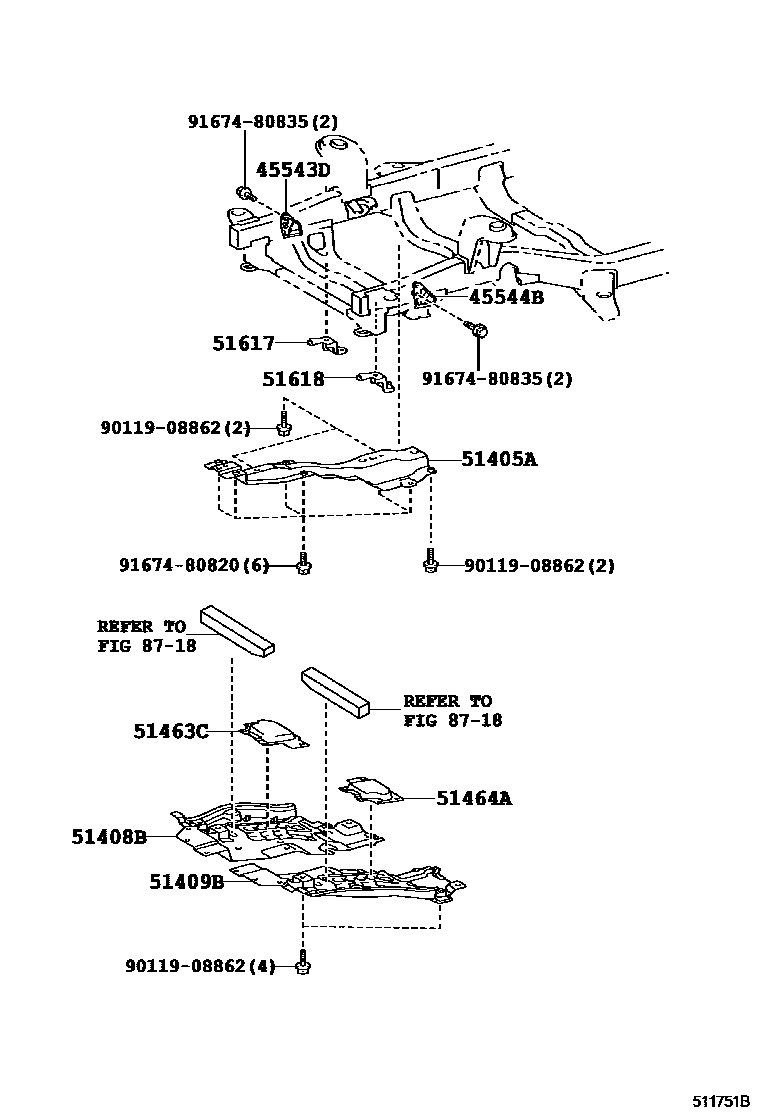

SUSPENSION CROSSMEMBER & UNDER COVER

45543DPROTECTOR, STEERING RACK BOOT, RH

main45543-60020iUZJ200200709-202104

45544BPROTECTOR, STEERING RACK BOOT, LH

main45544-60020iUZJ200200709-202104

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-60200iUZJ200200709-201201

sub51405-60250

main51405-60250iURJ202201201-202104

51408BCOVER SUB-ASSY, ENGINE UNDER, RH

main51408-60050iUZJ200200709-202104

51409BCOVER SUB-ASSY, ENGINE UNDER, LH

main51409-60050iUZJ200200709-201201

sub51409-60100

main51409-60100iURJ202201201-202104

51463CSILENCER, ENGINE UNDER COVER, RH

main51477-60010iUZJ200200709-202104

51464ASILENCER, ENGINE UNDER COVER, LH

main51478-60040iUZJ200200709-202104

51617GUARD, FRONT DIFFERENTIAL SUPPORT, RH

main51617-60020iUZJ200200709-202104

51618GUARD, FRONT DIFFERENTIAL SUPPORT, LH

main51618-60020iUZJ200200709-202104

8718

9011908862

main90119-08862

9167480820

main91674-80820

9167480835

main91674-80835

13 parts on this diagram · 1 diagram in section
