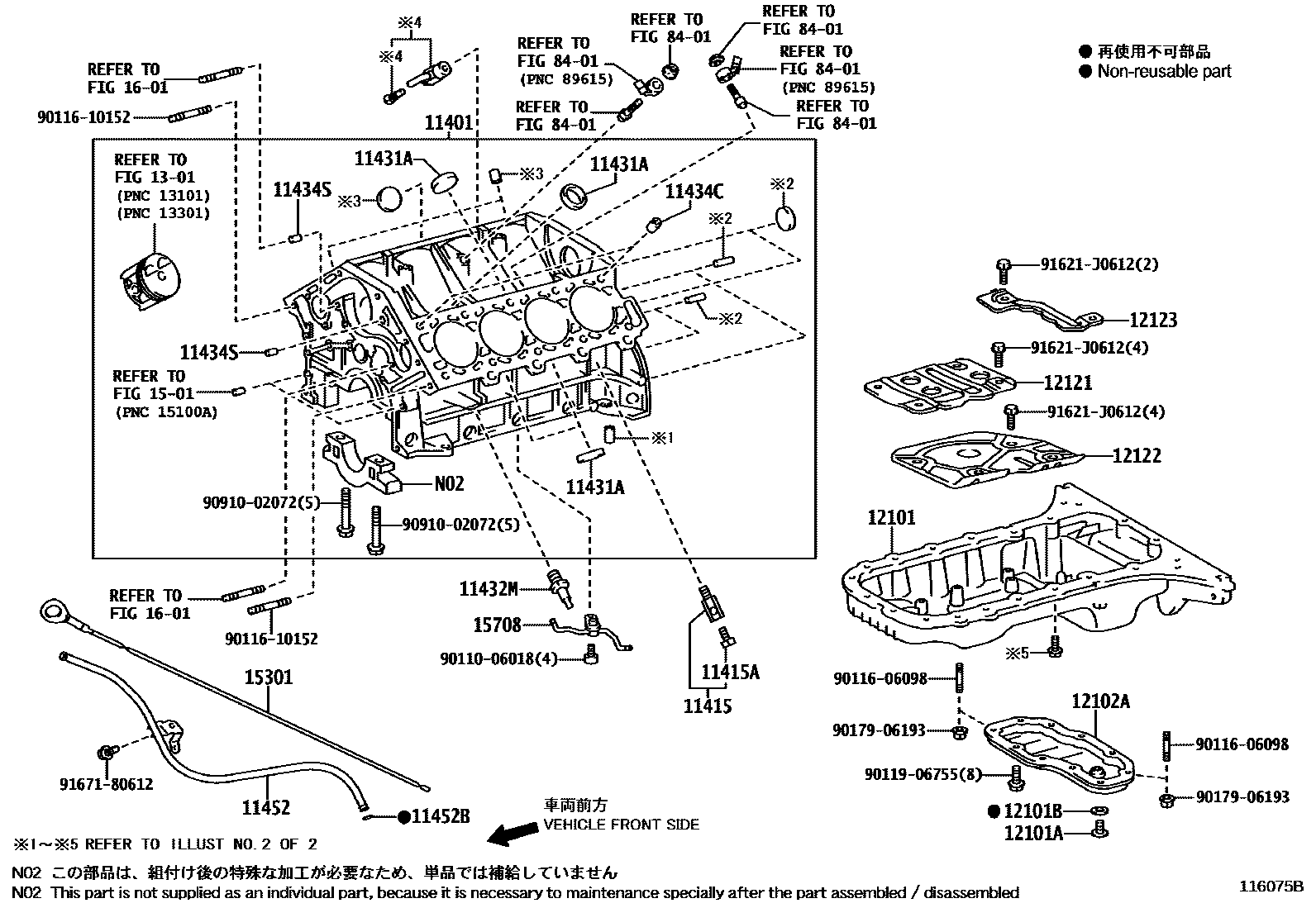

CYLINDER BLOCK
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
11432MUNION(FOR CYLINDER BLOCK)
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
11434SPIN, RING(FOR WATER PUMP SET)
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12102APAN SUB-ASSY, OIL, NO.2
12121PLATE, OIL PAN BAFFLE, NO.1
12122PLATE, OIL PAN BAFFLE, NO.2
12123PLATE, OIL PAN BAFFLE NO.3
1301
1501
15301GAGE SUB-ASSY, OIL LEVEL
15708NOZZLE SUB-ASSY, OIL, NO.1
1601
8401
9011006018
main90110-06018
9011606098
main90116-06098
9011610152
main90116-10152
9011906755
main90119-06755
9017906193
main90179-06193
9091002072
main90910-02072
91621J0612
main91621-J0612
9167180612
main91671-80612
30 parts on this diagram · 4 diagrams in section
