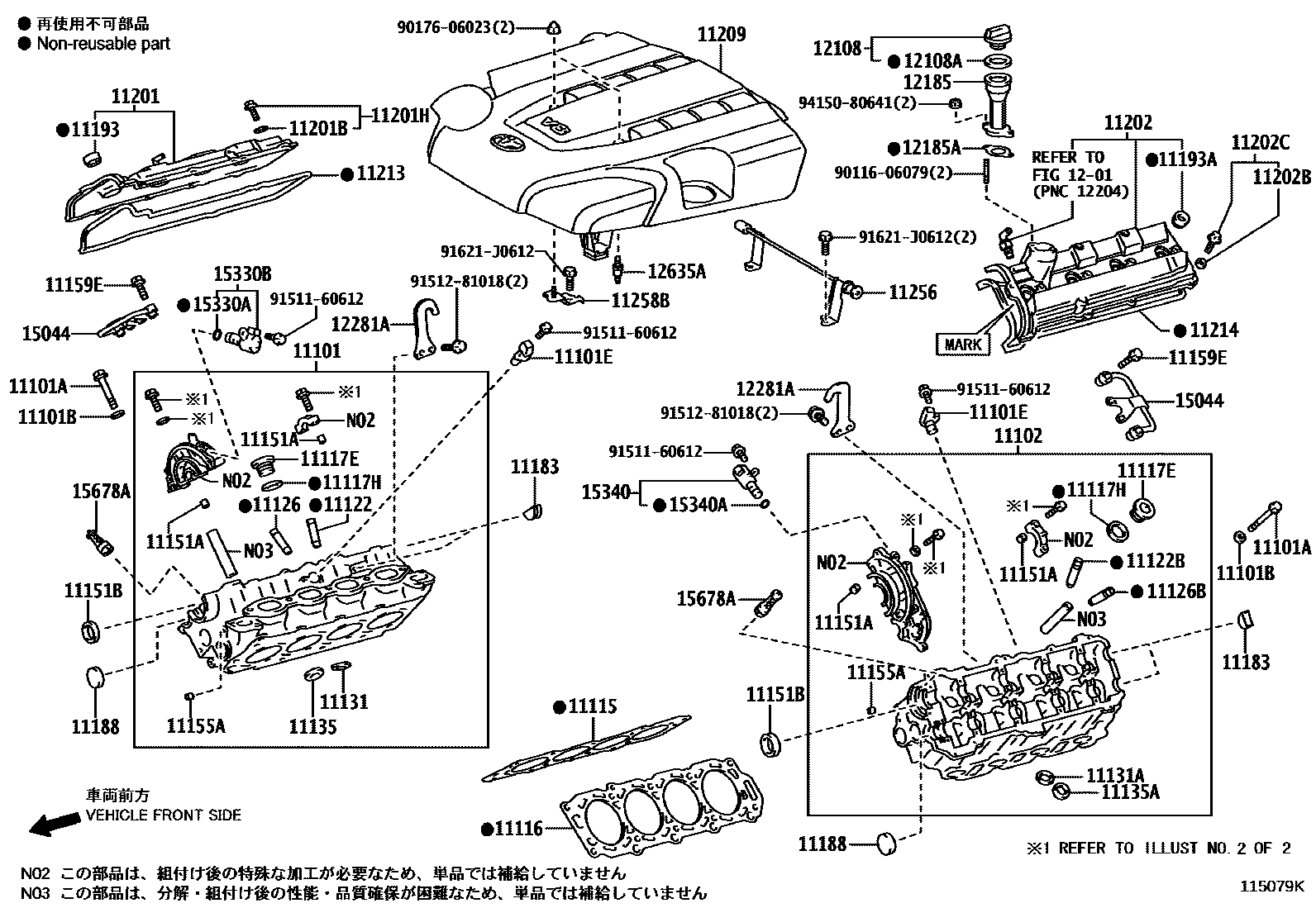

CYLINDER HEAD
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101ESENSOR, CAM POSITION
11116GASKET, CYLINDER HEAD, NO.2
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117HGASKET(FOR WATER HOLE)
11135SEAT, EXHAUST VALVE
11135ASEAT, EXHAUST VALVE, NO.2
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
11151BSEAL, OIL(FOR CAMSHAFT SETTING)
11155APIN, RING W/HEAD
11159EBOLT(FOR CAMSHAFT OIL FEED PIPE)
11183PLUG, SEMICIRCULAR
11188PLUG, CAMSHAFT HOUSING
11193GASKET, SPARK PLUG TUBE
11193AGASKET, SPARK PLUG TUBE, LH
11201COVER SUB-ASSY, CYLINDER HEAD
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11201HBOLT(FOR CYLINDER HEAD COVER)
11202BWASHER, SEAL(FOR CYLINDER HEAD COVER, LH)
11202CBOLT(FOR CYLINDER HEAD COVER LH)
11209COVER SUB-ASSY, V-BANK
11213GASKET, CYLINDER HEAD COVER
11214GASKET, CYLINDER HEAD COVER, NO.2
11256BRACKET, V-BANK COVER, NO.2
11258BBRACKET, V-BANK COVER, NO.4
1201
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12185HOUSING, OIL FILLER CAP
12185AGASKET, OIL FILLER CAP HOUSING
12281AHANGER, ENGINE, NO.1
12635AJOINT, ENGINE COVER
15044PIPE SUB-ASSY, CAMSHAFT OIL FEED
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
15330BVALVE ASSY, CAM TIMING OIL CONTROL, RH
15340VALVE ASSY, CAM TIMING OIL CONTROL, LH
15340ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
15678AFILTER, OIL CONTROL VALVE
9011606079
main90116-06079
9017606023
main90176-06023
9151160612
main91511-60612
9151281018
main91512-81018
91621J0612
main91621-J0612
9415080641
main94150-80641
55 parts on this diagram · 5 diagrams in section
