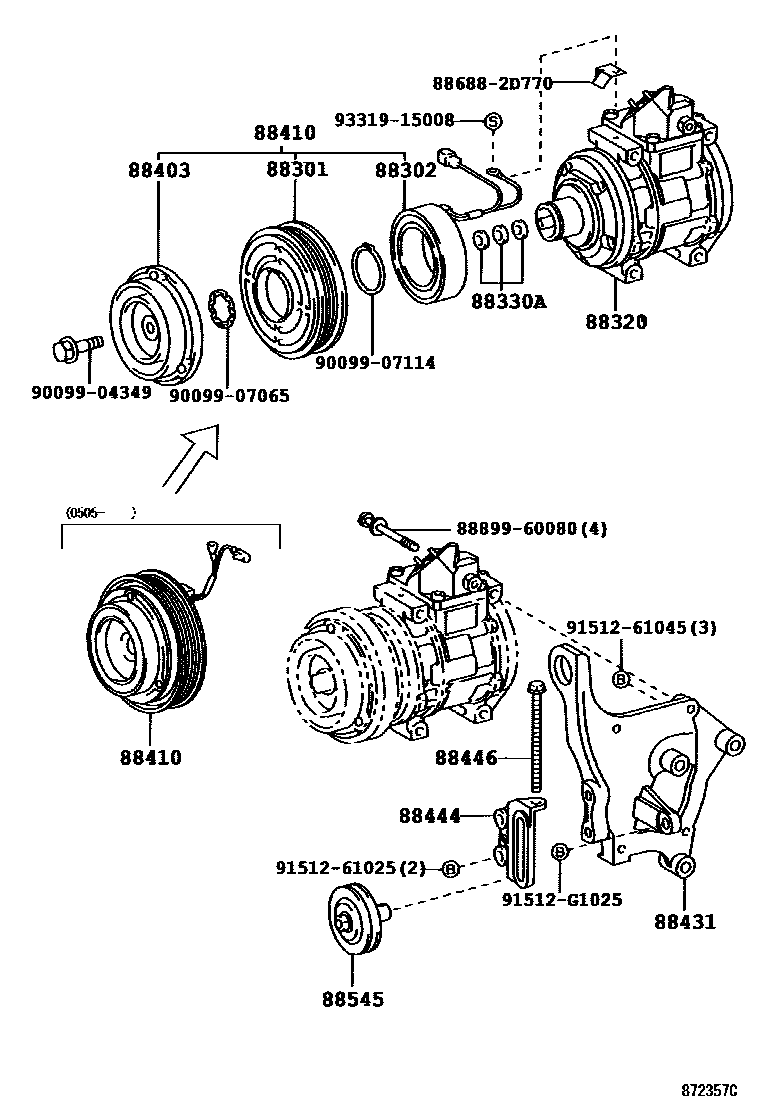

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-60070iUZJ100199801-200208

main88412-6A020iHDJ101199801-200208

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-2A030iHDJ101200208-200505

main88411-3A030iUZJ100199801-200208

88320COMPRESSOR ASSY, COOLER

main88320-60680iUZJ100199801-200208

main88320-60681iUZJ100200502-200505

main88320-60700iHDJ101199801-200208

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iHDJ101,UZJ100199801-200208

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-30290iHDJ101,UZJ100199801-200208

88410CLUTCH ASSY, MAGNET

main88410-50100iUZJ100199801-200111

main88410-60410iUZJ100200505

main88410-6A010iHDJ101200505

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-60260iHDJ101199801-200208

88444BRACKET, IDLE PULLEY

main88444-60120iHDJ101199801-200208

main88444-60160iHDJ101200702

88446BOLT, IDLE PULLEY

main88446-60030iHDJ101199801-200208

main90109-08253iHDJ101200208-200505

88545PULLEY ASSY, IDLE

main88440-60060iHDJ101200505

main88440-60070iHDJ101200208-200505

886882D770BRACKET, COOLER DIAPHRAGM

main88688-2D770

8889960080COVER, EVAPORATOR

main88899-60080

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9151261025

main91512-61025

9151261045

main91512-61045

91512G1025

main91512-G1025

9331915008

main93319-15008

19 parts on this diagram · 2 diagrams in section
