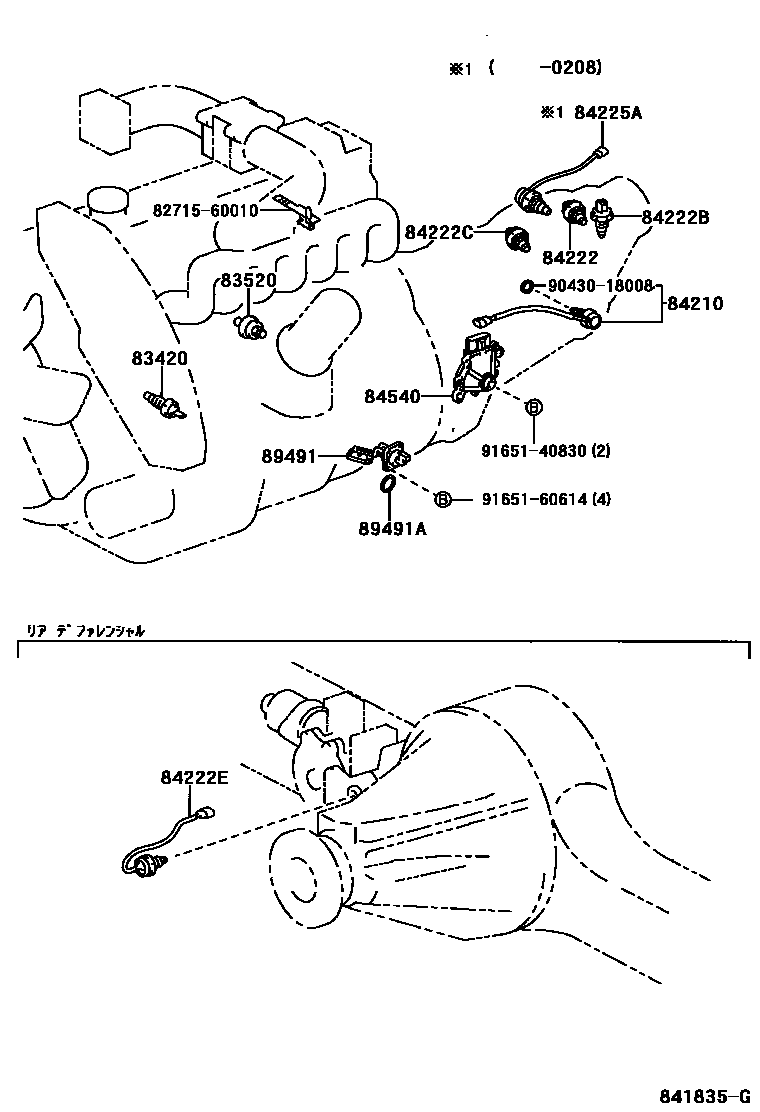

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iHDJ101199801-200708

main83420-20040iUZJ100199801-200708

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-35020iUZJ100199801-200409

sub83520-60050

main83520-35030iHDJ101199801-200409

sub83520-35031

main83520-35031iHDJ101200409-200505

sub83520-35032

main83520-60050iUZJ100200409-200505

sub83520-60051

84210SWITCH ASSY, BACK-UP LAMP

main84210-60030iHDJ101..MTM199801-200308

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-12010iHDJ101,UZJ100199801-200708

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-60080iHDJ101,UZJ100..ATM199801-199909

sub84222-60081

main84222-60081iHDJ101,UZJ100..ATM199909-200708

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-12010iHDJ101,UZJ100199801-200708

84222ESWITCH, DIFFERENTIAL LOCK INDICATOR

main84222-60090iHDJ101,UZJ100199801-200708

84225ASWITCH, SHIFT POSITION

main84225-35010iHDJ101..MTM199801-200208

84540SWITCH ASSY, NEUTRAL START

main84540-51010iHDJ101,UZJ100200208-200708

main84540-65010iHDJ101,UZJ100..ATM199801-200208

89491SENSOR, ENGINE OIL LEVEL

main89491-60060iHDJ101199801-200505

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iHDJ101199801-200505

8271560010BRACKET,WIRING HARNESS CLAMP

main82715-60010

9043018008

main90430-18008

9165140830

main91651-40830

9165160614

main91651-60614

15 parts on this diagram · 22 diagrams in section
