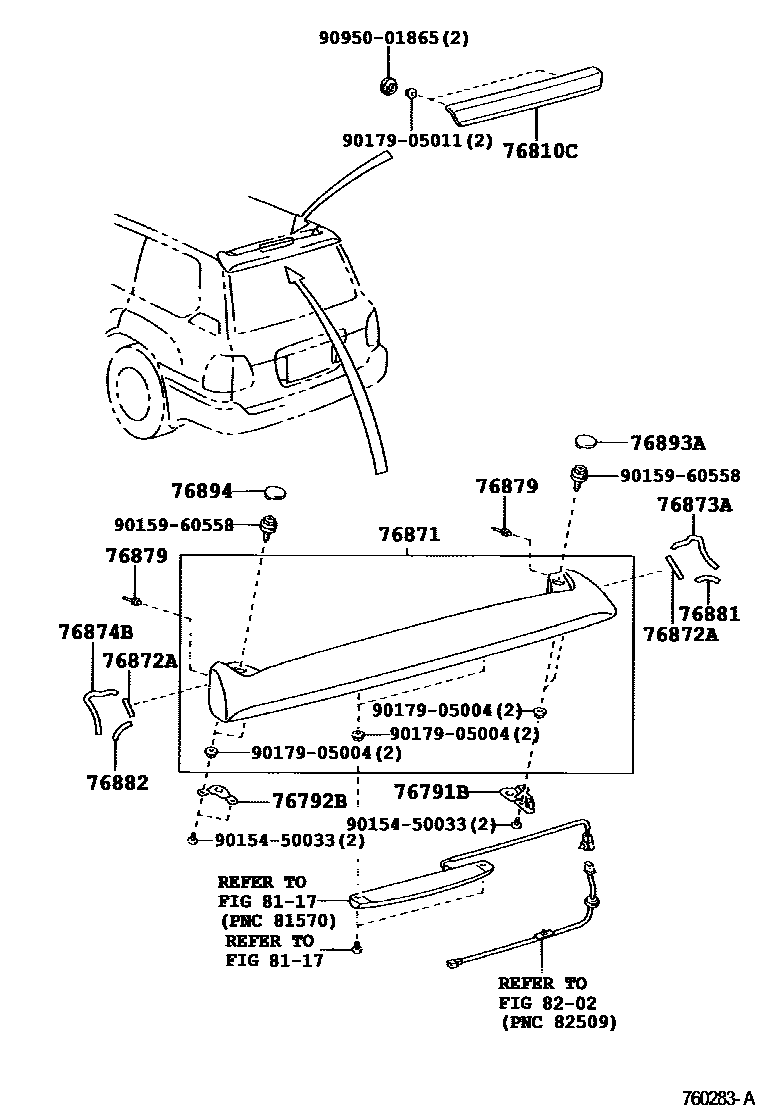

SPOILER & SIDE MUDGUARD
76791BBRACKET, REAR SPOILER
60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V),*(W)
76792BBRACKET, REAR SPOILER, NO.1 LH
60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V),*(W)
76810CGARNISH ASSY, BACK DOOR, OUTSIDE
60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V),*(W),WHITE PEARL CS.,062
sub76810-60010
sub76810-60010
sub76810-60010
60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V),*(W),SILVER ME.,1F7
sub76810-60010
sub76810-60010
sub76810-60010
60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V),*(W),BLACK,202
sub76810-60010
sub76810-60010
sub76810-60010
60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V),*(W),DK.RED MC.,3Q2
sub76810-60010
sub76810-60010
76871SPOILER, REAR
60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V),*(W),WHITE PEARL CS.,062
sub76871-60901
sub76871-60901
sub76871-60901
60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V),*(W),SILVER ME.,1F7
sub76871-60901
sub76871-60901
sub76871-60901
60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V),*(W),BLACK,202
sub76871-60901
sub76871-60901
sub76871-60901
60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V),*(W),DK.RED MC.,3Q2
sub76871-60901
sub76871-60901
76872APROTECTOR, REAR SPOILER, NO.1
60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V),*(W)
76873APROTECTOR, REAR SPOILER, RH
60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V),*(W)
76874BPROTECTOR, REAR SPOILER, LH
60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V),*(W)
76879CLIP, REAR SPOILER, NO.1
60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V),*(W)
76881PROTECTOR, REAR SPOILER SIDE, NO.1 RH
60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V),*(W)
76882PROTECTOR, REAR SPOILER SIDE, NO.1 LH
60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V),*(W)
76893ACOVER, REAR SPOILER, RH
WHITE PEARL CS.,070
60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V),*(W),WHITE PEARL CS.,062
WHITE PEARL CS.,062
60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V),*(W),SILVER ME.,1F7
SILVER ME.,1F7
60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V),*(W),BLACK,202
BLACK,202
60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V),*(W),DK.RED MC.,3Q2
DK.RED MC.,3Q2
BEIGE PEARL CS.,4R2
OLIVE M.M.,6T7
76894COVER, REAR SPOILER, LH
WHITE PEARL CS.,070
WHITE PEARL CS.,062
60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V),*(W),WHITE PEARL CS.,062
SILVER ME.,1F7
60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V),*(W),SILVER ME.,1F7
BLACK,202
60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V),*(W),BLACK,202
60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V),*(W),DK.RED MC.,3Q2
DK.RED MC.,3Q2
BEIGE PEARL CS.,4R2
OLIVE M.M.,6T7
8117
8202
9015450033
main90154-50033
9015960558
main90159-60558
9017905004
main90179-05004
9017905011
main90179-05011
9095001865
main90950-01865
19 parts on this diagram · 1 diagram in section
