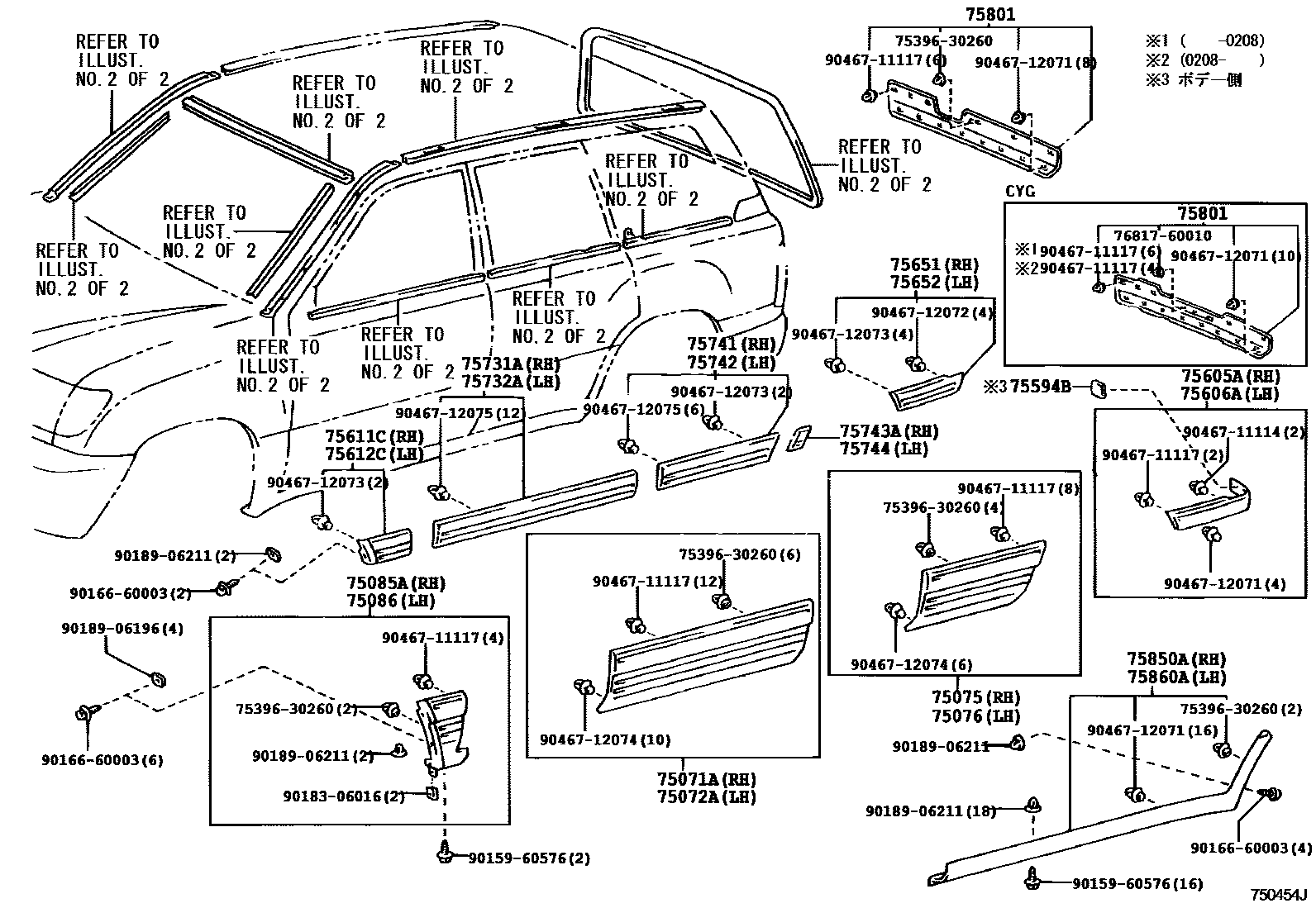

MOULDING
75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
WHITE PEARL CS.,062
GRAY ME.,056 ,1F7 ,4R3
GRAY ME.,1F7 ,4R3
SILVER ME.,1F7
DK. GRAY M.,1E9 ,6R4 ,8R3
DK. GRAY M.,202 ,3Q2
DK. GRAY M.,1E9 ,202 ,3Q2 ,6R4 ,8R3
OLIVE M.M.,6T7
75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
WHITE PEARL CS.,062
GRAY ME.,1F7 ,4R3
GRAY ME.,056 ,1F7 ,4R3
SILVER ME.,1F7
DK. GRAY M.,1E9 ,6R4 ,8R3
DK. GRAY M.,1E9 ,202 ,3Q2 ,6R4 ,8R3
DK. GRAY M.,202 ,3Q2
OLIVE M.M.,6T7
75075MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH
WHITE PEARL CS.,062
GRAY ME.,1F7 ,4R3
GRAY ME.,056 ,1F7 ,4R3
SILVER ME.,1F7
DK. GRAY M.,1E9 ,6R4 ,8R3
DK. GRAY M.,1E9 ,202 ,3Q2 ,6R4 ,8R3
DK. GRAY M.,202 ,3Q2
OLIVE M.M.,6T7
75076MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH
WHITE PEARL CS.,062
GRAY ME.,1F7 ,4R3
GRAY ME.,056 ,1F7 ,4R3
SILVER ME.,1F7
DK. GRAY M.,202 ,3Q2
DK. GRAY M.,1E9 ,6R4 ,8R3
DK. GRAY M.,1E9 ,202 ,3Q2 ,6R4 ,8R3
OLIVE M.M.,6T7
75085AMOULDING SUB-ASSY, FRONT FENDER WHEEL OPENING, RH
50TH ANNIVERSARY EDITION *(A),*(B),WHITE PEARL CS.,064
sub75085-60011
sub75085-60011
75086MOULDING SUB-ASSY, FRONT FENDER WHEEL OPENING, LH
50TH ANNIVERSARY EDITION *(A),*(B),WHITE PEARL CS.,064
sub75086-60011
sub75086-60011
75594BPAD, QUARTER GARNISH, RH
75605AMOULDING SUB-ASSY, QUARTER OUTSIDE, RH
WHITE PEARL CS.,062
GRAY ME.,1F7 ,4R3
GRAY ME.,056 ,1F7 ,4R3
SILVER ME.,1F7
DK. GRAY M.,1E9 ,6R4 ,8R3
DK. GRAY M.,1E9 ,202 ,3Q2 ,6R4 ,8R3
DK. GRAY M.,202 ,3Q2
OLIVE M.M.,6T7
75606AMOULDING SUB-ASSY, QUARTER OUTSIDE, LH
WHITE PEARL CS.,062
GRAY ME.,056 ,1F7 ,4R3
GRAY ME.,1F7 ,4R3
SILVER ME.,1F7
DK. GRAY M.,1E9 ,202 ,3Q2 ,6R4 ,8R3
DK. GRAY M.,202 ,3Q2
DK. GRAY M.,1E9 ,6R4 ,8R3
OLIVE M.M.,6T7
75611CMOULDING, FRONT FENDER, OUTSIDE RH
75612CMOULDING, FRONT FENDER, OUTSIDE LH
75651MOULDING, QUARTER, OUTSIDE RH
sub75651-60150
sub75651-60150
sub75651-60150
sub75651-60150
sub75651-60150
sub75651-60150
sub75651-60150
sub75651-60150
sub75651-60150
75652MOULDING, QUARTER, OUTSIDE LH
75731AMOULDING, FRONT DOOR, OUTSIDE RH
75732AMOULDING, FRONT DOOR, OUTSIDE LH
75741MOULDING, REAR DOOR, OUTSIDE RH
75742MOULDING, REAR DOOR, OUTSIDE LH
75743AMOULDING, REAR DOOR, OUTSIDE UPPER REAR RH
75744MOULDING, REAR DOOR, OUTSIDE UPPER REAR LH
75801MOULDING SUB-ASSY, BACK DOOR, OUTSIDE
sub75801-60041
WHITE PEARL CS.,062
SILVER ME.,1F7
DK. GRAY M.,202 ,3Q2
OLIVE M.M.,6T7
75850AMOULDING ASSY, BODY ROCKER PANEL, RH
WHITE PEARL CS.,062
GRAY ME.,056 ,1F7 ,4R3
GRAY ME.,1F7 ,4R3
SILVER ME.,1F7
DK. GRAY M.,1E9 ,202 ,3Q2 ,6R4 ,8R3
DK. GRAY M.,202 ,3Q2
DK. GRAY M.,1E9 ,6R4 ,8R3
OLIVE M.M.,6T7
75860AMOULDING ASSY, BODY ROCKER PANEL, LH
WHITE PEARL CS.,062
GRAY ME.,1F7 ,4R3
GRAY ME.,056 ,1F7 ,4R3
SILVER ME.,1F7
DK. GRAY M.,1E9 ,6R4 ,8R3
DK. GRAY M.,1E9 ,202 ,3Q2 ,6R4 ,8R3
DK. GRAY M.,202 ,3Q2
OLIVE M.M.,6T7
7539630260CLIP, OUTSIDE MOULDING, NO.2
main75396-30260
7681760010CLIP, BACK DOOR OUTSIDE GARNISH
main76817-60010
9015960576
main90159-60576
9016660003
main90166-60003
9018306016
main90183-06016
9018906196
main90189-06196
9018906211
main90189-06211
9046711114
main90467-11114
9046711117
main90467-11117
9046712071
main90467-12071
9046712072
main90467-12072
9046712073
main90467-12073
9046712074
main90467-12074
9046712075
main90467-12075
36 parts on this diagram · 2 diagrams in section
