INSIDE TRIM BOARD
62111BCLIP(FOR COWL SIDE TRIM)
62111CBOARD, COWL SIDE TRIM, RH
IVORY,TRIM40,41
MD.GRAY,TRIM1#
62112BOARD, COWL SIDE TRIM, LH
62199AHOLDER, FUSEE
62211GARNISH, FRONT PILLAR, RH
62212GARNISH, FRONT PILLAR, LH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
62411GARNISH, CENTER PILLAR, RH
OAK,TRIM4#
sub62410-60032
sub62410-60032
sub62410-60033
sub62410-60033
IVORY,TRIM0#
STONE,TRIM1#
62412GARNISH, CENTER PILLAR, LH
OAK,TRIM4#
sub62420-60032
sub62420-60032
sub62420-60033
sub62420-60033
IVORY,TRIM0#
STONE,TRIM1#
62413AGARNISH, CENTER PILLAR, LOWER RH
IVORY,TRIM0#
STONE,TRIM1#
62414AGARNISH, CENTER PILLAR, LOWER LH
IVORY,TRIM0#
STONE,TRIM1#
62421COVER, CENTER PILLAR GARNISH, RH
62422COVER, CENTER PILLAR GARNISH, LH
62471AGARNISH, ROOF SIDE, INNER RH
sub62470-60012
sub62470-60012
IVORY,TRIM40,41
MD.GRAY,TRIM1#
IVORY,TRIM40,41
MD.GRAY,TRIM1#
sub62470-60220
sub62470-60220
IVORY,TRIM0#
STONE,TRIM1#
62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)
62471JCLIP (FOR ROOF SIDE GARNISH)
62472AGARNISH, ROOF SIDE, INNER LH
IVORY,TRIM40,41
MD.GRAY,TRIM1#
IVORY,TRIM40,41
MD.GRAY,TRIM1#
sub62480-60092
sub62480-60092
sub62480-60160
sub62480-60160
IVORY,TRIM0#
STONE,TRIM1#
62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)
62534DBRACKET, QUARTER TRIM, NO.1, LH
62538CCOVER, QUARTER TRIM, HOLE
62594APOCKET, QUARTER TRIM, NO.1
62595APOCKET, QUARTER TRIM, NO.2
62671BOARD SUB-ASSY, QUARTER TRIM, LOWER
sub62603-60020
sub62603-60020
sub62603-60020
sub62603-60020
sub62603-60020
sub62603-60061
sub62603-60061
63429CBAND, ROOM RACK
64716DCOVER, DECK TRIM, REAR
64766COVER SUB-ASSY, QUARTER TRIM JACK
64974COVER, DECK TRIM POCKET
66991HOLDER, QUARTER TRIM CUP, RH
66991AHOLDER, QUARTER TRIM CUP, LH
67913BPLATE, FRONT DOOR SCUFF, RH
50TH ANNIVERSARY EDITION *(A),*(B),IVORY,TRIM40
60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V),STONE & BORDEAUX RED,TRIM1#
60TH SPECIAL EDITION *(W),STONE & BORDEAUX RED,TRIM1#
67914BPLATE, FRONT DOOR SCUFF, LH
50TH ANNIVERSARY EDITION *(A),*(B),IVORY,TRIM40
60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V),STONE & BORDEAUX RED,TRIM1#
60TH SPECIAL EDITION *(W),STONE & BORDEAUX RED,TRIM1#
67917CPLATE, REAR DOOR SCUFF, RH
50TH ANNIVERSARY EDITION *(A),*(B),IVORY,TRIM40
sub67917-60120
60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V),STONE & BORDEAUX RED,TRIM1#
sub67917-60120
60TH SPECIAL EDITION *(W),STONE & BORDEAUX RED,TRIM1#
67918BPLATE, REAR DOOR SCUFF, LH
50TH ANNIVERSARY EDITION *(A),*(B),IVORY,TRIM40
sub67918-60110
60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V),STONE & BORDEAUX RED,TRIM1#
sub67918-60110
60TH SPECIAL EDITION *(W),STONE & BORDEAUX RED,TRIM1#
sub67918-60100
67921ERETAINER, REAR DOOR SCUFF PLATE
67921FRETAINER, FRONT DOOR SCUFF PLATE
67923CCLAMP, DOOR SCUFF PLATE, NO.1
7152
7456
6777189104WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-89104
9016440105
main90164-40105
9016840068
main90168-40068
9018305016
main90183-05016
9046710161
main90467-10161
9046805125
main90468-05125
9356815012
main93568-15012
9356855014
main93568-55014

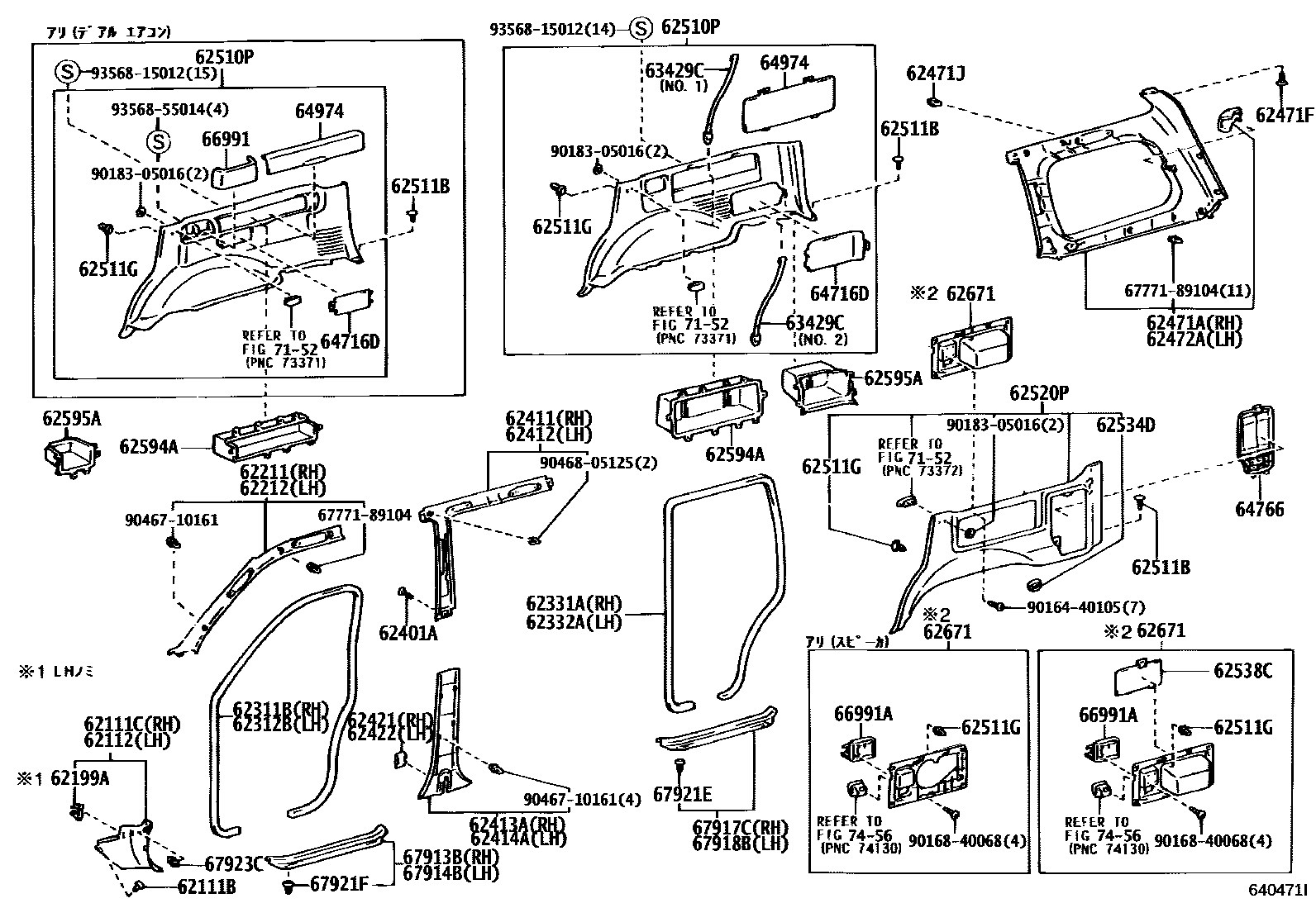

53 parts on this diagram · 3 diagrams in section
