SIDE MEMBER

0001 1������� 0002 1�������,RH 0003 1�������,LH 0004 1�������,RH 0005 1�������,LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-16010iHDJ101,UZJ100¥280199801-200505

53822BBRACKET, FRONT FENDER, REAR LH

main53821-16010iHDJ101,UZJ100¥280199801-200505

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-60320iHDJ101,UZJ100..VX¥22,800199801-200505

main61027-60330iHDJ101,UZJ100..CYG,VXL¥22,800199801-200505

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-60250iHDJ101,UZJ100..VX¥22,800199801-200505

main61028-60260iHDJ101,UZJ100¥22,800199801-200505

61113APANEL, SIDE, OUTER NO.2 RH

main61113-60040iHDJ101,UZJ100¥11,800199801-200708

61114BPANEL, SIDE, OUTER NO.2 LH

main61114-60020iHDJ101,UZJ100¥11,800199801-200708

61211RAIL, ROOF SIDE, OUTER RH

main61211-60040iHDJ101,UZJ100¥12,000199801-200505

61212RAIL, ROOF SIDE, OUTER LH

main61212-60040iHDJ101,UZJ100¥12,000199801-200505

61311BPILLAR, CENTER BODY, OUTER RH

main61311-60110iHDJ101,UZJ100..VX¥36,300199801-200505

main61311-60120iHDJ101,UZJ100..CYG,VXL¥36,300199801-200505

61312BPILLAR, CENTER BODY, OUTER LH

main61312-60160iUZJ100..VX¥36,300199801-200505

main61312-60170iHDJ101,UZJ100¥36,300199801-200505

61611PANEL, QUARTER, RH

main60161-60A00iHDJ101..VX¥97,200199801-200505

main60161-60A20iHDJ101;UZJ100..VX¥85,600199801-200707

main60161-60A50iHDJ101,UZJ100..VX¥85,600199801-200208

main60161-60A70iHDJ101,UZJ100..CYG,VXL¥85,600199801-200707

sub60161-60B20¥85,600

main60161-60B00iHDJ101..VX¥85,600199805-200707

main60161-60B10iHDJ101,UZJ100..VX199801-200208

sub60161-60B40¥85,600

main60161-60B50iHDJ101;UZJ100..VX¥85,600199801-200505

main60161-60B60iUZJ100..VXL¥85,600199801-200505

61612PANEL, QUARTER, LH

main60162-60A00iHDJ101;UZJ100..VX¥85,600199801-200708

main60162-60A30iUZJ100..CYG,VXL¥85,600199801-200707

sub60162-60B00¥85,600

main60162-60A80iUZJ100..VX¥85,600199801-200707

main60162-60A90iHDJ101,UZJ100..VX¥85,600199801-200208

sub60162-60B20¥85,600

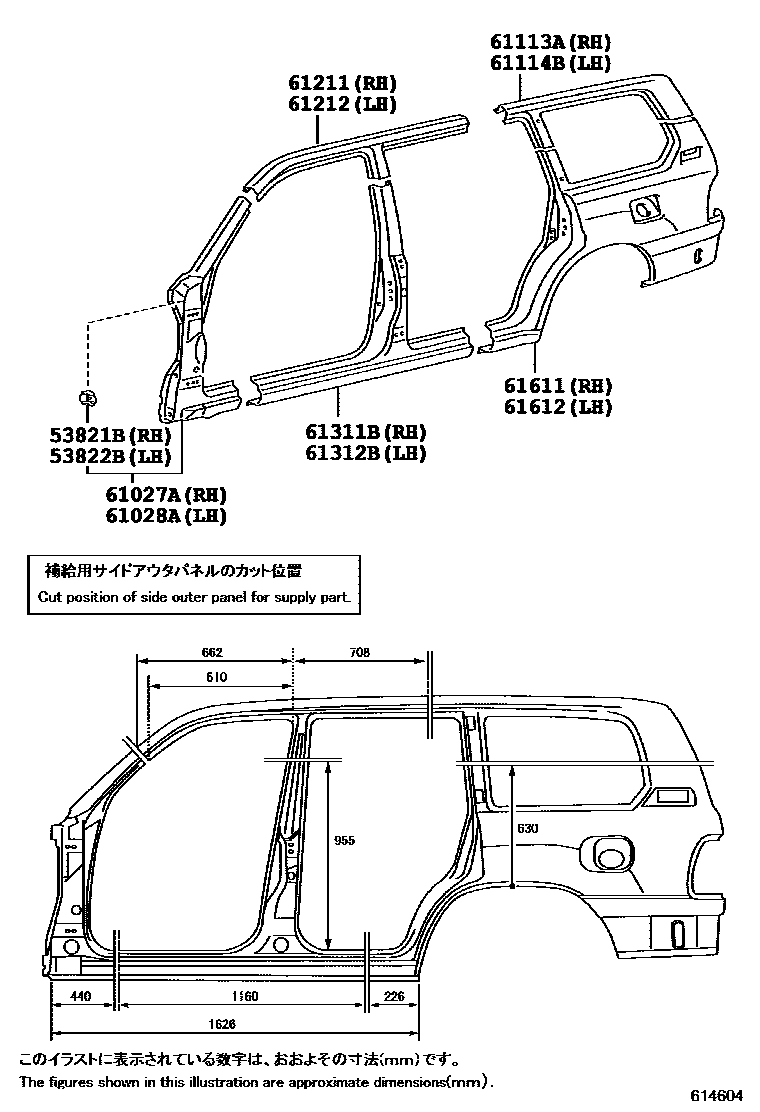

12 parts on this diagram · 5 diagrams in section
