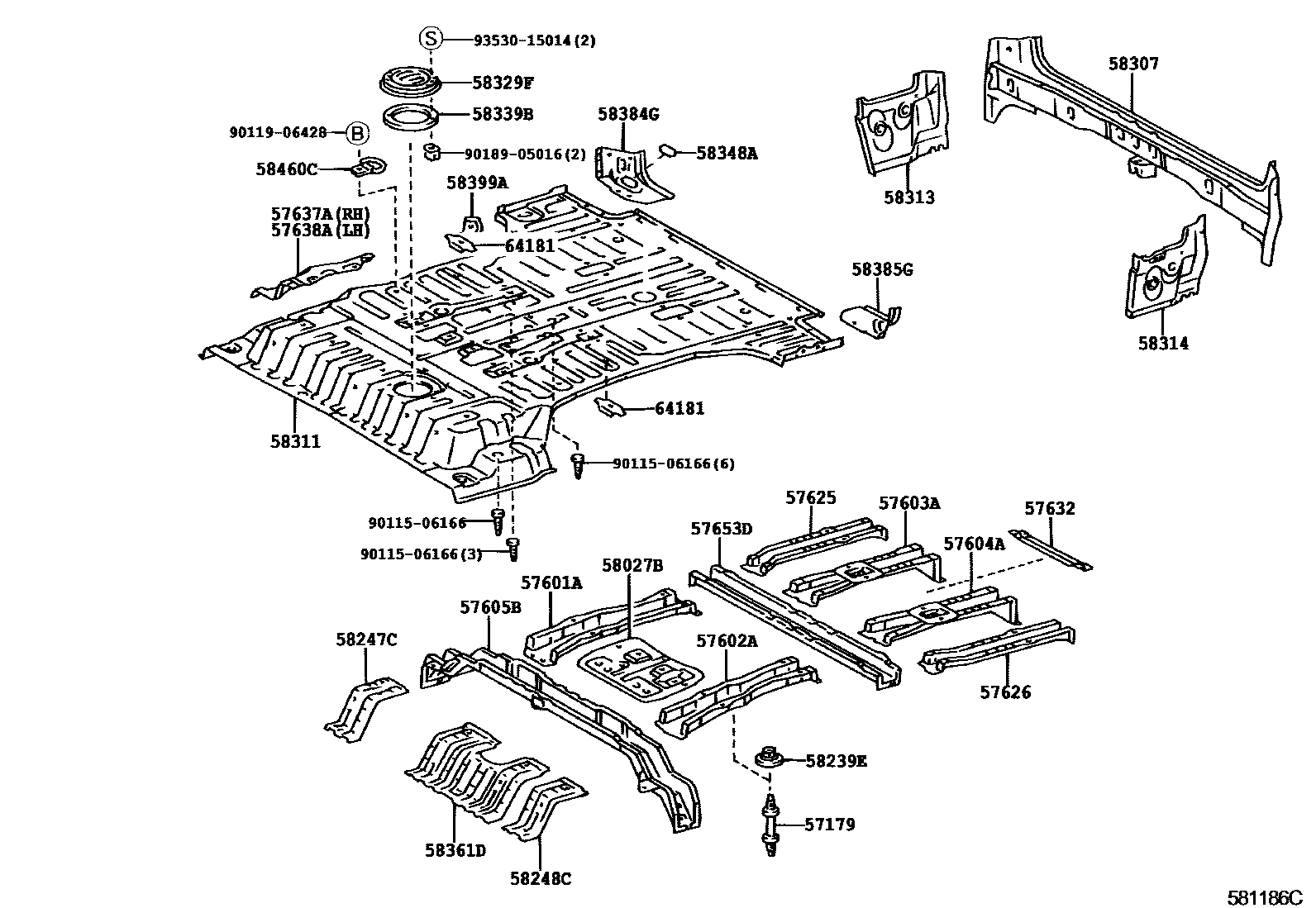

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

57179BOLT, FLOOR CROSSMEMBER

main57179-60020×2iHDJ101,UZJ100199801-200208

57601AMEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-60080iHDJ101,UZJ100200505

main57601-60100iHDJ101,UZJ100..VX,VXL199801-200109

57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-60080iHDJ101,UZJ100199801-200208

main57602-60090iHDJ101,UZJ100..VX,VXL199801-200109

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-60070iUZJ100..VX,VXL199801-200201

main57603-60071iUZJ100..CYG,VXL200208-200411

main57603-60072iUZJ100..CYG,VXL200505

main57603-60080iHDJ101,UZJ100..VX,VXL199801-200201

main57603-60081iHDJ101,UZJ100..VX,VXL200201-200208

sub57603-60082

main57603-60091iHDJ101;UZJ100..VX200308-200411

main57603-60092iHDJ101;UZJ100..VX200412-200505

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57603-60070iUZJ100..VX,VXL199801-200201

main57603-60071iUZJ100..CYG,VXL200208-200411

main57603-60072iUZJ100..CYG,VXL200505

main57603-60080iHDJ101,UZJ100..VX,VXL199801-200201

main57603-60081iHDJ101;UZJ100..VX200208-200308

sub57603-60082

main57603-60091iHDJ101;UZJ100..VX200308-200411

main57603-60092iHDJ101;UZJ100..VX200412-200505

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57068-60060iHDJ101,UZJ100200505

57625REINFORCEMENT, REAR FLOOR SIDE MEMBER, RH

main57625-60020iHDJ101,UZJ100199801-200208

57626REINFORCEMENT, REAR FLOOR SIDE MEMBER, LH

main57626-60020iHDJ101,UZJ100199801-200201

main57626-60021iHDJ101,UZJ100200201-200208

57632MEMBER, REAR FLOOR, CENTER NO.1

main57632-60040iHDJ101,UZJ100200208-200505

57637AREINFORCEMENT, REAR FLOOR SIDE, RH

main57637-60020iHDJ101,UZJ100199801-200208

57638AREINFORCEMENT, REAR FLOOR SIDE, LH

main57638-60020iHDJ101,UZJ100199801-200208

57653DMEMBER, REAR FLOOR CROSS, NO.2

main57607-60020iHDJ101,UZJ100199801-200208

58027BREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-60040iHDJ101,UZJ100199801-200208

58239EPLATE, BELT ANCHOR NUT

main58239-60020×2iHDJ101,UZJ100200505

58247CREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-60040iHDJ101,UZJ100199801-200208

58248CREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58248-60050iHDJ101,UZJ100199801-200208

58307PANEL SUB-ASSY, BODY LOWER BACK

main58302-60330iHDJ101,UZJ100199801-199803

main58302-60450iHDJ101,UZJ100199803-199812

main58302-60451iHDJ101,UZJ100200505

58311PAN, REAR FLOOR

main58311-60460iUZJ100..CYG,VXL200208-200505

main58311-60480iHDJ101;UZJ100..VX200308-200505

main58311-60540iUZJ100..VX,VXL199801-200208

main58311-60560iHDJ101199801-200208

58313PANEL, REAR FLOOR SIDE, RH

main58313-60100iHDJ101,UZJ100200505

58314PANEL, REAR FLOOR SIDE, LH

main58314-60100iHDJ101,UZJ100200505

58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2

main58329-60030iHDJ101,UZJ100199801-200208

58339BPACKING, REAR FLOOR SERVICE HOLE

main58339-60050iHDJ101,UZJ100199801-200208

58348ACOVER, REAR BODY MOUNTING SERVICE HOLE

main58348-60020×2iHDJ101,UZJ100199801-199808

58361DREINFORCEMENT, REAR FLOOR PANEL, NO.1 RH

main58361-60051iHDJ101,UZJ100199801-200208

58384GGUSSET, LOWER BACK, UPPER RH

main58384-60030iHDJ101,UZJ100199801-200208

58385GGUSSET, LOWER BACK, UPPER LH

main58385-60030iHDJ101,UZJ100199801-200004

main58385-60031iHDJ101,UZJ100200004-200201

main58385-60032iHDJ101,UZJ100200201-200208

58399ARETAINER, NO.3 SEAT BELT ANCHOR TO FLOOR

main58399-60010iUZJ100199801-200208

58460CSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-35011×4iHDJ101,UZJ100199801-199902

main58460-35012×4iHDJ101,UZJ100199902-200208

64181REINFORCEMENT SUB-ASSY, REAR SEAT BELT ANCHOR

main58316-60050×3iHDJ101,UZJ100200308-200505

9011506166

main90115-06166

9011906428

main90119-06428

9018905016

main90189-05016

9353015014

main93530-15014

33 parts on this diagram · 2 diagrams in section
