FRONT BUMPER & BUMPER STAY

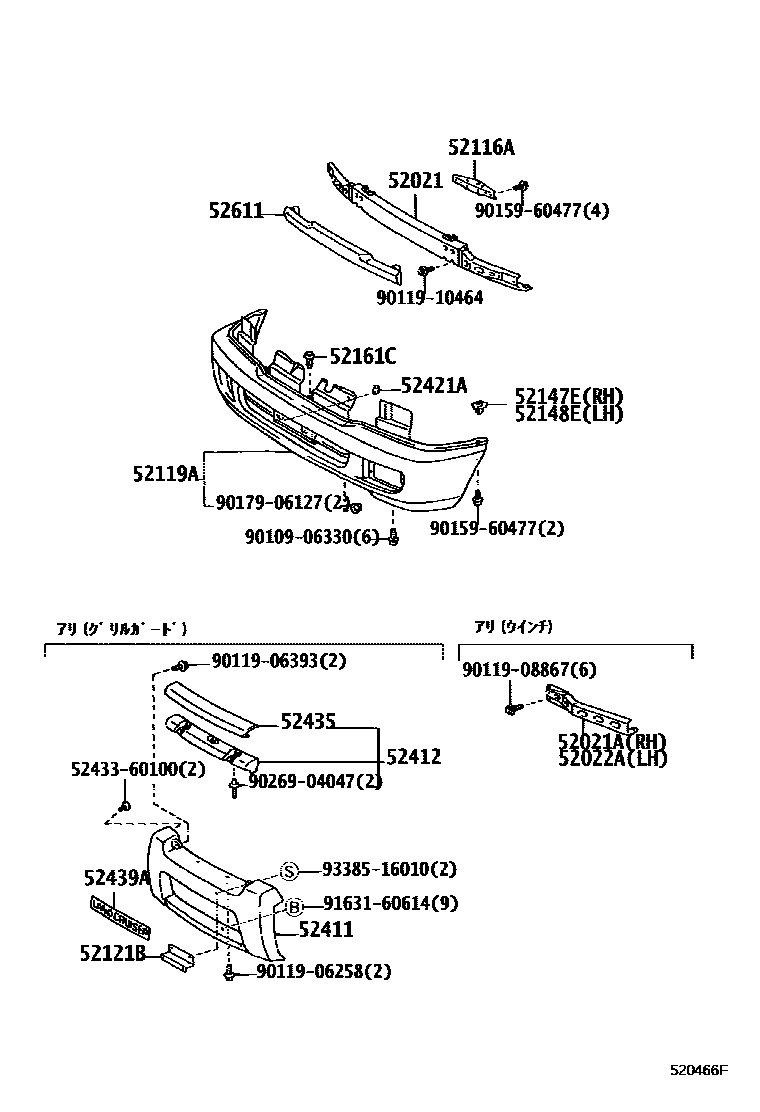

Parts diagram
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
main52021-60020i199801-199808
main52021-60060i200208-200505
sub52021-60120
main52021-60130i200208-200505
main52110-60010i199808-200208
main52110-60020i199901-200208
52021AREINFORCEMENT SUB-ASSY, FRONT BUMPER, RH
main52021-60050i199808-200208
main52131-60100i199801-199808
main52131-60140i200208-200505
52022AREINFORCEMENT SUB-ASSY, FRONT BUMPER, LH
main52022-60030i199808-200208
main52132-60070i199801-199808
main52132-60100i200208-200505
52116ASUPPORT, FRONT BUMPER SIDE, LH
main52116-60110i199802-200208
52119ACOVER, FRONT BUMPER
main52119-60120-A0i199801-200208
sub52119-60907
main52119-60120-E0i199801-199909
sub52119-60907
main52119-60120-E1i199909-200208
sub52119-60907
main52119-60120-H0i199801-199909
sub52119-60907
main52119-60120-H1i199801-199909
sub52119-60907
main52119-60120-H2i200005-200208
sub52119-60907
main52119-60120-H3i199909-200005
sub52119-60907
main52119-60130-E0i199801-199909
sub52119-60908
main52119-60130-E1i199909-200208
sub52119-60908
main52119-60130-H0i199801-199909
sub52119-60908
main52119-60130-H1i199801-199909
sub52119-60908
main52119-60130-H2i200008-200208
sub52119-60908
main52119-60130-H3i199909-200005
sub52119-60908
main52119-60140-A0i199801-200208
sub52119-6B905
sub52119-60909
main52119-60140-A1i200012-200112
50TH ANNIVERSARY EDITION *(A),*(B),WHITE PEARL CS.,064
sub52119-6B905
sub52119-60909
main52119-60140-E0i199801-199909
sub52119-6B905
sub52119-60909
main52119-60140-E1i199909-200208
sub52119-6B905
sub52119-60909
main52119-60140-H0i199801-199909
sub52119-6B905
sub52119-60909
main52119-60140-H1i199801-199909
sub52119-6B905
sub52119-60909
main52119-60140-H2i200005-200208
sub52119-6B905
sub52119-60909
main52119-60140-H3i199909-200005
sub52119-6B905
sub52119-60909
main52119-60170-A0i199801-200208
sub52119-60910
main52119-60170-E0i199801-199909
sub52119-60910
main52119-60170-E1i199909-200208
sub52119-60910
main52119-60170-H0i199801-199909
sub52119-60910
main52119-60170-H1i199801-199909
sub52119-60910
main52119-60170-H2i200005-200208
sub52119-60910
main52119-60170-H3i199909-200005
sub52119-60910
main52119-60180-E0i199801-199909
sub52119-60911
main52119-60180-E1i199909-200208
sub52119-60911
main52119-60180-H0i199801-199909
sub52119-60911
main52119-60180-H1i199801-199909
sub52119-60911
main52119-60180-H2i200008-200208
sub52119-60911
main52119-60180-H3i199909-200005
sub52119-60911
main52119-60190-E0i199801-199909
LT. GRAYISH BEIGE ME,056 ,1B1
sub52119-60904
main52119-60190-E1i199909-200208
LT.GRAYISH BEIGE ME.,056 ,1B1
sub52119-60904
main52119-60190-H0i199801-199909
MEDIUM GRAY ME.,1C3 ,6Q7 ,8L4
sub52119-60904
main52119-60190-H1i199801-199909
DK. TAUPE ME.,3N2
sub52119-60904
main52119-60190-H2i200008-200208
MEDIUM GRAY ME.,1C3 ,3N2 ,6Q7 ,8L4
sub52119-60904
main52119-60190-H3i199909-200005
DK.TAUPE ME.,3N2
sub52119-60904
main52119-60270-A0i199901-200208
sub52119-60914
main52119-60270-A1i200012-200112
sub52119-60914
main52119-60270-E0i199901-200001
sub52119-60914
main52119-60270-E1i200001-200208
sub52119-60914
main52119-60270-H0i199901-200001
sub52119-60914
main52119-60270-H2i200001-200008
sub52119-60914
main52119-60280-A0i199901-200208
WHITE PM.,057
sub52119-60915
main52119-60280-A1i200012-200112
50TH ANNIVERSARY EDITION *(A),WHITE PEARL CS.,064
sub52119-60915
main52119-60280-E0i199901-200001
LT. GRAYISH BEIGE ME,4M9
sub52119-60915
main52119-60280-E1i200001-200208
LT.GRAYISH BEIGE ME.,4M9
sub52119-60915
main52119-60280-H0i199901-200001
MEDIUM GRAY ME.,202 ,6R1
sub52119-60915
main52119-60280-H2i200001-200008
MEDIUM GRAY ME.,202 ,6R1
sub52119-60915
main52119-60550-B0i200505-200708
GRAY ME.,056 ,1F7 ,4R3
sub52119-60918
main52119-60550-D0i200505-200708
DK. GRAY M.,1E9 ,6R4 ,8R3
sub52119-60918
main52119-60550-E0i200208-200505
LT.GRAYISH BEIGE ME.,056 ,1B1 ,4R3
sub52119-60918
main52119-60560-A0i200208-200505
sub52119-60977
main52119-60560-D0i200208-200505
sub52119-60977
main52119-60560-E0i200208-200505
sub52119-60977
main52119-60570-B0i200505-200708
sub52119-60920
sub52119-60978
main52119-60570-D0i200208-200505
sub52119-60920
sub52119-60978
main52119-60570-E0i200208-200505
sub52119-60920
sub52119-60978
main52119-60580-A0i200208-200505
sub52119-60921
sub52119-60979
main52119-60580-B1i200308-200407
sub52119-60921
sub52119-60979
main52119-60580-D0i200208-200505
sub52119-60921
sub52119-60979
main52119-60580-E0i200208-200505
sub52119-60921
sub52119-60979
main52119-60590-A0i200208-200505
sub52119-60980
main52119-60590-D0i200208-200505
sub52119-60980
main52119-60590-E0i200208-200505
sub52119-60980
main52119-60600-B0i200505-200708
sub52119-60923
sub52119-60981
main52119-60600-D0i200505-200708
sub52119-60923
sub52119-60981
main52119-60600-E0i200208-200505
sub52119-60923
sub52119-60981
main52119-60650-A0i200208-200505
main52119-60650-D0i200208-200505
main52119-60650-E0i200208-200505
main52119-60651-A1i200505-200708
sub52119-60928
main52119-60651-B1i200505-200708
sub52119-60928
main52119-60651-D0i200505-200708
sub52119-60928
main52119-60651-G0i200505-200708
sub52119-60928
main52119-60660-A0i200208-200505
WHITE PEARL CS.,070
main52119-60660-B0i200308-200407
main52119-60660-D0i200208-200505
DK. GRAY M.,202
main52119-60660-E0i200208-200505
BEIGE PEARL CS.,4R2
main52119-60661-A1i200505-200708
WHITE PEARL CS.,062
sub52119-60929
main52119-60661-B1i200505-200708
SILVER ME.,1F7
sub52119-60929
main52119-60661-D0i200505-200708
DK. GRAY M.,202 ,3Q2
sub52119-60929
main52119-60661-G0i200505-200708
OLIVE M.M.,6T7
sub52119-60929
main52119-60730-A0i200208-200505
main52119-60730-D0i200208-200505
main52119-60730-E0i200208-200505
main52119-60731-A1i200505-200708
sub52119-6A932
main52119-60731-B1i200505-200708
sub52119-6A932
main52119-60731-D0i200505-200708
sub52119-6A932
main52119-60731-G0i200505-200708
sub52119-6A932
main52119-60740-A0i200208-200505
main52119-60740-D0i200208-200505
main52119-60740-E0i200208-200505
main52119-60741-A1i200505-200708
sub52119-6A933
main52119-60741-B1i200505-200708
sub52119-6A933
main52119-60741-D0i200505-200708
sub52119-6A933
main52119-60741-G0i200505-200708
sub52119-6A933
main52119-60770-A0i200505-200708
sub52119-60952
main52119-60770-B1i200505-200708
sub52119-60952
main52119-60770-D0i200505-200708
sub52119-60952
main52119-60780-A0i200505-200708
WHITE PEARL CS.,062
sub52119-60956
main52119-60780-B1i200505-200708
sub52119-60956
main52119-60780-D0i200505-200708
sub52119-60956
main52119-60800-A0i200505-200708
sub52119-60959
main52119-60800-B1i200505-200708
sub52119-60959
main52119-60800-D0i200505-200708
sub52119-60959
52121BBRACKET, FRONT LICENCE PLATE MOUNTING
main52121-60010i200208-200505
52147EBRACKET, FRONT BUMPER MOUNTING, RH
main52147-60050i200505
52148EBRACKET, FRONT BUMPER MOUNTING, LH
main52147-60050i199801-200208
52161CPIECE, FRONT BUMPER
main52161-16010×3i199801-200208
52411GUARD, FRONT BUMPER
main52411-60080i199801-199907
main52411-60080-B0i200505-200708
GRAY ME.,056 ,1F7 ,4R3
main52411-60080-D0i200208-200505
DK. GRAY M.,1E9 ,6Q7 ,8L4
main52411-60080-E1i200208-200505
BEIGE,070 ,1B1 ,4R3
main52411-60080-H1i200008-200208
GRAY,1C3 ,3N2 ,6Q7 ,8L4
52412GUARD, FRONT BUMPER, NO.2
main52412-60030i199801-199907
main52412-60030-B0i200505-200708
GRAY ME.,056 ,1F7 ,4R3
main52412-60030-D0i200505-200708
DK. GRAY M.,1E9 ,6R4 ,8R3
main52412-60030-E1i200208-200505
BEIGE,070 ,1B1 ,4R3
main52412-60030-H1i200008-200208
GRAY,1C3 ,3N2 ,6Q7 ,8L4
52421APAD, FRONT BUMPER
main52421-60050×2i199801-200208
main52421-60090×2i200208-200505
52435GARNISH, FRONT BUMPER GUARD
main52435-60020i199801-200208
52439ATAPE, FRONT BUMPER GUARD PRTECTOR
main52447-60040i199801-199907
main52447-60040-A0i199907-200208
GRAY,056 ,1B1 ,1C3 ,3N2 ,6Q7 ,8L4
main52447-60040-A1i199907-200008
SILVER,1C3 ,6Q7 ,8L4
main52447-60060-A0i200208-200505
3650-211CHARCOAL GRAY,056 ,1B1 ,4R3
main52447-60060-A1i200505-200708
MN-001 SILVER METALLIC,1E9 ,6R4 ,8R3
52611ABSORBER, FRONT BUMPER ENERGY
main52611-60010i199801-200208
main52611-60020i200208-200505
5243360100SUPPORT, FRONT BUMPER GUARD, RH
main52433-60100
9010906330
main90109-06330
9011906258
main90119-06258
9011906393
main90119-06393
9011908867
main90119-08867
9011910464
main90119-10464
9015960477
main90159-60477
9017906127
main90179-06127
9026904047
main90269-04047
9163160614
main91631-60614
9338516010
main93385-16010

26 parts on this diagram · 4 diagrams in section
