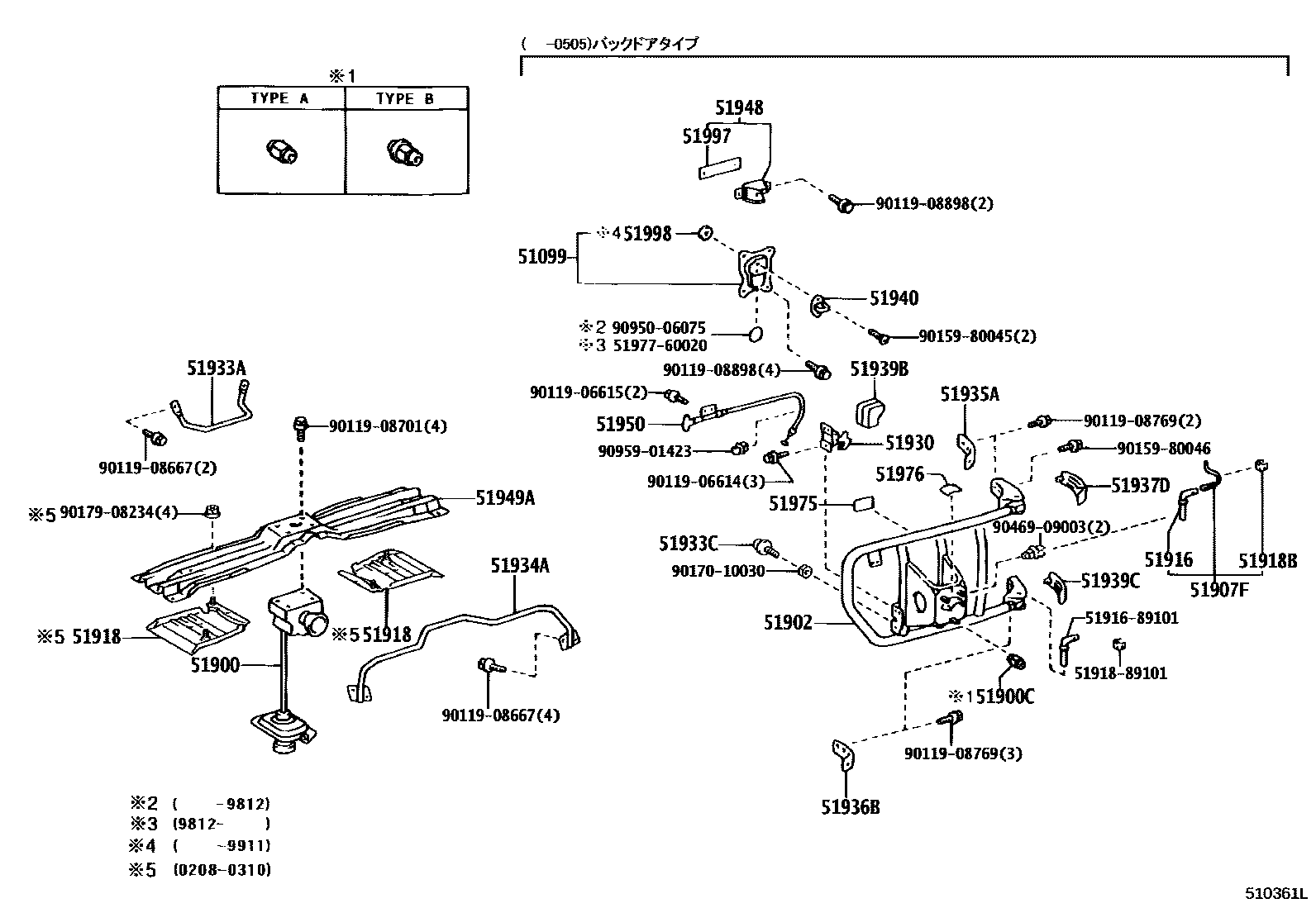

SPARE WHEEL CARRIER

51099PLATE SUB-ASSY, SPARE

main51099-60020iHDJ101,UZJ100199801-200208

51900CARRIER ASSY, SPARE WHEEL

main51900-60190iHDJ101,UZJ100199801-199907

main51900-60191iHDJ101,UZJ100199907-200111

main51900-60192iHDJ101,UZJ100200111-200208

main51900-60193iHDJ101,UZJ100200310-200406

main51900-60194iHDJ101,UZJ100200407-200505

51900CNUT, SPARE WHEEL, HUB

main90942-01101×2iHDJ101,UZJ100..VX199801-200208

main90942-01103×2iHDJ101,UZJ100199801-200208

51902CARRIER SUB-ASSY, SPARE WHEEL

main51903-60120iHDJ101,UZJ100199801-200208

51907FSTOPPER SUB-ASSY, SPARE WHEEL CARRIER

main51907-60060iHDJ101,UZJ100199801-200208

51916PIN, SPARE TIRE CARRIER

main51916-89101iHDJ101,UZJ100199801-200208

51918BRACKET, SPARE WHEEL STOPPER

main51918-60020×2iHDJ101,UZJ100..VX,VXL200208-200310

main51918-60030×2iUZJ100..CYG200208-200310

51918BCLAMP, SPARE WHEEL CARRIER STOPPER PIN CORD

main51918-89101iHDJ101,UZJ100199801-200208

51930LOCK ASSY, SPARE WHEEL CARRIER

main51930-89101iHDJ101,UZJ100199801-200208

51933ASTOPPER, SPARE WHEEL, NO.1

main51933-60140iHDJ101,UZJ100199801-200208

main51933-60141iHDJ101,UZJ100200208-200505

51933CSTOPPER, SPARE WHEEL

main51933-60070iHDJ101,UZJ100199801-200208

51934ASTOPPER, SPARE WHEEL, NO.2

main51904-60040iHDJ101,UZJ100199801-199912

main51904-60041iHDJ101,UZJ100199912-200208

main51904-60061iHDJ101,UZJ100200208-200505

51935ACUSHION, SPARE WHEEL CARRIER HINGE, UPPER

main51935-60060iHDJ101,UZJ100199801-200208

51936BCUSHION, SPARE WHEEL CARRIER HINGE, LOWER

main51936-60070iHDJ101,UZJ100199801-200208

51937DCOVER, SPARE WHEEL CARRIER HINGE, UPPER

main51937-60040iHDJ101,UZJ100199801-200208

51939BCOVER, SPARE WHEEL CARRIER LOCK

main51939-89102iHDJ101,UZJ100199801-200208

51939CCOVER, SPARE WHEEL CARRIER HINGE

main51939-60040iHDJ101,UZJ100199801-200208

51940STRIKER ASSY, SPARE WHEEL CARRIER LOCK

main51940-60010iHDJ101,UZJ100199801-200208

51948STOPPER, SPARE WHEEL CARRIER AUXILIARY

main51905-60020iHDJ101,UZJ100199801-200208

51949ACROSSMEMBER, SPARE WHEEL CARRIER

main51281-60110iHDJ101,UZJ100199801-200208

main51281-60111iHDJ101,UZJ100200310-200505

51950CABLE ASSY, SPARE WHEEL CARRIER LOCK CONTROL

main51950-60030iHDJ101,UZJ100199801-200208

51975FILM, SPARE WHEEL CARRIER

main51975-60010iHDJ101,UZJ100199801-200208

51976FILM, SPARE WHEEL CARRIER, NO.2

main51976-60020iHDJ101,UZJ100199801-200208

51997PAD, SPARE WHEEL STOPPER

main51997-60020×3iHDJ101,UZJ100199801-199902

main51997-60040iHDJ101,UZJ100199902-200208

51998PAD, SPARE WHEEL BRACKET

main51998-60020×4iHDJ101,UZJ100199801-199911

5191689101PIN, SPARE TIRE CARRIER

main51916-89101

5191889101BRACKET, SPARE WHEEL STOPPER

main51918-89101

5197760020PROTECTOR, REAR TRANSPORT HOOK EDGE

main51977-60020

9011906614

main90119-06614

9011906615

main90119-06615

9011908667

main90119-08667

9011908701

main90119-08701

9011908769

main90119-08769

9011908898

main90119-08898

9015980045

main90159-80045

9015980046

main90159-80046

9017010030

main90170-10030

9017908234

main90179-08234

9046909003

main90469-09003

9095006075

main90950-06075

9095901423

main90959-01423

41 parts on this diagram · 1 diagram in section
