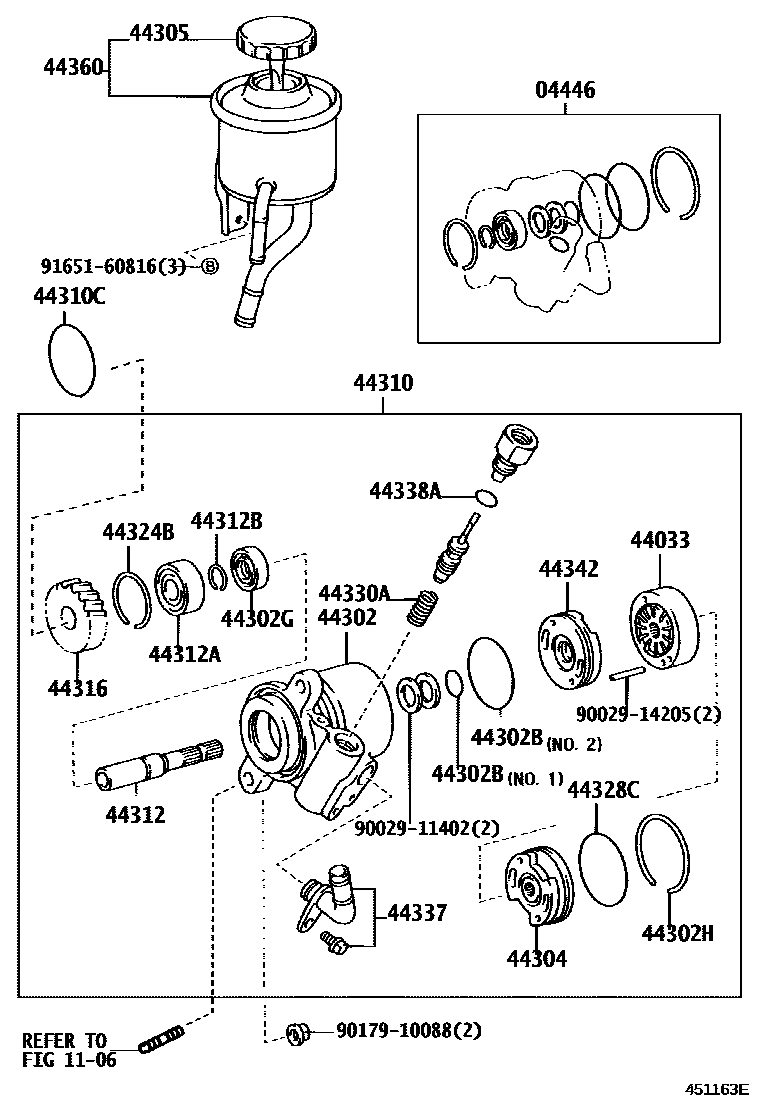

VANE PUMP & RESERVOIR (POWER STEERING)
04446GASKET KIT, POWER STEERING PUMP
1106
44033ROTOR SUB-ASSY, W/CAM & VANE
44302HOUSING SUB-ASSY, VANE PUMP, FRONT
44302BRING, O, NO.1(FOR VANE PUMP HOUSING)
44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)
44304HOUSING SUB-ASSY, VANE PUMP, REAR
44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44310PUMP ASSY, VANE
44310CRING, O(FOR VANE PUMP)
44312SHAFT, VANE PUMP
44312ABEARING(FOR VANE PUMP SHAFT)
44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44316GEAR, VANE PUMP
44324BRING, HOLE SNAP(FOR PUMP HOUSING REAR)
44328CRING, O(FOR PUMP HOUSING END)
44330VALVE ASSY, FLOW CONTROL
44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44337UNION, POWER STEERING SUCTION PORT
44338ARING, O(FOR PRESSURE PORT UNION)
44342PLATE, VANE PUMP SIDE, REAR
44360RESERVOIR ASSY, VANE PUMP OIL
9002911402
9002914205
9017910088
9165160816
27 parts on this diagram · 4 diagrams in section
