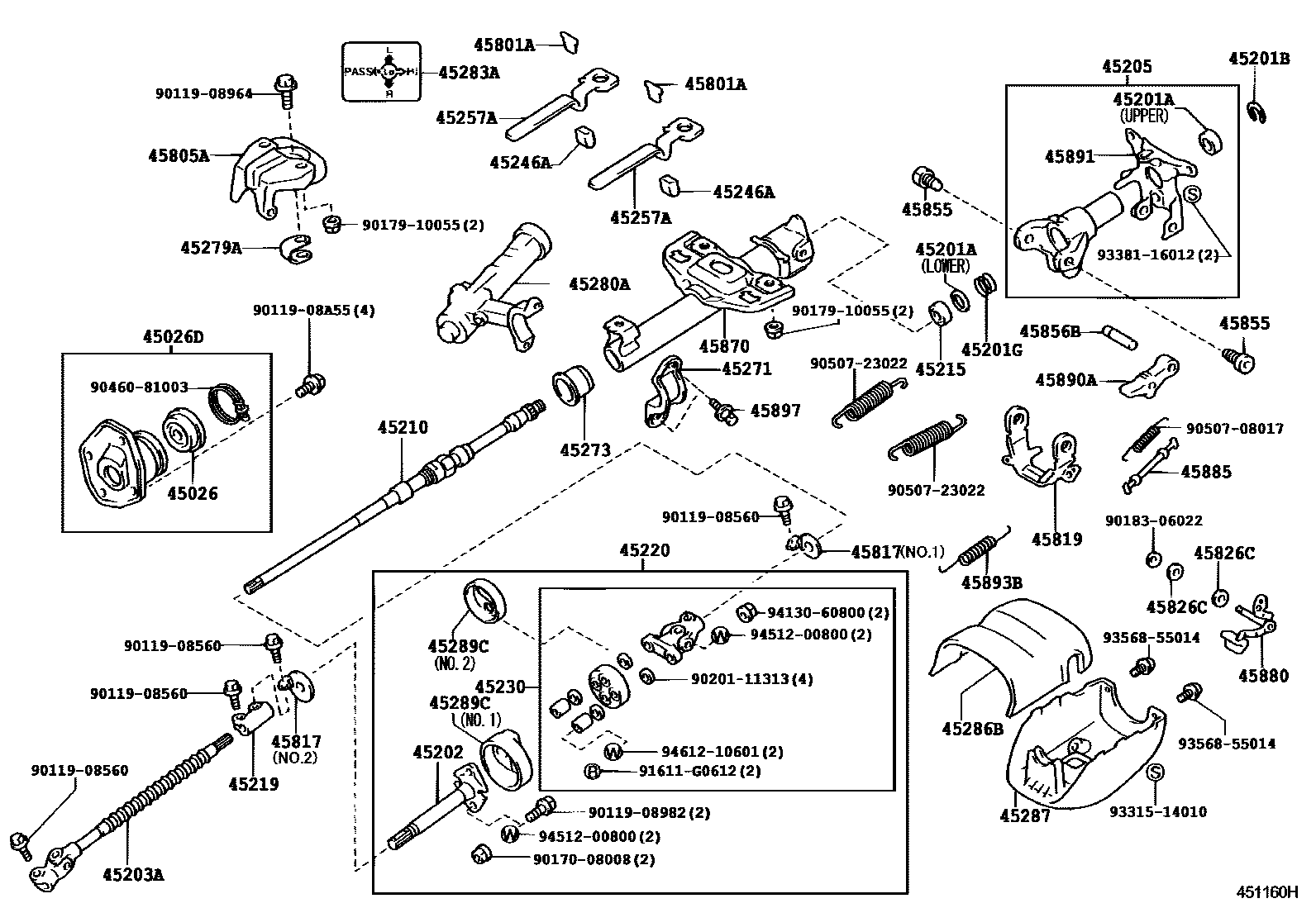

STEERING COLUMN & SHAFT
45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45026DCOVER SUB-ASSY, STEERING COLUMN HOLE
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45202SHAFT SUB-ASSY, STEERING INTERMEDIATE
45203ASHAFT, STEERING INTERMEDIATE, NO.2
45205TUBE SUB-ASSY, STEERING COLUMN
45215COLLAR, MAIN SHAFT BEARING THRUST
45219YOKE, STEERING SLIDING
45230COUPLING ASSY, FLEXIBLE
45246AGUIDE, STEERING ENERGY ABSORBING PLATE
45257APLATE, STEERING COLUMN ENERGY ABSORBING
45271CLAMP, STEERING COLUMN, UPPER
45273BUSH, STEERING MAIN SHAFT
45279AATTACHMENT, STEERING COLUMN TUBE, LWR
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION
45286BCOVER, STEERING COLUMN, UPR
45287COVER, STEERING COLUMN, LWR
sub45287-60331
sub45287-60331
sub45287-60331
sub45287-60331
sub45287-60331
sub45287-60331
sub45287-60331
sub45287-60331
sub45287-60341
sub45287-60341
sub45287-60341
sub45287-60341
sub45287-60341
sub45287-60341
45801APIN SUB-ASSY, STEERING ENERGY ABSORBING
45805ASUPPORT SUB-ASSY, TILT STEERING
45817STOPPER, STEERING SHAFT THRUST
45819RETAINER, TILT LEVER
45826CBUSH(FOR STEERING TILT LEVER)
45855BOLT, TILT STEERING, NO.1
45856BSHAFT, T1LT STEERING, NO.2
45870TUBE ASSY, STEERING COLUMN
45880LEVER ASSY, STEERING TILT
45885LINK, TILT LEVER
45890APAWL ASSY, TILT STEERING
45891BRACKET, TURN SIGNAL
45893BSPRING, TENSION(FOR TILT STEERING PAWL STOPPER)
9011908560
main90119-08560
9011908964
main90119-08964
9011908982
main90119-08982
9011908A55
main90119-08A55
9017008008
main90170-08008
9017910055
main90179-10055
9018306022
main90183-06022
9020111313
main90201-11313
9046081003
main90460-81003
9050708017
main90507-08017
9050723022
main90507-23022
91611G0612
main91611-G0612
9331514010
main93315-14010
9338116012
main93381-16012
9356855014
main93568-55014
9413060800
main94130-60800
9451200800
main94512-00800
9461210601
main94612-10601
55 parts on this diagram · 6 diagrams in section
