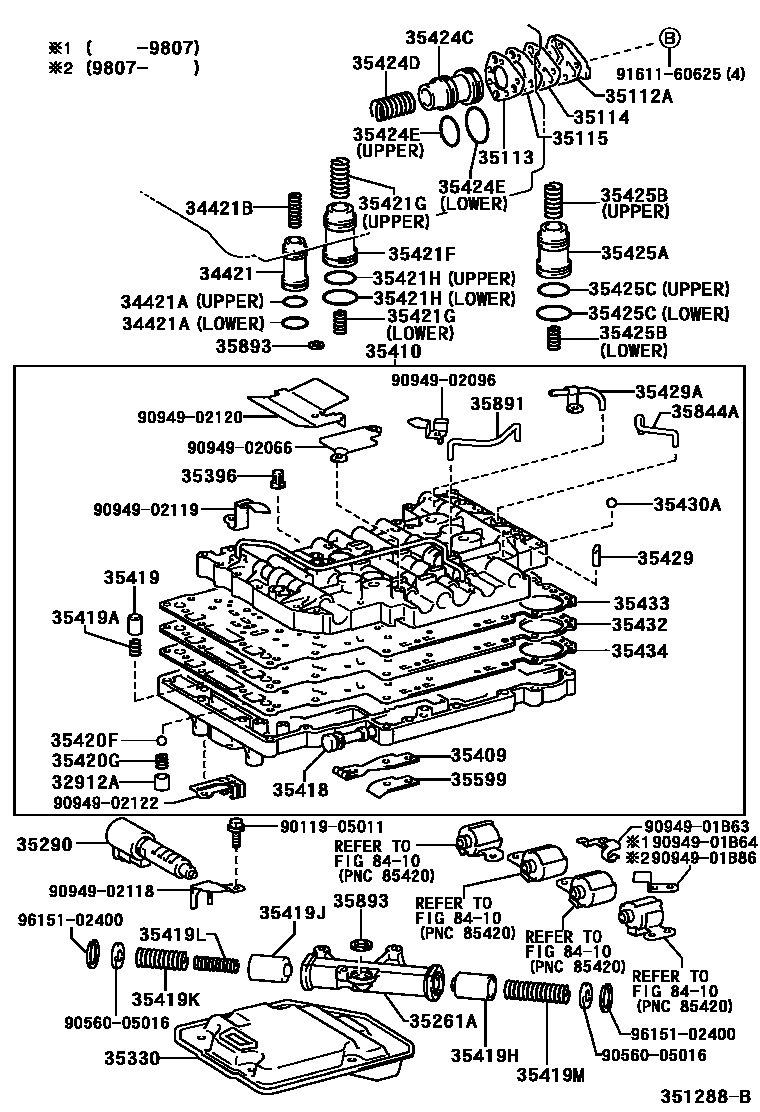

VALVE BODY & OIL STRAINER (ATM)
32912ACAGE, CHECK VALVE(FOR VALVE BODY)
34421PISTON, OVERDRIVE BRAKE ACCUMULATOR
34421ARING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
34421BSPRING (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
35112ACOVER, FRONT CLUTCH ACCUMULATOR
35113GASKET, FRONT CLUTCH ACCUMLATOR, NO.2
35114GASKET, FRONT CLUTCH ACCUMLATOR, NO.1
35115PLATE, FRONT CLUTCH ACCUMULATOR
35261ACYLINDER, THROTTLE PRESSURE ACCUMULATOR
35290SOLENOID ASSY, LINE PRESSURE CONTROL
35330STRAINER ASSY, VALVE BODY OIL
35396STRAINER, THROTTLE OIL
35409SPRING SUB-ASSY, MANUAL DETENT
35418VALVE, MANUAL
35419VALVE, CHECK, NO.1
35419ASPRING, COMPRESSION (FOR CHECK VALVE)
35419HVALVE, CHECK, NO.5
35419JVALVE, CHECK, NO.6
35419KSPRING, COMPRESSION (FOR CHECK VALVE NO.2)
35419LSPRING, COMPRESSION (FOR CHECK VALVE NO.3)
35419MSPRING, COMPRESSION (FOR CHECK VALVE NO.4)
35420FBALL, CHECK, NO.1
35420GSPRING, BARREL SHAPED
35421FPISTON, ACCUMULATOR, NO.2
35421GSPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2)
35421HRING (FOR ACCUMULATOR PISTON NO.2)
35424CPISTON, C-1 ACCUMULATOR
35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)
35424ERING, O (FOR C-1 ACCUMULATOR PISTON)
35425APISTON, C-2 ACCUMULATOR
35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
35425CRING, O (FOR C-2 ACCUMULATOR PISTON)
35429TUBE, LINE PRESSURE
35429ATUBE, LINE PRESSURE
35430ABALL (FOR REAR UPPER VALVE BODY)
35433GASKET, VALVE BODY, NO.1
35434GASKET, VALVE BODY, NO.2
35599COVER, MANUAL DETENT SPRING
35844ATUBE, ACCUMULATOR BACK PRESSURE, NO.1
35891TUBE, OVERDRIVE DIRECT CLUTCH
35893GASKET, CENTER SUPPORT APPLY
8410
9011905011
main90119-05011
9056005016
main90560-05016
9094901B63
main90949-01B63
9094901B64
main90949-01B64
9094901B86
main90949-01B86
9094902066
main90949-02066
9094902096
main90949-02096
9094902118
main90949-02118
9094902119
main90949-02119
9094902120
main90949-02120
9094902122
main90949-02122
9161160625
main91611-60625
9615102400
main96151-02400
57 parts on this diagram · 5 diagrams in section
