METER

0001 1��������� & ���� 0002 1��������� & ���� 0003 1��������� & ���� 0004 1����� & ���� 0005 1����� & ���� 0006 1����� & ���� 0007 1��������� ����� 0008 1������������ 0009 1���������

83110SPEEDOMETER ASSY

main83110-60300iFJ80199001-199208

main83110-60301iFZJ80199208-199801

main83110-60310iHZJ81199001-199008

sub83110-60320

main83110-60320iHDJ81199001-199208

main83110-60321iHDJ81,HZJ81199208-199801

83132CASE, COMBINATION METER

main83132-60100iFJ80,HDJ81,HZJ81..LUB199001-199208

main83132-60120iHZJ81..STD199001-199208

main83132-60720iFZJ80,HDJ81,HZJ81..GX,VX,VXL199208-199501

sub83132-60770

main83132-60740iHZJ81..STD199208-199305

main83132-60770iFZJ80,HDJ81,HZJ81199501-199801

83134COVER, COMBINATION METER, NO.1

main83134-60100iFJ80,FZJ80199001-199801

main83134-60120iHDJ81,HZJ81..GX,VX,VXL199001-199801

main83134-60140iHZJ81..STD199001-199305

83145LENS, METER, NO.1

main83145-60020iFJ80,HDJ81,HZJ81..LUB199001-199208

main83145-60040iHDJ81,HZJ81..LUB..MTM199001-199208

main83145-60500iHZJ81..STD199001-199208

main83145-6A020iHZJ81..ATM;FZJ80,HDJ81199501-199503

sub83145-6A580

main83145-6A520iHZJ81..MTM199501-199503

sub83145-6A620

main83145-6A580iHZJ81..ATM;FZJ80,HDJ81199503-199801

main83145-6A620iHZJ81..MTM199503-199801

main83146-60060iFZJ80,HDJ81,HZJ81..ATM199208-199501

main83146-60100iHDJ81,HZJ81..LUB..MTM199208-199501

main83146-60140iHDJ81,HZJ81..LUB..MTM199208-199501

main83146-60180iHDJ81..ATM199305-199501

main83146-60480iHZJ81..MTM199305-199501

sub83146-60180

main83146-60660iHZJ81..STD199208-199305

main83146-60860iHZJ81..MTM199305-199501

sub83146-60180

83145ALENS, METER, NO.2

main83145-60200iFJ80199001-199208

main83145-60220iHZJ81..GX199001-199208

main83145-60240iHDJ81199001-199208

main83145-60260iHDJ81..MTM199001-199208

main83145-60320iHZJ81..MTM..GX199001-199208

main83145-60580iHZJ81..STD199001-199208

main83145-6A160iHZJ81;HDJ81..MTM199501-199503

sub83145-6A300

main83145-6A180iFZJ80199501-199503

main83145-6A300iHDJ81..MTM199501-199503

main83145-6A570iFZJ80..MTM199503-199801

sub83145-6A590

main83145-6A590iFZJ80..ATM199503-199801

main83145-6A600iHZJ81;HDJ81..MTM199503-199801

sub83145-6A610

main83145-6A610iHDJ81..ATM199503-199801

main83146-60040iFZJ80199208-199501

main83146-60060iHDJ81..ATM199305-199501

main83146-60080iHDJ81,HZJ81..LUB..MTM199208-199501

main83146-60100iHZJ81..MTM199305-199501

main83146-60120iHDJ81,HZJ81..LUB..MTM199208-199501

main83146-60140iHZJ81..MTM199305-199501

main83146-60160iHZJ81..ATM199208-199501

sub83146-60180

main83146-60180iHDJ81..ATM199208-199305

main83146-60640iHZJ81..STD199208-199305

83146GROMMET, METER GLASS

main83145-89318iHDJ81,HZJ81199001-199801

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-60040iFJ80,HDJ81,HZJ81..LUB199001-199208

main83243-60060iHZJ81..STD199001-199208

main83243-60240iFZJ80,HDJ81,HZJ81..GX,VX,VXL199208-199801

main83243-60260iHZJ81..STD199208-199305

83247PLATE, METER CIRCUIT

main83149-60540iFZJ80199208-199501

main83149-60560iHDJ81,HZJ81..MTM..(GX,VX)199208-199501

main83149-60580iHDJ81,HZJ81..ATM199208-199501

main83149-60840iHZJ81..STD199208-199305

main83247-60040iFJ80199001-199208

main83247-60060iHDJ81,HZJ81..LUB199001-199208

main83247-60080iHDJ81,HZJ81..LUB..MTM199001-199208

main83247-60320iHZJ81..STD199001-199208

main83247-6A140iFZJ80,HDJ81,HZJ81..ATM199501-199801

main83247-6A240iFZJ80,HDJ81,HZJ81..MTM199501-199801

83247BPLATE, METER CIRCUIT, NO.2

main83247-95N29iFZJ80,HDJ81,HZJ81199208-199801

8316120300CASE, COMBINATION METER MIRROR, NO.1

main83161-20300

8316120440CASE, COMBINATION METER MIRROR, NO.1

main83161-20440

8316120460CASE, COMBINATION METER MIRROR, NO.1

main83161-20460

8316120720CASE, COMBINATION METER MIRROR, NO.1

main83161-20720

9356855014

main93568-55014

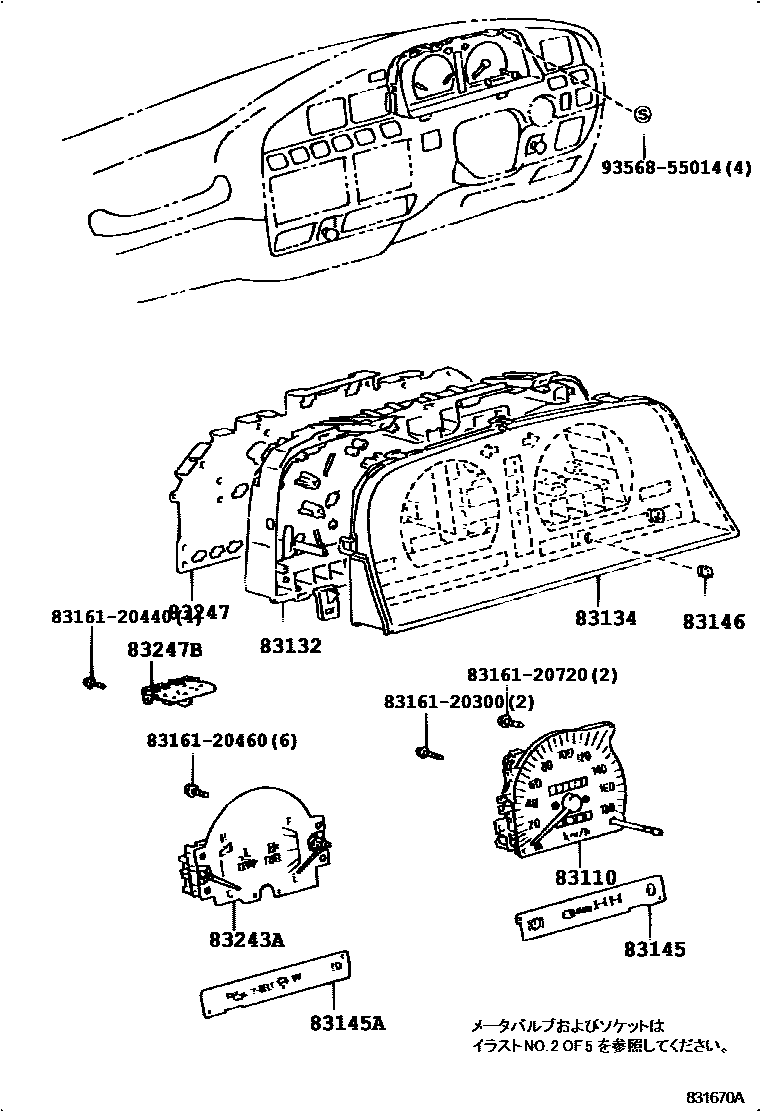

14 parts on this diagram · 9 diagrams in section
