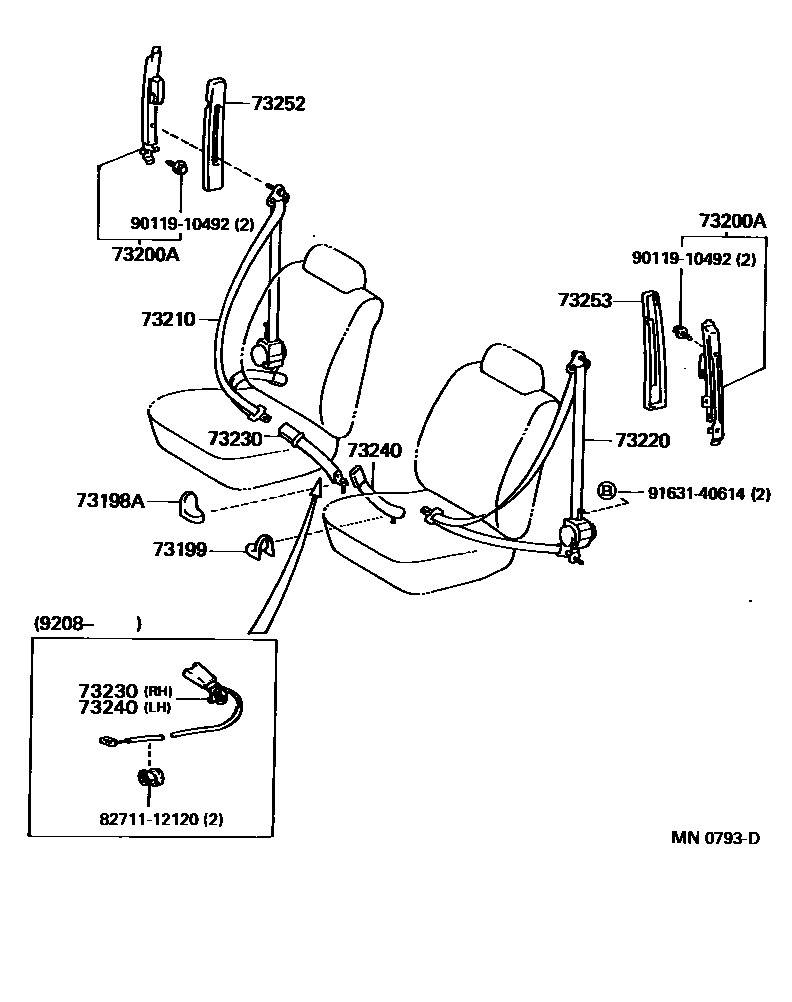

SEAT BELT

0001 1 0002 1 0003 1

73198ACOVER, FRONT SEAT BELT INNER ANCHOR, RH

main73198-60010-03iFJ80,HDJ81199008-199208

BLUISH GRAY,TRIM1#

main73198-60010-06iFJ80,HDJ81199008-199208

SABLE,TRIM4#

73199COVER, FRONT SEAT BELT INNER ANCHOR, LH

main73199-60010-03iFJ80,HDJ81199008-199208

BLUISH GRAY,TRIM1#

main73199-60010-06iFJ80,HDJ81199008-199208

SABLE,TRIM4#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-60010-03×2iFJ80,FZJ80,HDJ81,HZJ81199001-199501

LIGHT GRAY,TRIM1#

main73200-60010-06×2iFJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL199001-199501

LIGHT SABLE,TRIM4#

main73200-60010-A0×2iHDJ81..VXL199605-199607

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-60070-03iFJ80,HDJ81,HZJ81199001-199208

BLUISH GRAY,TRIM1#

main73210-60070-06iFJ80,HDJ81,HZJ81..LUB199001-199208

SABLE,TRIM4#

main73210-60071-B0iFZJ80,HDJ81,HZJ81199208-199501

BLUISH GRAY,TRIM1#

main73210-60071-E0iFZJ80,HDJ81,HZJ81..GX,VX,VXL199208-199501

SABLE,TRIM4#

main73210-60260-B0iFZJ80,HDJ81,HZJ81199501-199801

BLUISH GRAY,TRIM1#

main73210-60260-E0iFZJ80,HDJ81,HZJ81199501-199801

OAK,TRIM4#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-60070-03iFJ80,HDJ81,HZJ81199001-199208

BLUISH GRAY,TRIM1#

main73220-60070-06iFJ80,HDJ81,HZJ81..LUB199001-199208

SABLE,TRIM4#

main73220-60071-B0iFZJ80,HDJ81,HZJ81199208-199501

BLUISH GRAY,TRIM1#

main73220-60071-E0iFZJ80,HDJ81,HZJ81..GX,VX,VXL199208-199501

SABLE,TRIM4#

main73220-60250-B0iFZJ80,HDJ81,HZJ81199501-199801

BLUISH GRAY,TRIM1#

main73220-60250-E0iFZJ80,HDJ81,HZJ81199501-199801

OAK,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-60050-03iFJ80,HDJ81,HZJ81199001-199208

BLUISH GRAY,TRIM1#

main73230-60050-06iFJ80,HDJ81,HZJ81..LUB199001-199208

SABLE,TRIM4#

main73230-60051-B0iFZJ80,HDJ81,HZJ81199208-199801

BLUISH GRAY,TRIM1#

main73230-60051-E0iHZJ81;FZJ80..ATM199501-199801

SABLE

main73230-60051-E1iFZJ80,HDJ81,HZJ81199501-199801

OAK,TRIM4#

main73230-60190-B0iFZJ80,HDJ81..VXL199208-199501

main73230-60190-E0iFZJ80,HDJ81..VXL199208-199501

main73230-60190-E1iFZJ80,HDJ81,HZJ81..VXL199501-199801

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-60011-B0iFZJ80,HDJ81,HZJ81199208-199801

BLUISH GRAY,TRIM1#

main73230-60011-E0iFZJ80,HDJ81,HZJ81..GX,VX,VXL199208-199501

SABLE,TRIM4#

main73230-60011-E1iFZJ80,HDJ81,HZJ81199501-199801

OAK,TRIM4#

main73230-60200-B0iHZJ81..VXL199501-199801

main73230-60200-E0iFZJ80,HDJ81..VXL199208-199501

main73230-60200-E1iFZJ80,HDJ81,HZJ81..VXL199501-199801

main73240-60060-03iFJ80,HDJ81,HZJ81199001-199208

BLUISH GRAY,TRIM1#

main73240-60060-06iFJ80,HDJ81,HZJ81..LUB199001-199208

SABLE,TRIM4#

73252COVER, SHOULDER BELT ANCHOR ADJUST, RH

main73252-60010-03iFJ80,FZJ80,HDJ81,HZJ81199001-199501

LIGHT GRAY,TRIM1#

main73252-60010-06iFJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL199001-199501

LIGHT SABLE,TRIM4#

73253COVER, SHOULDER BELT ANCHOR ADJUST, LH

main73253-60010-03iFJ80,FZJ80,HDJ81,HZJ81199001-199501

LIGHT GRAY,TRIM1#

main73253-60010-06iFJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL199001-199501

LIGHT SABLE,TRIM4#

8271112120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12120

9011910492

main90119-10492

9163140614

main91631-40614

12 parts on this diagram · 3 diagrams in section
