E
EPC Data

SIDE MEMBER

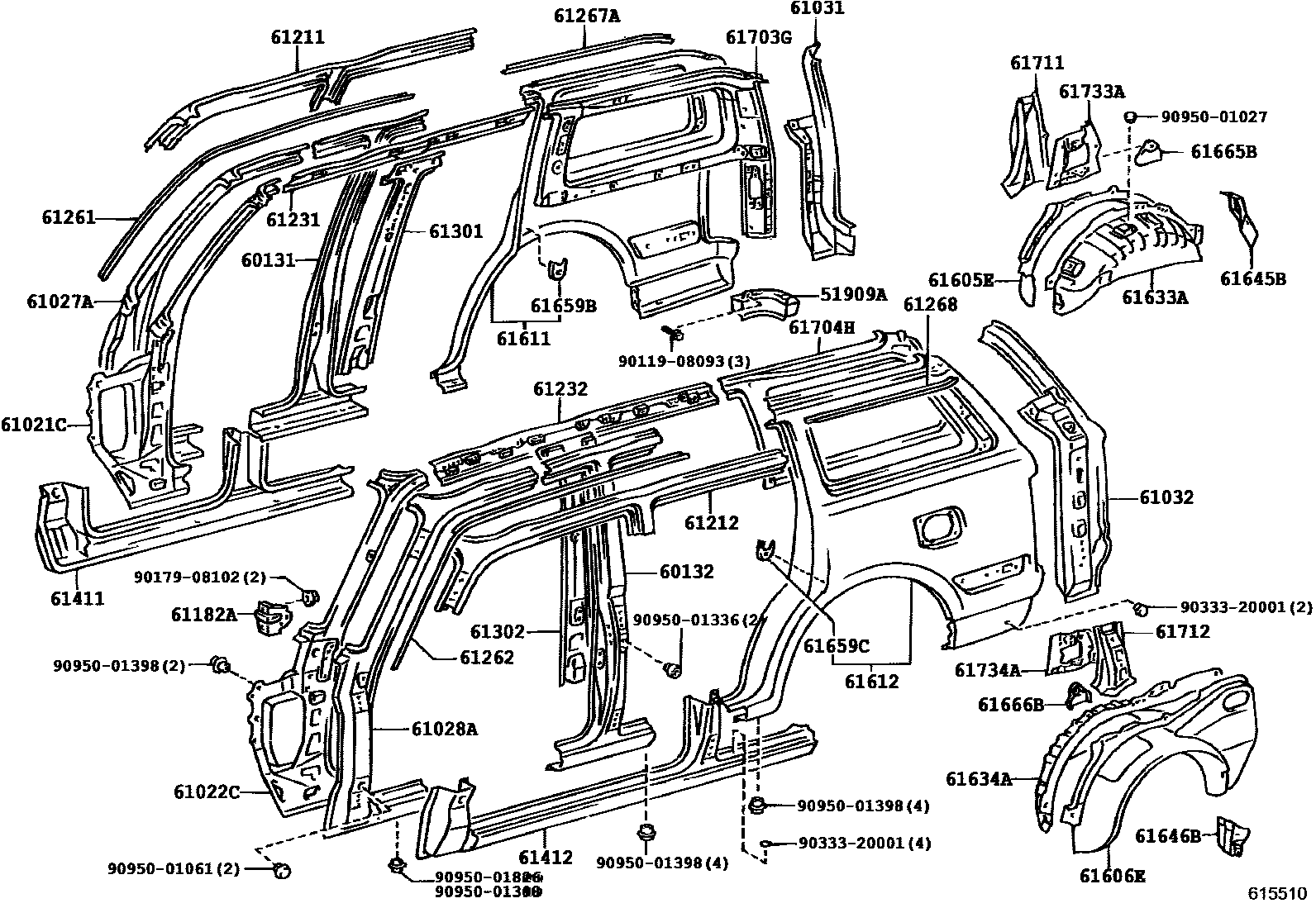

Parts diagram
51909ARETAINER SUB-ASSY, SPARE WHEEL, NO.1
main51909-60010i199001-199801
60131PILLAR SUB-ASSY, CENTER BODY, NO.2 RH
main60131-60010i199001-199501
sub60131-60011
main60131-60010i199001-199305
sub60131-60011
main60131-60011i199501-199511
sub60131-60021
sub90950-01336
main60131-60020i199001-199501
sub60131-60021
main60131-60020i199305-199501
sub60131-60021
main60131-60020i199001-199004
sub60131-60021
main60131-60020i199001-199305
sub60131-60021
main60131-60020i199004-199305
sub60131-60021
main60131-60021i199501-199511
sub60131-60022
main60131-60021i199501-199601
sub60131-60022
main60131-60022i199601-199801
60132PILLAR SUB-ASSY, CENTER BODY, NO.2 LH
main60132-60010i199001-199305
sub60132-60011
main60132-60010i199001-199501
sub60132-60011
main60132-60011i199501-199511
sub60132-60021
sub90950-01336
main60132-60020i199001-199305
sub60132-60021
main60132-60020i199001-199501
sub60132-60021
main60132-60020i199305-199501
sub60132-60021
main60132-60021i199501-199511
sub60132-60022
main60132-60021i199501-199601
sub60132-60022
main60132-60022i199601-199801
61021CPILLAR SUB-ASSY, FRONT BODY, RH
main61021-60010i199001-199208
sub61021-60011
main61021-60011i199208-199501
sub61021-60012
main61021-60012i199501-199801
61022CPILLAR SUB-ASSY, FRONT BODY, LH
main61022-60040i199001-199208
main61022-60041i199208-199501
main61022-60042i199501-199801
61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH
main61027-60090i199001-199305
sub61027-60091
main61027-60090i199001-199501
sub61027-60091
main61027-60091i199501-199511
sub61027-60101
sub90950-01061
main61027-60100i199305-199501
sub61027-60101
main61027-60100i199001-199004
sub61027-60101
main61027-60100i199001-199305
sub61027-60101
main61027-60100i199004-199305
sub61027-60101
main61027-60100i199001-199501
sub61027-60101
main61027-60101i199501-199511
sub61027-60102
main61027-60101i199501-199601
sub61027-60102
main61027-60102i199601-199801
61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH
main61028-60070i199001-199305
sub61028-60071
main61028-60070i199001-199501
sub61028-60071
main61028-60071i199501-199511
sub61028-60081
sub90950-01061
main61028-60080i199001-199305
sub61028-60081
main61028-60080i199001-199501
sub61028-60081
main61028-60080i199305-199501
sub61028-60081
main61028-60081i199501-199601
sub61028-60082
main61028-60081i199501-199511
sub61028-60082
main61028-60082i199601-199801
61031EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER RH
main61031-60010i199001-199501
sub61031-60011
main61031-60011i199501-199801
main61031-60020i199001-199501
sub61031-60021
main61031-60021i199501-199801
main61031-60030i199001-199305
sub61031-60031
main61031-60040i199001-199208
sub61031-60041
main61031-60040i199208-199305
sub61031-60041
main61031-60040i199305-199501
sub61031-60041
main61031-60041i199501-199801
main61031-60050i199001-199305
sub61031-60051
main61031-60060i199305-199501
sub61031-60061
main61031-60060i199001-199208
sub61031-60061
main61031-60060i199208-199305
sub61031-60061
main61031-60061i199608-199801
61032EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER LH
main61032-60010i199001-199501
sub61032-60011
main61032-60011i199501-199801
main61032-60020i199001-199501
sub61032-60021
main61032-60021i199501-199801
61182APILLAR, FRONT BODY, INNER LH
main61182-60010i199001-199801
61211RAIL, ROOF SIDE, OUTER RH
main61211-60020i199001-199801
61212RAIL, ROOF SIDE, OUTER LH
main61212-60020i199001-199801
61231RAIL, ROOF SIDE, INNER RH
main61231-60010i199001-199501
sub61231-60011
main61231-60011i199501-199507
sub61231-60012
main61231-60012i199507-199801
61232RAIL, ROOF SIDE, INNER LH
main61232-60010i199001-199501
sub61232-60011
main61232-60011i199501-199507
sub61232-60012
main61232-60012i199507-199801
61261CHANNEL, ROOF DRIP, RH
main61261-60010i199001-199801
61262CHANNEL, ROOF DRIP, LH
main61262-60010i199001-199801
61267ACHANNEL, ROOF DRIP SIDE, REAR RH
main61207-60010i199001-199501
main61267-60010i199501-199801
61268CHANNEL, ROOF DRIP SIDE, REAR LH
main61208-60010i199001-199501
main61268-60010i199501-199801
61301PILLAR SUB-ASSY, CENTER BODY, RH
main61301-60070i199001-199501
sub61301-60071
main61301-60071i199501-199507
sub61301-60072
main61301-60072i199507-199801
61302PILLAR SUB-ASSY, CENTER BODY, LH
main61302-60090i199001-199501
sub61302-60091
main61302-60091i199501-199507
sub61302-60092
main61302-60092i199507-199801
61411PANEL, ROCKER, OUTER RH
main61411-60020i199001-199601
sub61411-60021
main61411-60021i199601-199801
61412PANEL, ROCKER, OUTER LH
main61412-60020i199001-199601
sub61412-60021
main61412-60021i199601-199801
61605EPANEL, QUARTER, RH
main61605-60020i199001-199801
61606EPANEL, QUARTER, LH
main61606-60020i199001-199801
61611PANEL, QUARTER, RH
main60161-60010i199001-199501
sub60161-60011
main60161-60011i199501-199801
main60161-60020i199001-199501
sub60161-60021
main60161-60030i199001-199208
main60161-60031i199208-199501
main60161-60032i199501-199801
main60161-60040i199001-199501
sub60161-60041
main60161-60050i199001-199501
sub60161-60051
main60161-60060i199001-199208
main60161-60061i199208-199501
main60161-60062i199608-199801
main60161-60062i199501-199608
main60161-60080i199001-199305
sub60161-60081
main60161-60090i199001-199305
sub60161-60091
main60161-60450i199605-199607
61612PANEL, QUARTER, LH
main60162-60010i199001-199501
sub60162-60011
main60162-60011i199501-199801
main60162-60020i199001-199501
sub60162-60021
main60162-60030i199001-199208
main60162-60031i199208-199501
main60162-60032i199501-199801
main60162-60070i199001-199305
sub60162-60071
main60162-60350i199605-199607
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
main61607-60020i199001-199801
main61607-60020i199305-199801
main61607-60040i199001-199801
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
main61608-60070i199305-199801
main61608-60070i199001-199801
main61608-60080i199001-199801
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
main61645-60020i199001-199801
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
main61646-60030i199001-199501
sub61646-60031
main61646-60031i199501-199801
61659BRETAINER, REAR DOOR OPEN SWITCH SET, RH
main61659-60010i199001-199801
61659CRETAINER, REAR DOOR OPEN SWITCH SET, LH
main61659-60010i199001-199801
61665BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH
main61665-60010i199108-199801
61666BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, LH
main61665-60010i199108-199801
61703GPANEL SUB-ASSY, QUARTER, INNER RH
main61703-60010i199305-199409
sub61703-60011
main61703-60020i199001-199409
sub61703-60110
main61703-60050i199001-199501
sub61703-60051
main61703-60051i199409-199801
main61703-60061i199305-199501
sub61703-60140
main61703-60070i199001-199011
sub61703-60071
sub64931-60011
sub93230-56035
main61703-60071i199011-199501
sub61703-60072
main61703-60072i199409-199801
main61703-60100i199409-199801
main61703-60110i199409-199801
main61703-60140i199409-199801
sub61703-60150
sub90950-01126
61704HPANEL SUB-ASSY, QUARTER, INNER LH
main61704-60010i199305-199409
sub61704-60011
main61704-60011i199409-199505
main61704-60020i199001-199409
sub61704-60100
main61704-60040i199001-199501
sub61704-60041
main61704-60041i199001-199801
main61704-60051i199305-199501
sub61704-60120
main61704-60051i199011-199208
sub61704-60120
main61704-60060i199001-199011
sub61704-60061
sub64932-60011
sub93230-56035
main61704-60061i199208-199501
sub61704-60062
main61704-60062i199409-199801
main61704-60090i199505-199801
main61704-60100i199409-199801
main61704-60120i199409-199801
sub61704-60130
sub90950-01126
61711PANEL, ROOF SIDE, OUTER RH
main61711-60010i199001-199801
61712PANEL, ROOF SIDE, OUTER LH
main61712-60010i199001-199801
61733APANEL, ROOF SIDE, INNER FRONT RH
main61733-60010i199001-199801
61734APANEL, ROOF SIDE, INNER FRONT LH
main61734-60010i199001-199801
9011908093
main90119-08093
9017908102
main90179-08102
9033320001
main90333-20001
9095001027
main90950-01027
9095001061
main90950-01061
9095001336
main90950-01336
9095001398
main90950-01398
9095001826
main90950-01826

48 parts on this diagram · 4 diagrams in section
