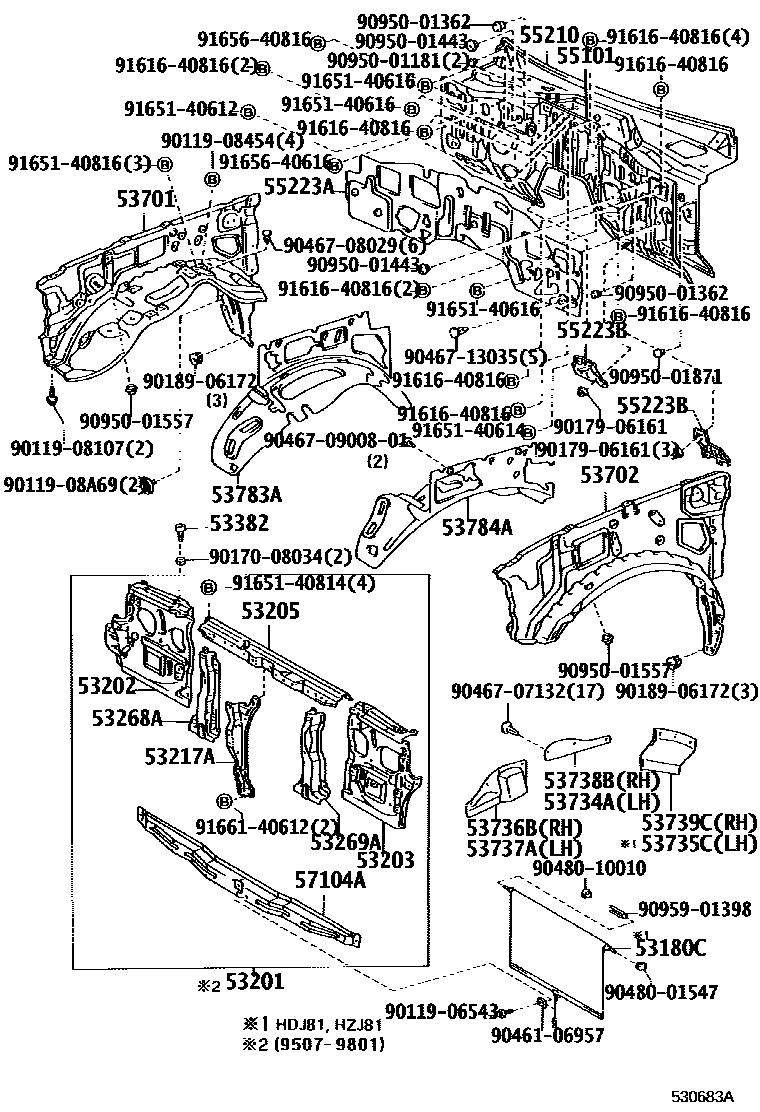

FRONT FENDER APRON & DASH PANEL
53180CSHUTTER ASSY, RADIATOR
53201SUPPORT SUB-ASSY, RADIATOR
***
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53217ABRACE, HOOD LOCK SUPPORT
53268AREINFORCEMENT, RADIATOR MOUNTING, RH
53269AREINFORCEMENT, RADIATOR MOUNTING, LH
53382BUMPER, HOOD, FRONT
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53734ASEAL, FRONT FENDER APRON TO FRAME, NO.2 LH
53735CSEAL, FRONT FENDER APRON TO FRAME, NO.3 LH
53736BSEAL, FRONT FENDER APRON TO FRAME, NO.1 RH
53737ASEAL, FRONT FENDER APRON TO FRAME, NO.1 LH
53738BSEAL, FRONT FENDER APRON TO FRAME, NO.2 RH
53739CSEAL, FRONT FENDER APRON TO FRAME, REAR
53783AINSULATOR, APRON FRONT FENDER, RH
53784AINSULATOR, APRON FRONT FENDER, LH
55101PANEL SUB-ASSY, DASH
sub55101-6B640
sub91656-40616
sub90950-01882
sub90950-01882
sub55101-60591
sub91656-40616
sub91656-40616
sub91656-40616
sub91656-40616
sub91656-40616
sub90950-01882
55210INSULATOR ASSY, DASH PANEL
55223AINSULATOR, DASH PANEL, OUTER
55223BINSULATOR, DASH PANEL HEAT, NO.1
57104AMEMBER SUB-ASSY, FRONT CROSS
9011906543
main90119-06543
9011908107
main90119-08107
9011908454
main90119-08454
9011908A69
main90119-08A69
9017008034
main90170-08034
9017906161
main90179-06161
9018906172
main90189-06172
9046106957
main90461-06957
9046707132
main90467-07132
9046708029
main90467-08029
904670900801
main90467-0900801
9046713035
main90467-13035
9048001547
main90480-01547
9048010010
main90480-10010
9095001181
main90950-01181
9095001362
main90950-01362
9095001443
main90950-01443
9095001557
main90950-01557
9095001871
main90950-01871
9095901398
main90959-01398
9161640816
main91616-40816
9165140612
main91651-40612
9165140614
main91651-40614
9165140616
main91651-40616
9165140814
main91651-40814
9165140816
main91651-40816
9165640616
main91656-40616
9165640816
main91656-40816
9166140612
main91661-40612
53 parts on this diagram · 1 diagram in section
