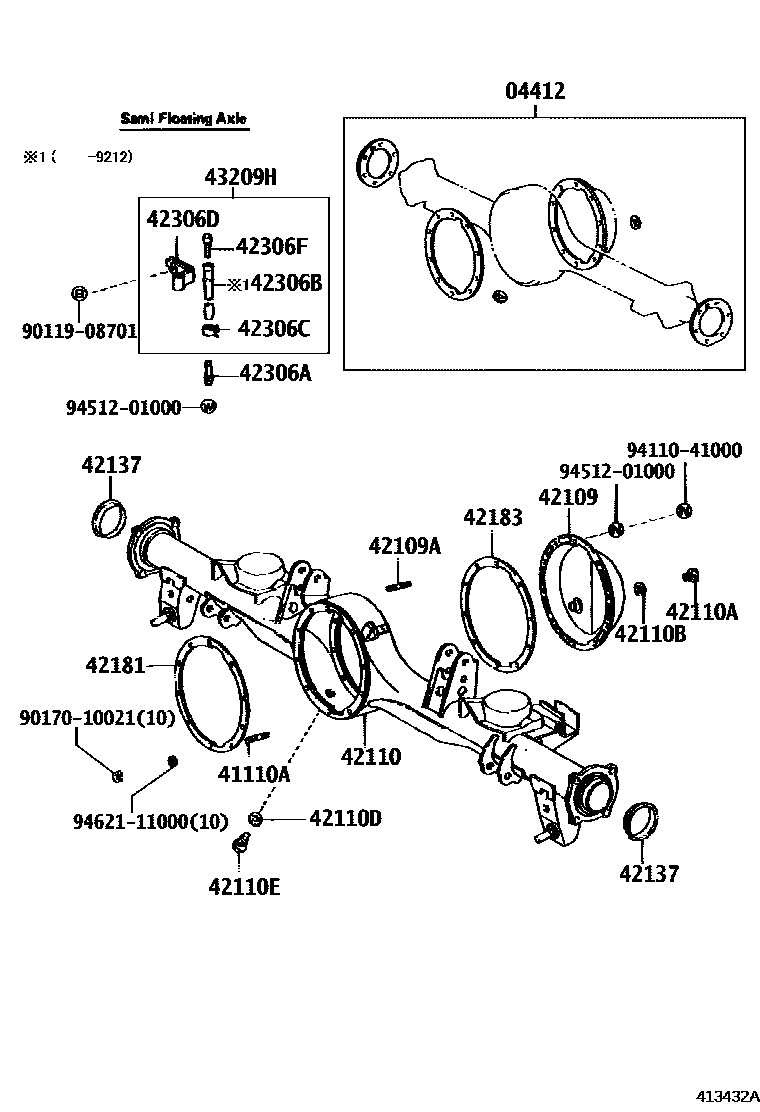

REAR AXLE HOUSING & DIFFERENTIAL

0001 1�� �������� ���� 0002 1�� �������� ���� 0003 1 0004 1������ ����� ���������� 0005 1���������� ��� 0006 1���������� ���

04412GASKET KIT, REAR DIFFERENTIAL CARRIER

main04412-60060iFZJ80,HZJ81..GX,STD199001-199608

main04412-60070iHZJ81..GX199208-199305

main04412-60080iHZJ81..GX199305-199501

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-60300iFJ80,HDJ81199001-199208

sub41110-60301

main41110-60310iFJ80,HDJ81,HZJ81199001-199208

sub41110-60311

main41110-60320iFZJ80..GX199501-199608

sub41110-60321

main41110-60330iFJ80,HDJ81,HZJ81199001-199208

sub41110-60331

main41110-60340iFJ80,HDJ81199001-199208

sub41110-60341

main41110-60350iFZJ80..LUB;HDJ81,HZJ81199208-199801

sub41110-60351

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-10074×4iFZJ80..VX199208-199501

main90116-10075×3iFZJ80..VX199208-199501

main90116-10124×2iHZJ81..GX199208-199305

main90116-10167iFZJ80..VX199208-199501

42109COVER SUB-ASSY, REAR AXLE HOUSING

main42109-60070iFZJ80,HZJ81..GX,STD199001-199608

42109ABOLT (FOR REAR AXLE HOUSING COVER SETTING)

main90116-10076×10iFZJ80,HZJ81..GX,STD199001-199608

42110HOUSING ASSY, REAR AXLE

main42110-60320iHZJ81199001-199208

sub42110-60460

main42110-60321iHZJ81199208-199305

main42110-60322iFZJ80,HZJ81..GX199305-199501

main42110-60323iHZJ81..MTM199608-199801

main42110-60330iHZJ81199001-199208

sub42110-60470

main42110-60331iHZJ81199208-199305

sub42110-60332

main42110-60333iHZJ81..MTM199608-199801

main42110-60340iFJ80,HDJ81199001-199208

sub42110-60480

main42110-60341iHZJ81..GX199208-199305

main42110-60342iFZJ80,HDJ81,HZJ81..LUB199305-199501

main42110-60343iFZJ80,HDJ81,HZJ81..LUB199501-199608

main42110-60350iHZJ81199001-199208

sub42110-60490

main42110-60351iHZJ81199208-199305

main42110-60352iHZJ81..GX199305-199501

main42110-60353iHZJ81..GX199501-199608

main42110-60360iFJ80,HDJ81199001-199208

sub42110-60500

main42110-60361iHZJ81..GX199208-199305

main42110-60362iFZJ80..VXL;HDJ81,HZJ81..LUB199305-199501

main42110-60363iFZJ80,HDJ81,HZJ81..LUB199501-199608

main42110-60370iHZJ81..GX199208-199305

main42110-60371iHZJ81..GX199305-199501

main42110-60372iFZJ80,HDJ81,HZJ81199501-199801

main42110-60450iHZJ81..GX199208-199305

main42110-60451iFZJ80..VXL;HDJ81,HZJ81..LUB199305-199501

main42110-60452iHZJ81;FZJ80,HDJ81..LUB199501-199608

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18006iFJ80,FZJ80,HDJ81,HZJ81199001-199801

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iFJ80,FZJ80,HDJ81,HZJ81199001-199801

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iFJ80,FZJ80,HDJ81,HZJ81199001-199801

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18040iFJ80,FZJ80,HDJ81,HZJ81199001-199801

42137COLLAR, REAR AXLE HOUSING SIDE

main42137-55010×2iHZJ81..MTM199608-199801

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-60040iHDJ81..MTM199001-199208

sub42181-60090

main42181-60050iHDJ81..MTM199001-199208

main42181-60060iHZJ81..GX199305-199501

main42181-60070iFJ80,HDJ81,HZJ81199012-199208

42183GASKET, REAR AXLE HOUSING COVER

main42183-35010iFZJ80,HZJ81..GX,STD199001-199608

42306AUNION (FOR REAR AXLE BREATHER HOUSE)

main90404-51052iFJ80,FZJ80,HDJ81,HZJ81199001-199801

42306BHOSE (FOR REAR AXLE BREATHER)

main90445-12035iFJ80,HDJ81199003-199208

main90445-12098iFZJ80,HDJ81,HZJ81199210-199212

main95333-06060iFZJ80,HDJ81,HZJ81199208-199210

42306CCLIP, HOSE (FOR REAR AXLE BREATHER HOSE)

main96132-30600iFJ80,FZJ80,HDJ81,HZJ81199001-199801

sub96132-51100

42306DCLAMP (FOR REAR AXLE BRATHER HOSE)

main90949-01678iFJ80,FZJ80,HDJ81,HZJ81199001-199801

42306FPLUG, BREATHER (FOR REAR AXLE)

main90930-03097iFJ80,FZJ80,HDJ81,HZJ81199001-199801

43209HHOSE, FRONT AXLE BREATHER

main43209-60050iFJ80,HDJ81199003-199201

main43209-60120iFJ80,HDJ81199003-199208

9011908701

main90119-08701

9017010021

main90170-10021

9411041000

main94110-41000

9451201000

main94512-01000

9462111000

main94621-11000

24 parts on this diagram · 6 diagrams in section
