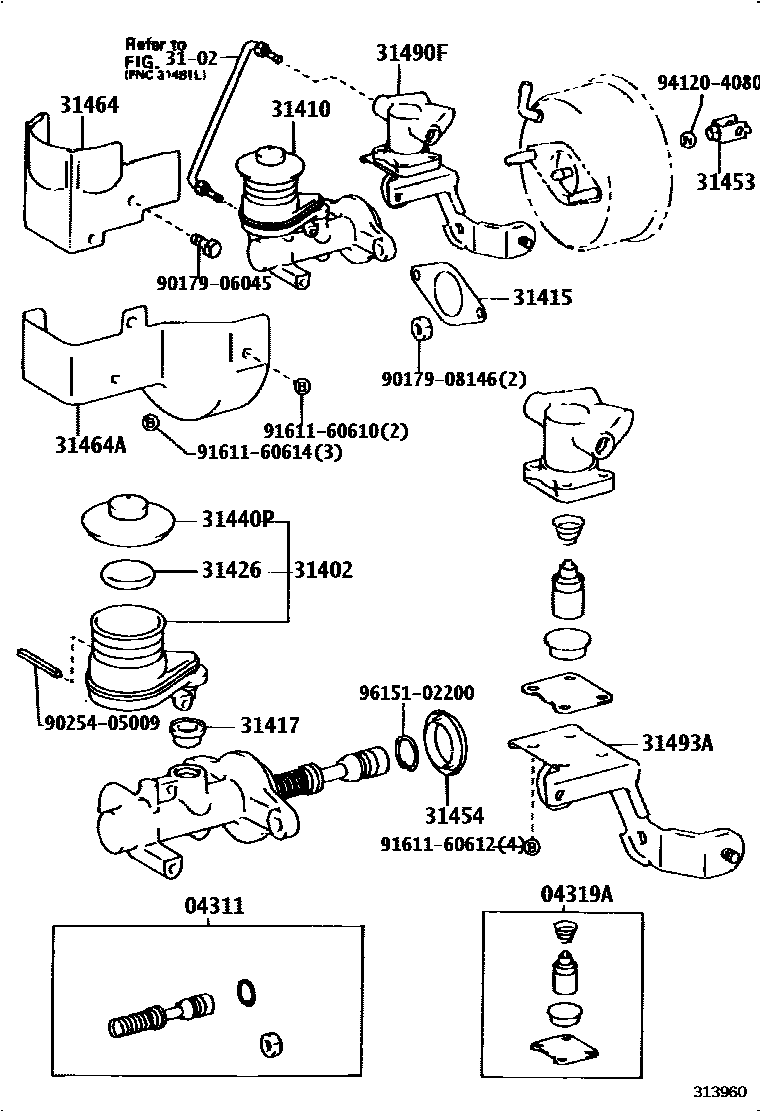

CLUTCH MASTER CYLINDER

0001 1 0003 1 0005 1 0006 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-60100iHZJ81..MTM199001-199108

main04311-60110iHDJ81,HZJ81..MTM..(GX,VX)199108-199501

04319ACYLINDER KIT, CLUTCH ACCUMULATOR

main04319-36011iHDJ81..MTM199001-199009

main04319-60020iHZJ81..STD199108-199305

main04319-60030iHDJ81..MTM199009-199108

3102

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-35030iHZJ81..MTM199001-199108

main31402-60030iHDJ81..MTM199001-199108

31410CYLINDER ASSY, CLUTCH MASTER

main31401-60070iHDJ81..MTM199001-199108

main31410-60370iHZJ81..STD199108-199305

sub31410-60371

main31410-60372iHDJ81,HZJ81..MTM199501-199801

main31410-60550iFZJ80..MTM199501-199801

31415GASKET, CLUTCH MASTER CYLINDER

main31415-60020iHZJ81..STD199108-199501

main47275-14010iHDJ81,HZJ81..MTM..(GX,VX)199108-199501

sub47275-26010

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iFZJ80,HDJ81,HZJ81..MTM199001-199801

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iFZJ80,HDJ81,HZJ81..MTM199001-199801

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iFZJ80,HDJ81,HZJ81..MTM199001-199801

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28020iFZJ80..MTM199501-199801

main31404-36031iHZJ81..STD199108-199305

main31453-35010iHDJ81,HZJ81..MTM199501-199801

main31453-60020iHDJ81..MTM199001-199108

31454BOOT, CLUTCH MASTER CYLINDER

main31454-60020iHZJ81..MTM199001-199108

main47265-20050iHDJ81..MTM199001-199108

31464INSULATOR, CLUTCH MASTER CYLINDER HEAT

main31464-60030iHDJ81..MTM199001-199108

31464AINSULATOR, CLUTCH MASTER CYLINDER HEAT, NO.2

main31464-60060iHDJ81..MTM199001-199108

31490FACCUMULATOR ASSY, MASTER CYLINDER

main31490-12010iHDJ81,HZJ81..MTM199501-199801

main31490-60020iHZJ81..MTM199001-199108

sub90430-16011

main31490-60040iHDJ81..MTM199001-199107

main31490-60041iHDJ81,HZJ81..MTM..(GX,VX)199108-199501

31493ABRACKET, CLUTCH ACCUMULATOR

main31493-27030iHZJ81..MTM199001-199108

main31493-60020iHDJ81,HZJ81..MTM..(GX,VX)199108-199501

9017906045

main90179-06045

9017908146

main90179-08146

9025405009

main90254-05009

9161160610

main91611-60610

9161160612

main91611-60612

9161160614

main91611-60614

9412040800

main94120-40800

9615102200

main96151-02200

23 parts on this diagram · 4 diagrams in section
