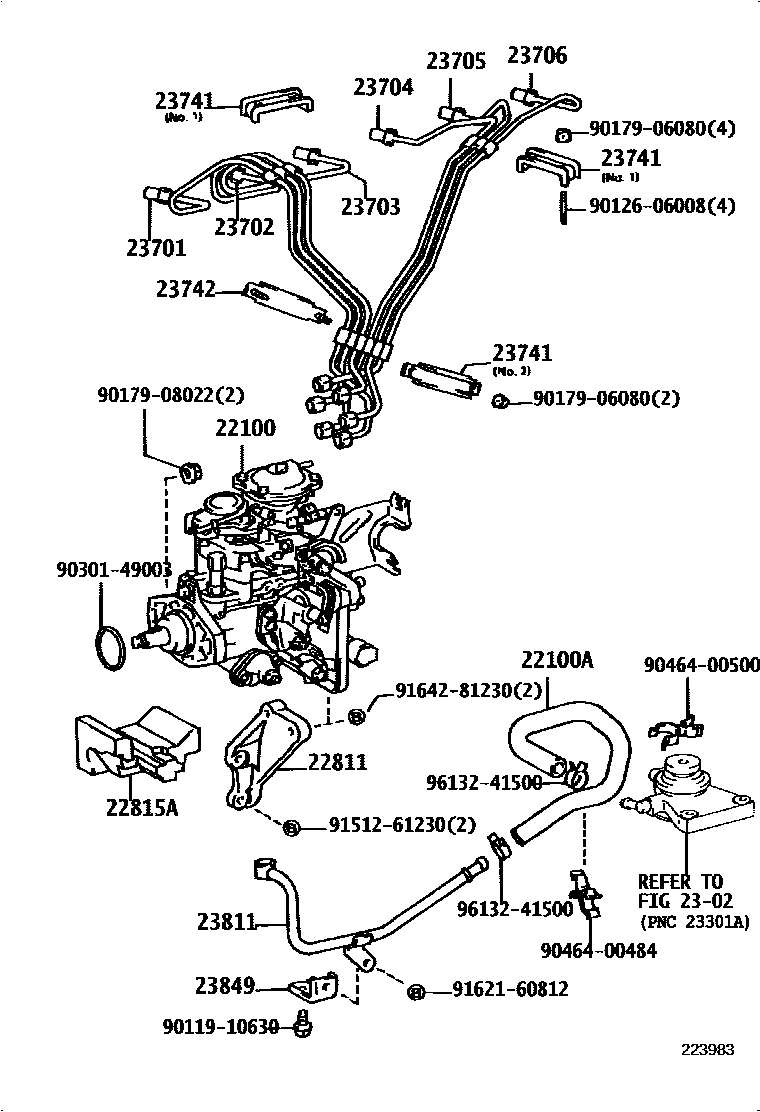

INJECTION PUMP ASSEMBLY
22100PUMP ASSY, INJECTION OR SUPPLY
22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
22811STAY, INJECTION PUMP, NO.1
22815AINSULATOR, INJECTION PUMP
2302
23701PIPE SUB-ASSY, INJECTION, NO.1
23702PIPE SUB-ASSY, INJECTION, NO.2
23703PIPE SUB-ASSY, INJECTION, NO.3
23704PIPE SUB-ASSY, INJECTION, NO.4
23705PIPE SUB-ASSY, INJECTION, NO.5
23706PIPE SUB-ASSY, INJECTION, NO.6
23741CLAMP, INJECTION PIPE, NO.1
23742CLAMP, INJECTION PIPE, NO.2
23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23849SUPPORT, FUEL
9011910630
main90119-10630
9012606008
main90126-06008
9017906080
main90179-06080
9017908022
main90179-08022
9030149003
main90301-49003
9046400484
main90464-00484
9046400500
main90464-00500
9151261230
main91512-61230
9162160812
main91621-60812
9164281230
main91642-81230
9613241500
main96132-41500
26 parts on this diagram · 5 diagrams in section
