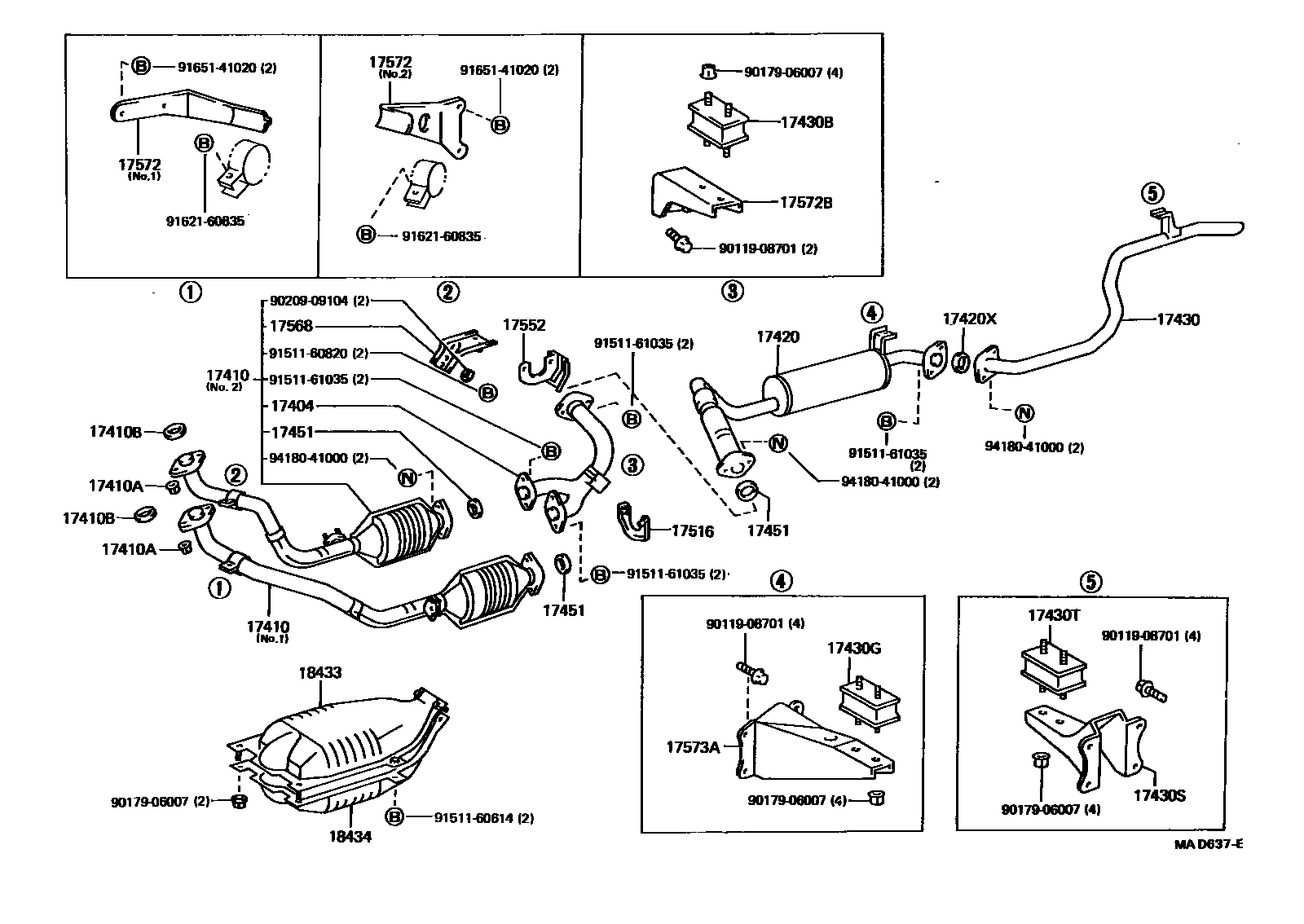

EXHAUST PIPE
17404PIPE SUB-ASSY, EXHAUST FORKED
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17430BCUSHION, EXHAUST TAILPIPE(FOR FRONT)
17430GCUSHION, EXHAUST TAILPIPE(FOR CENTER)
17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)
17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)
17451GASKET, EXHAUST PIPE
FRONT
FRONT
FRONT
REAR
REAR
17516RETAINER, EXHAUST PIPE, NO.2
17552INSULATOR, EXHAUST PIPE HEAT, NO.2
17568STAY, EXHAUST PIPE SUPPORT
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
18433COVER, CONVERTER INSULATOR, UPPER
18434COVER, CONVERTER INSULATOR, LOWER
9011908701
main90119-08701
9017906007
main90179-06007
9020909104
main90209-09104
9151160614
main91511-60614
9151160820
main91511-60820
9151161035
main91511-61035
9162160835
main91621-60835
9165141020
main91651-41020
9418041000
main94180-41000
29 parts on this diagram · 4 diagrams in section
