HEATING & AIR CONDITIONING - WATER PIPING

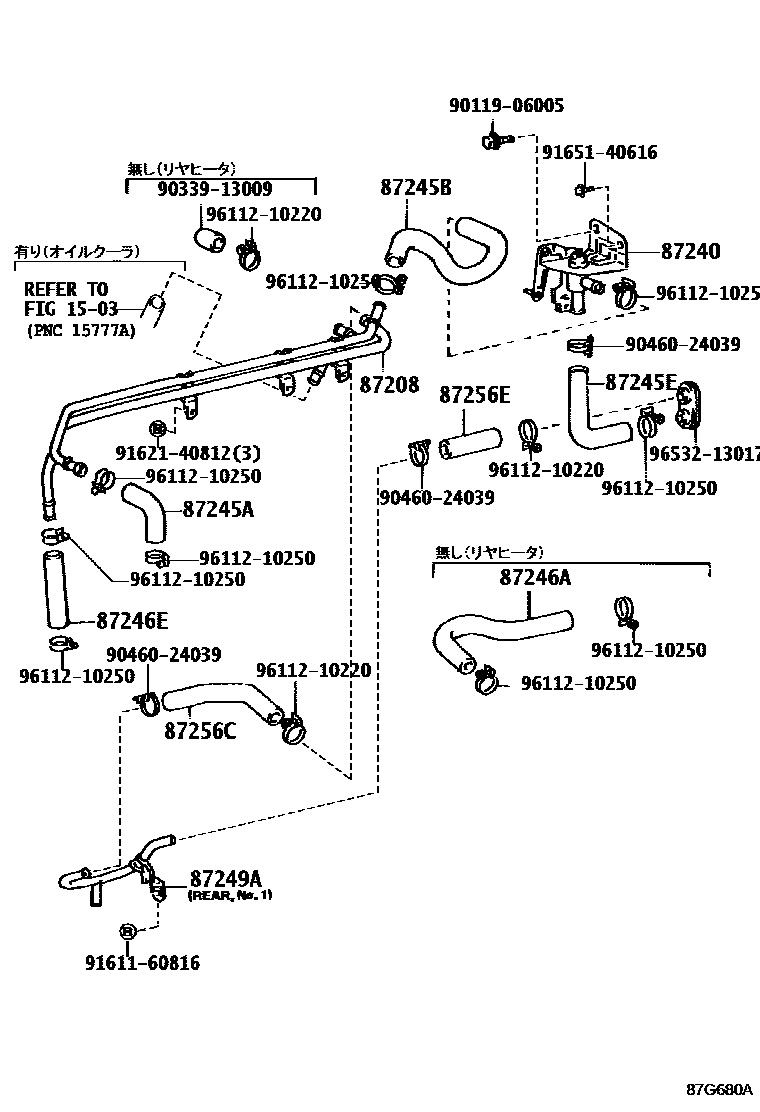

0001 1 0002 1 0003 1 0004 1REAR WATER PIPING

1503

87208PIPE SUB-ASSY, HEATER WATER

main87208-90A13iHJ61198708-199001

main87208-90K06iFJ62198708-199001

87240VALVE ASSY, HEATER WATER

main87240-90A00iFJ62,HJ6#198708-199001

87245AHOSE, HEATER WATER, INLET A

main87245-14500iHJ61198708-199001

main87245-90K53iFJ62198708-199001

main99556-30500iHJ60198708-199001

87245BHOSE, HEATER WATER, INLET B

main87245-90A27iFJ62198708-199001

main87245-90A37iHJ61198708-199001

87245EHOSE, HEATER WATER, INLET E

main87245-90A00iFJ62,HJ6#198708-199001

sub87245-14500

87246AHOSE, HEATER WATER, OUTLET A

main87245-90A28iFJ62..IV4198708-199001

87246EHOSE, HEATER WATER, OUTLET E

main87245-90A19iHJ60198708-199001

main87245-90A36iHJ61198708-199001

main87245-90K36iFJ62198708-199001

87249APIPE, HEATER WATER OUTLET, A

main87248-90A16iHJ60198708-198808

FRONT

main87248-90A24iFJ62,HJ6#..CBU198708-199001

REAR NO.2

main87248-90A25iFJ62..CBU;HJ6#..MTM198708-199001

REAR NO.1

main87248-90A27iHJ6#..ATM198708-199001

REAR NO.1

main87248-90A31iHJ60198808-199001

FRONT

87256CHOSE, REAR HEATER WATER OUTLET, C

main87245-90A30iFJ62..CBU198708-199001

main87245-90A33iHJ60..MTM198708-199001

main87245-90A34iHJ60..ATM198708-199001

main87245-90A44iHJ61..MTM198708-199001

main87245-90A45iHJ61..ATM198708-199001

sub87245-90A34

87256EHOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)

main99552-30100iHJ60198708-199001

sub99556-30100

main99556-30100iFJ62,HJ61..CBU198708-199001

9011906005

main90119-06005

9033913009

main90339-13009

9046024039

main90460-24039

9161160816

main91611-60816

9162140812

main91621-40812

9165140616

main91651-40616

9611210220

main96112-10220

9611210250

main96112-10250

9653213017

main96532-13017

20 parts on this diagram · 4 diagrams in section
