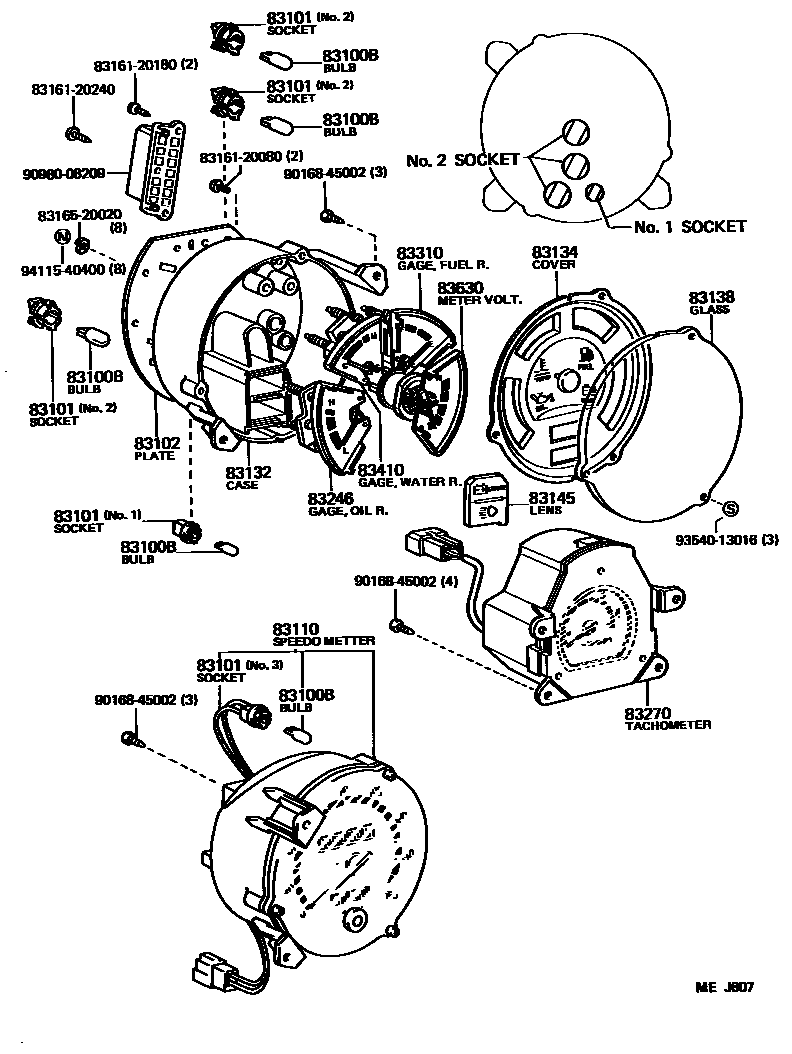

METER

0001 1 0002 1 0003 1

83100BBULB, COMBINATION METER, NO.1

main90981-11018iFJ62198708-199001

main90981-11022iHJ6#198708-199001

main99132-12034iFJ62198708-199001

main99134-12030iHJ6#198708-199001

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040iFJ62198708-199001

main83101-20040iFJ62,HJ6#198708-199001

main83101-36010iFJ62,HJ6#198708-199001

main83101-95020iHJ6#198708-199001

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-90A05iFJ62198708-199001

main83247-90A06iHJ6#198708-199001

83110SPEEDOMETER ASSY

main83110-90A41iFJ62..CBR198708-199001

main83110-90A42iHJ6#198708-199001

main83110-90A48iFJ62..EFI198808-199001

83132CASE, COMBINATION METER

main83132-90A03iFJ62,HJ6#198708-199001

83134COVER, COMBINATION METER, NO.1

main83134-90A06iFJ62,HJ6#198708-199001

83138GLASS, SPEEDOMETER

main83138-90A00iFJ62,HJ6#198708-199001

83145LENS, METER, NO.1

main83145-90A02iFJ62,HJ6#198708-199001

83246GAUGE, OIL PRESSURE RECEIVER

main83246-90A05iFJ62198708-199001

main83246-90A06iHJ6#198708-199001

83270TACHOMETER ASSY, ENGINE

main83270-90A10iFJ62..GX;FJ62..IV4198708-199001

main83270-90A12iHJ60..GX198708-199001

main83270-90A14iHJ61198708-199001

main83270-90A15iFJ62..EFI198808-199001

83310GAGE ASSY, FUEL RECEIVER

main83243-90A03iFJ62198708-199001

main83243-90A04iHJ6#198708-199001

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-90A02iFJ62,HJ6#198708-199001

83630VOLTMETER ASSY

main83245-90A03iFJ62198708-199001

main83245-90A04iHJ6#198708-199001

8316120080CASE, COMBINATION METER MIRROR, NO.1

main83161-20080

8316120180CASE, COMBINATION METER MIRROR, NO.1

main83161-20180

8316120240CASE, COMBINATION METER MIRROR, NO.1

main83161-20240

8316520020MIRROR, COMBINATION METER, NO.2

main83165-20020

9016845002

main90168-45002

9098008209

main90980-08209

9354013016

main93540-13016

9411540400

main94115-40400

21 parts on this diagram · 3 diagrams in section
