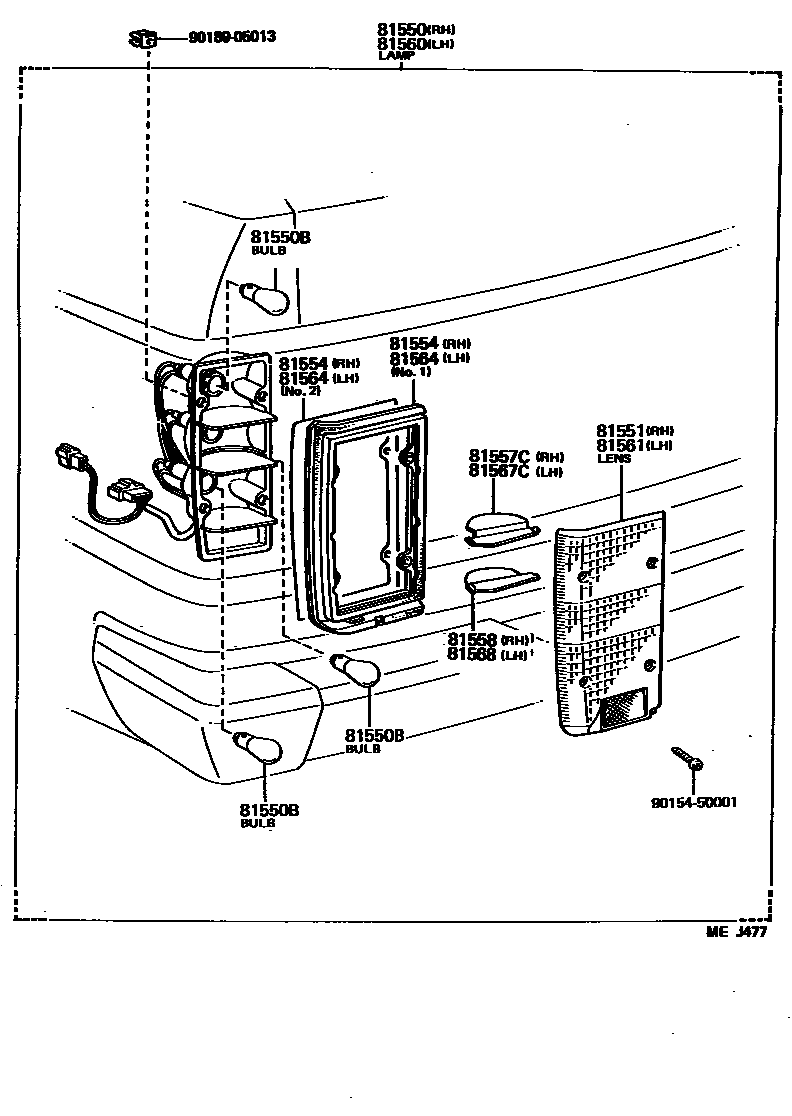

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-60183iFJ62..IV4198708-199001

main81550-90A12iFJ62..CBU198708-199001

main81550-90A13iHJ6#198708-199001

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-16015×2iHJ6#198708-199001

main99132-11230×4iFJ62198708-199001

main99132-21210×2iFJ62198708-199001

main99134-11250×4iHJ6#198708-199001

81551LENS, REAR COMBINATION LAMP, RH

main81551-26040iFJ62..IV4198708-199001

sub81551-60180

main81551-90A00iFJ62,HJ6#..CBU198708-199001

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-26040iFJ62..IV4198708-199001

main81552-90A00iFJ62,HJ6#..CBU198708-199001

main81554-90A12iFJ62,HJ6#..CBU198708-199001

81557CCOVER, REAR COMBINATION LAMP, RH

main81557-26040×2iFJ62..IV4198708-199001

main81557-90A00iFJ62,HJ6#..CBU198708-199001

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81558-90A00iFJ62,HJ6#..CBU198708-199001

81560LAMP ASSY, REAR COMBINATION, LH

main81560-60083iFJ62..IV4198708-199001

main81560-90A12iFJ62..CBU198708-199001

main81560-90A13iHJ6#198708-199001

81561LENS, REAR COMBINATION LAMP, LH

main81561-26040iFJ62..IV4198708-199001

sub81561-60080

main81561-90A00iFJ62,HJ6#..CBU198708-199001

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81562-26040iFJ62..IV4198708-199001

main81562-90A00iFJ62,HJ6#..CBU198708-199001

main81564-90A12iFJ62,HJ6#..CBU198708-199001

81567CCOVER, REAR COMBINATION LAMP, LH

main81557-26040×2iFJ62..IV4198708-199001

main81557-90A00iFJ62,HJ6#..CBU198708-199001

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81558-90A00iFJ62,HJ6#..CBU198708-199001

9015450001

main90154-50001

9018905013

main90189-05013

13 parts on this diagram · 2 diagrams in section
