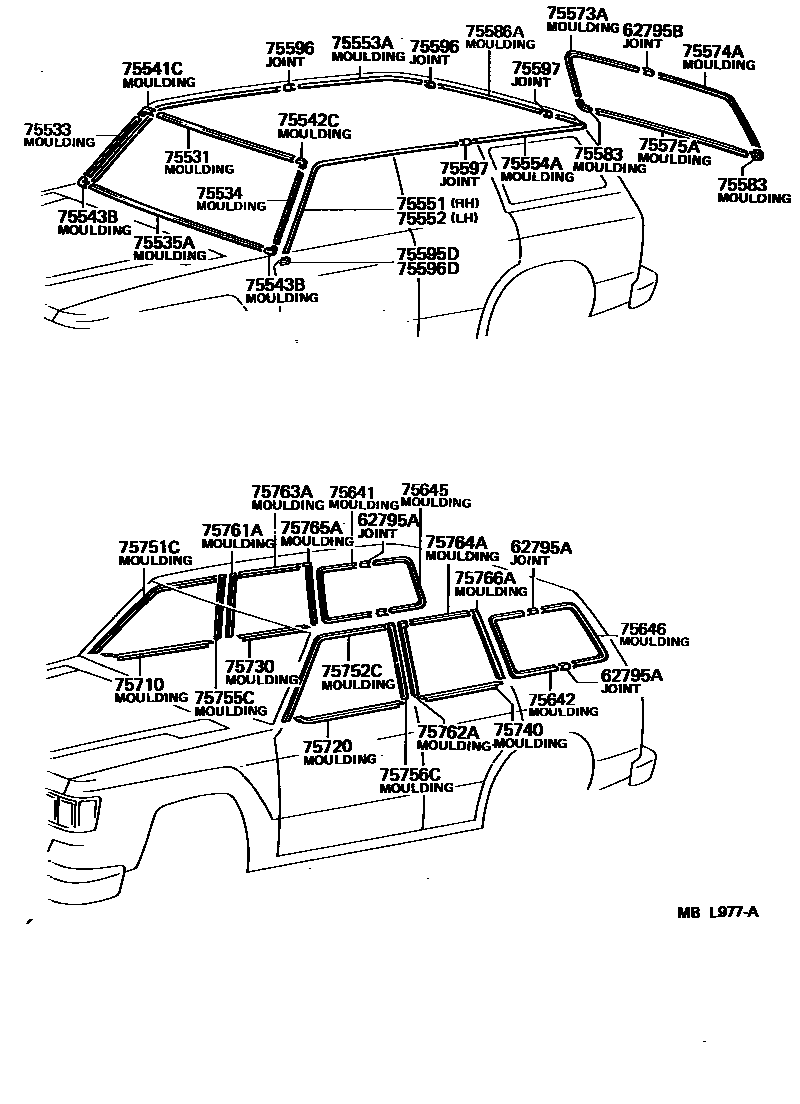

MOULDING

62795ACOVER, QUARTER WINDOW MOULDING JOINT, RH

main62795-90A00×4iFJ62,HJ6#..(GX,VX)..(CBR,DSL,TD)198708-199001

62795BCOVER, QUARTER WINDOW MOULDING JOINT, LH

main62795-90A00iFJ62,HJ6#..HRF198708-199001

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-90A00iFJ62,HJ6#..GX,VX198708-199001

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-90A00iFJ62,HJ6#..GX,VX198708-199001

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-90A00iFJ62,HJ6#..GX,VX198708-199001

75535AMOULDING, WINDSHIELD, OUTSIDE LOWER

main75535-90A00iFJ62,HJ6#..GX,VX198708-199001

75541CCOVER, WINDSHIELD MOULDING JOINT, UPPER RH

main75541-90A00iFJ62,HJ6#..GX,VX198708-199001

75542CCOVER, WINDSHIELD MOULDING JOINT, UPPER LH

main75541-90A00iFJ62,HJ6#..GX,VX198708-199001

75543BCOVER, WINDSHIELD MOULDING JOINT, LOWER

main75543-90A00×2iFJ62,HJ6#..GX,VX198708-199001

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75505-90A00iFJ62,HJ6#..GX,VX198708-199001

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75506-90A00iFJ62,HJ6#..GX,VX198708-199001

75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75553-90A00iFJ62,HJ6#..GX,VX198708-199001

75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75554-90A00iFJ62,HJ6#..GX,VX198708-199001

75573AMOULDING, BACK WINDOW, OUTSIDE RH

main75812-90A00iFJ62,HJ6#..HRF198708-199001

75574AMOULDING, BACK WINDOW, OUTSIDE LH

main75813-90A00iFJ62,HJ6#..HRF198708-199001

75575AMOULDING, BACK WINDOW, OUTSIDE LOWER

main75575-90A00iFJ62,HJ6#..HRF198708-199001

75583COVER, BACK WINDOW MOULDING JOINT, LOWER

main75583-90A00×2iFJ62,HJ6#..HRF198708-199001

75586AMOULDING, ROOF DRIP, REAR

main75586-90A00iFJ62,HJ6#..GX,VX198708-199001

75595DCOVER, ROOF DRIP SIDE MOULDING, FRONT RH

main75595-95J00iFJ62,HJ60..STD198708-199001

75596COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH

main75596-90A00×2iFJ62,HJ6#..GX,VX198708-199001

sub75502-60010

75596DCOVER, ROOF DRIP SIDE MOULDING, FRONT LH

main75596-95J00iFJ62,HJ60..STD198708-199001

75597COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH

main75596-90A00×2iFJ62,HJ6#..GX,VX198708-199001

sub75502-60010

75641MOULDING, QUARTER WINDOW, OUTSIDE FRONT RH

main75641-90A00iFJ62,HJ6#..(GX,VX)..(CBR,DSL,TD)198708-199001

75642MOULDING, QUARTER WINDOW, OUTSIDE FRONT LH

main75642-90A00iFJ62,HJ6#..(GX,VX)..(CBR,DSL,TD)198708-199001

75645MOULDING, QUARTER WINDOW, OUTSIDE REAR RH

main75645-90A00iFJ62,HJ6#..(GX,VX)..(CBR,DSL,TD)198708-199001

75646MOULDING, QUARTER WINDOW, OUTSIDE REAR LH

main75646-90A00iFJ62,HJ6#..(GX,VX)..(CBR,DSL,TD)198708-199001

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-90A02iFJ62,HJ6#..GX,VX198708-199001

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-90A02iFJ62,HJ6#..GX,VX198708-199001

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-90A01iFJ62,HJ6#..GX,VX198708-199001

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-90A01iFJ62,HJ6#..GX,VX198708-199001

75751CMOULDING, FRONT DOOR WINDOW FRAME, FRONT RH

main75751-90A00iFJ62,HJ6#..GX,VX198708-199001

75752CMOULDING, FRONT DOOR WINDOW FRAME, FRONT LH

main75752-90A00iFJ62,HJ6#..GX,VX198708-199001

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-90A00iFJ62,HJ6#..GX,VX198708-199001

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-90A00iFJ62,HJ6#..GX,VX198708-199001

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-90A00iFJ62,HJ6#..GX,VX198708-199001

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-90A00iFJ62,HJ6#..GX,VX198708-199001

75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-90A00iFJ62,HJ6#..GX,VX198708-199001

75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-90A00iFJ62,HJ6#..GX,VX198708-199001

75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH

main75765-90A00iFJ62,HJ6#..GX,VX198708-199001

75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH

main75766-90A00iFJ62,HJ6#..GX,VX198708-199001

75851MOULDING, ROCKER PANEL, RH

75852MOULDING, ROCKER PANEL, LH

75867ACLIP, ROCKER PANEL MOULDING

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

9018904001

main90189-04001

9353064020

main93530-64020

46 parts on this diagram · 1 diagram in section
