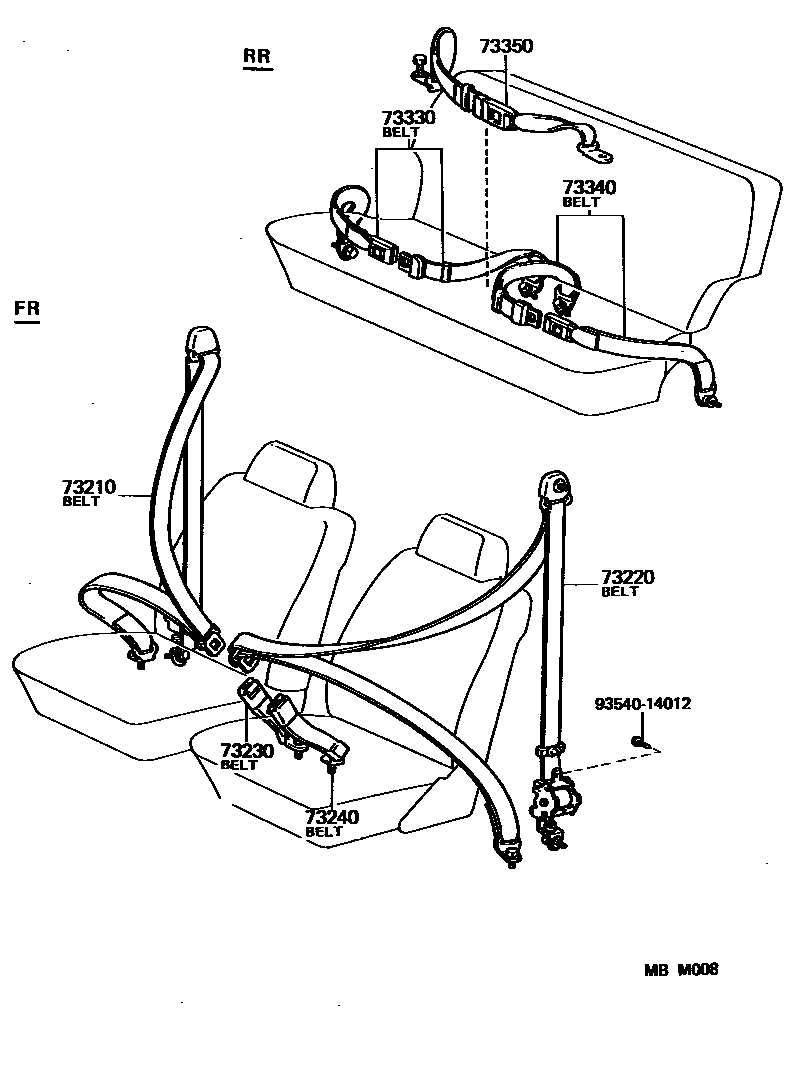

SEAT BELT

0001 1 0002 1

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-90A22-03iFJ62,HJ6#..GX,VX198708-199001

GRAY,TRIM1#

sub73210-90A22

main73210-90A22-06iFJ62,HJ6#198708-199001

SEPIA BROWN,TRIM4#

sub73210-90A22

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-90A11-03iFJ62,HJ6#..GX,VX198708-199001

GRAY,TRIM1#

sub73220-90A11

main73220-90A11-06iFJ62,HJ6#198708-199001

SEPIA BROWN,TRIM4#

sub73220-90A11

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-90A19-06iFJ62,HJ6#198708-199001

SEPIA BROWN,TRIM4#

sub73230-90A19

main73230-90A19-13iFJ62,HJ6#..GX,VX198708-199001

SHADOW GRAY,TRIM1#

sub73230-90A19

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-90A19-06iFJ62,HJ6#198708-199001

SEPIA BROWN,TRIM4#

sub73230-90A19

main73230-90A19-13iFJ62,HJ6#..GX,VX198708-199001

SHADOW GRAY,TRIM1#

sub73230-90A19

73330BELT ASSY, REAR SEAT LAP TYPE, RH

main73330-90A34-03iFJ62,HJ60..GX198708-199001

GRAY,TRIM1#

main73330-90A34-06iFJ62,HJ60..CBU..(CBR,DSL)198708-199001

SEPIA BROWN,TRIM4#

main73330-90A35-03iHJ61198708-199001

GRAY,TRIM1#

sub73330-90A35

main73330-90A35-06iHJ61198708-199001

SEPIA BROWN,TRIM4#

sub73330-90A35

main73330-90A38-06iFJ62..IV4198708-199001

SEPIA BROWN,TRIM4#

sub73330-90A38

main73330-90A40-03iFJ62..EFI198808-199001

GRAY,TRIM1#

main73330-90A40-06iFJ62..EFI198808-199001

SEPIA BROWN,TRIM4#

73340BELT ASSY, REAR SEAT LAP TYPE, LH

main73330-90A34-03iFJ62,HJ60..GX198708-199001

GRAY,TRIM1#

main73330-90A34-06iFJ62,HJ60..CBU..(CBR,DSL)198708-199001

SEPIA BROWN,TRIM4#

main73330-90A36-03iHJ61198708-199001

GRAY,TRIM1#

sub73330-90A36

main73330-90A36-06iHJ61198708-199001

SEPIA BROWN,TRIM4#

sub73330-90A36

main73330-90A38-06iFJ62..IV4198708-199001

SEPIA BROWN,TRIM4#

sub73330-90A38

main73340-90A00-03iFJ62..EFI198808-199001

SHADOW GRAY,TRIM1#

sub73340-90A00

main73340-90A00-06iFJ62..EFI198808-199001

SEPIA BROWN,TRIM4#

sub73340-90A00

73350BELT ASSY, REAR SEAT LAP TYPE, CENTER

main73330-90A32-03iFJ62,HJ60..GX198708-199001

GRAY,TRIM1#

main73330-90A32-06iFJ62,HJ60..CBU..(CBR,DSL)198708-199001

SEPIA BROWN,TRIM4#

main73330-90A33-03iFJ62,HJ61..VX198708-199001

GRAY,TRIM1#

sub73330-90A33

main73330-90A33-06iFJ62,HJ61..VX198708-199001

SEPIA BROWN,TRIM4#

sub73330-90A33

main73330-90A39-06iFJ62..IV4198708-199001

SEPIA BROWN,TRIM4#

sub73330-90A39

9354014012

main93540-14012

8 parts on this diagram · 2 diagrams in section
