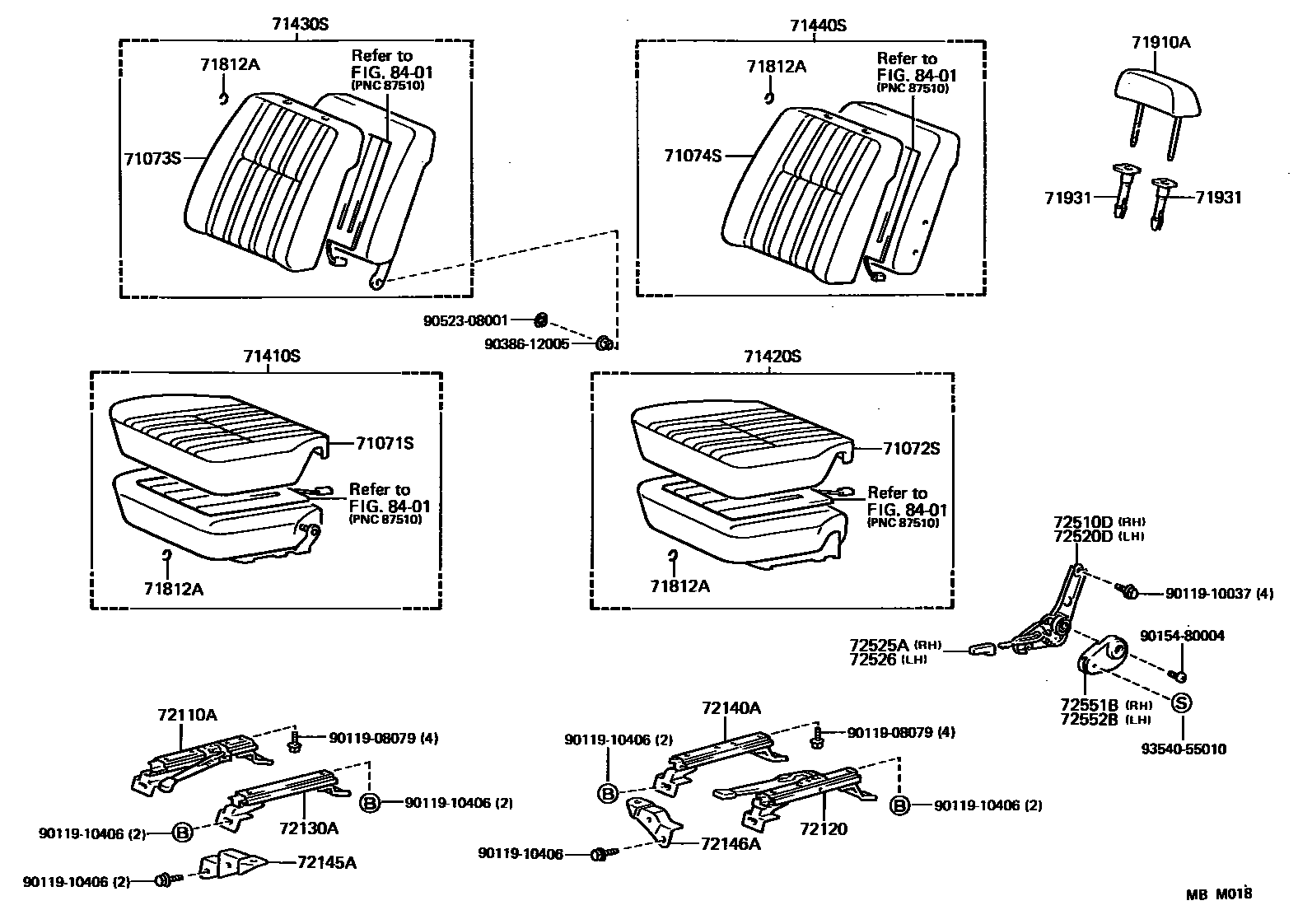

SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-90A44-03iHJ60..GX198708-199001

main71071-90A44-05iHJ60..GX198708-199001

main71071-90A45-03iFJ62,HJ60..GX198708-199001

GRAY,TRIM1#

main71071-90A45-05iFJ62,HJ60..GX198708-199001

BEIGE,TRIM4#

main71071-90A48-03iFJ62,HJ60..GX198708-199001

main71071-90A48-05iFJ62,HJ60..GX198708-199001

main71071-90A49-03iHJ60..GX198708-199001

main71071-90A49-05iHJ60..GX198708-199001

main71071-90A53-06iFJ62,HJ60..STD198708-199001

SEPIA BROWN,TRIM4#

main71071-90A62-03iHJ61198708-199001

main71071-90A62-06iHJ61198708-199001

main71071-90A63-03iFJ62,HJ61..VX198708-199001

SHADOW GRAY,TRIM1#

main71071-90A63-06iFJ62,HJ61..VX198708-199001

SEPIA BAROWN,TRIM4#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71071-90A46-03iHJ60..GX198708-199001

main71071-90A46-05iHJ60..GX198708-199001

main71071-90A47-03iFJ62,HJ60..GX198708-199001

GRAY,TRIM1#

main71071-90A47-05iFJ62,HJ60..GX198708-199001

BEIGE,TRIM4#

main71072-90A27-03iFJ62,HJ60..GX198708-199001

main71072-90A27-05iFJ62,HJ60..GX198708-199001

main71072-90A28-03iHJ60..GX198708-199001

main71072-90A28-05iHJ60..GX198708-199001

main71072-90A34-06iFJ62,HJ60..STD198708-199001

SEPIA BROWN,TRIM4#

main71072-90A35-03iHJ61198708-199001

main71072-90A35-06iHJ61198708-199001

main71072-90A37-03iFJ62,HJ61..VX198708-199001

SHADOW GRAY,TRIM1#

main71072-90A37-06iFJ62,HJ61..VX198708-199001

SEPIA BAROWN,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-90A60-03iHJ60..GX198708-199001

main71073-90A60-05iHJ60..GX198708-199001

main71073-90A61-03iFJ62,HJ60..GX198708-199001

GRAY,TRIM1#

main71073-90A61-05iFJ62,HJ60..GX198708-199001

BEIGE,TRIM4#

main71073-90A79-03iFJ62..EFI198808-199001

SHADOW GRAY,TRIM1#

main71073-90A79-06iFJ62..EFI198808-199001

SEPIA BROWN,TRIM4#

main71073-90A86-03iHJ61198708-199001

main71073-90A86-06iHJ61198708-199001

main71073-90A87-03iHJ61198708-199001

SHADOW GRAY,TRIM1#

sub71073-90A82

main71073-90A87-06iHJ61198708-199001

SEPIA BAROWN,TRIM4#

sub71073-90A82

main71074-90A09-06iFJ62,HJ60..STD198708-199001

SEPIA BROWN,TRIM4#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-90A60-03iHJ60..GX198708-199001

main71073-90A60-05iHJ60..GX198708-199001

main71073-90A61-03iFJ62,HJ60..GX198708-199001

GRAY,TRIM1#

main71073-90A61-05iFJ62,HJ60..GX198708-199001

BEIGE,TRIM4#

main71074-90A09-06iFJ62,HJ60..STD198708-199001

SEPIA BROWN,TRIM4#

main71074-90A14-03iHJ61198708-199001

main71074-90A14-06iHJ61198708-199001

main71074-90A15-03iHJ61198708-199001

SHADOW GRAY,TRIM1#

main71074-90A15-06iHJ61198708-199001

SEPIA BAROWN,TRIM4#

main71074-90A19-03iFJ62..EFI198808-199001

SHADOW GRAY,TRIM1#

main71074-90A19-06iFJ62..EFI198808-199001

SEPIA BROWN,TRIM4#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-90A42-03iHJ60..GX198708-199001

main71410-90A42-05iHJ60..GX198708-199001

main71410-90A43-03iFJ62,HJ60..GX198708-199001

GRAY,TRIM1#

main71410-90A43-05iFJ62,HJ60..GX198708-199001

BEIGE,TRIM4#

main71410-90A44-03iFJ62,HJ60..GX198708-199001

main71410-90A44-05iFJ62,HJ60..GX198708-199001

main71410-90A45-03iHJ60..GX198708-199001

main71410-90A45-05iHJ60..GX198708-199001

main71410-90A49-03iFJ62,HJ60..STD198708-198809

SEPIA BROWN,TRIM4#

sub71410-90A49

main71410-90A49-06iFJ62,HJ60..STD198809-199001

SEPIA BROWN,TRIM4#

sub71410-90A49

main71410-90A54-03iFJ62,HJ61..VX198708-199001

SHADOW GRAY,TRIM1#

main71410-90A54-06iFJ62,HJ61..VX198708-199001

SEPIA BAROWN,TRIM1#

main71410-90A55-03iHJ61198708-199001

main71410-90A55-06iHJ61198708-199001

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-90A40-03iHJ60..GX198708-199001

main71420-90A40-05iHJ60..GX198708-199001

main71420-90A41-03iFJ62,HJ60..GX198708-199001

GRAY,TRIM1#

main71420-90A41-05iFJ62,HJ60..GX198708-199001

BEIGE,TRIM4#

main71420-90A42-03iFJ62,HJ60..GX198708-199001

main71420-90A42-05iFJ62,HJ60..GX198708-199001

main71420-90A43-03iHJ60..GX198708-199001

main71420-90A43-05iHJ60..GX198708-199001

main71420-90A53-03iFJ62,HJ61..VX198708-199001

SHADOW GRAY,TRIM1#

main71420-90A53-06iFJ62,HJ61..VX198708-199001

SEPIA BAROWN,TRIM4#

main71420-90A54-03iHJ61198708-199001

main71420-90A54-06iHJ61198708-199001

main71420-90A55-06iFJ62,HJ60..STD198708-199001

SEPIA BROWN,TRIM4#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-90A52-03iHJ60..GX198708-199001

main71430-90A52-05iHJ60..GX198708-199001

main71430-90A53-03iFJ62,HJ60..GX198708-199001

GRAY,TRIM1#

main71430-90A53-05iFJ62,HJ60..GX198708-199001

BEIGE,TRIM4#

main71430-90A77-06iFJ62,HJ60..STD198708-199001

SEPIA BROWN,TRIM4#

main71430-90A88-03iHJ61198708-199001

SHADOW GRAY,TRIM1#

main71430-90A88-06iHJ61198708-199001

SEPIA BAROWN,TRIM4#

main71430-90A89-03iHJ61198708-199001

main71430-90A89-06iHJ61198708-199001

main71430-90A94-03iFJ62..EFI198808-199001

SHADOW GRAY,TRIM1#

main71430-90A94-06iFJ62..EFI198808-199001

SEPIA BROWN,TRIM4#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-90A53-03iHJ60..GX198708-199001

main71440-90A53-05iHJ60..GX198708-199001

main71440-90A54-03iFJ62,HJ60..GX198708-199001

GRAY,TRIM1#

main71440-90A54-05iFJ62,HJ60..GX198708-199001

BEIGE,TRIM4#

main71440-90A87-03iHJ61198708-199001

SHADOW GRAY,TRIM1#

main71440-90A87-06iHJ61198708-199001

SEPIA BAROWN,TRIM4#

main71440-90A88-03iHJ61198708-199001

main71440-90A88-06iHJ61198708-199001

main71440-90A90-06iFJ62,HJ60..STD198708-199001

SEPIA BROWN,TRIM4#

main71440-90A93-03iFJ62..EFI198808-199001

SHADOW GRAY,TRIM1#

main71440-90A93-06iFJ62..EFI198808-199001

SEPIA BROWN,TRIM4#

71812CLIP (FOR FRONT SEAT CUSHION COVER)

main90468-18071iFJ62,HJ61..VX198708-199001

sub90468-18008

71812ARING, HOG, SMALL (FOR FRONT SEAT)

main90468-18071iFJ62,HJ61..VX198708-199001

sub90468-18008

71910AHEADREST ASSY, FRONT SEAT

main71910-90A01-16iFJ62,HJ60..STD198708-199001

SEPIA BROWN,TRIM4#

sub71910-90A01

main71910-90A08-03iFJ62,HJ60..GX198708-199001

main71910-90A08-05iFJ62,HJ60..GX198708-199001

main71910-90A18-03iFJ62,HJ61..VX198708-199001

SHADOW GRAY,TRIM1#

main71910-90A18-06iFJ62,HJ61..VX198708-199001

SEPIA BROWN,TRIM4#

main71920-90A01-03iFJ62,HJ60..GX198708-199001

main71920-90A01-05iFJ62,HJ60..GX198708-199001

71931SUPPORT, FRONT SEAT HEADREST

main71956-30020-13iFJ62,HJ60..GX198708-199001

sub71956-30020

main71956-30020-56iFJ62,HJ6#..STD,VX198708-199001

sub71956-30020

main71990-30020-13iFJ62,HJ61..VX198708-199001

sub71990-30020

main71990-30020-56iFJ62,HJ6#..STD,VX198708-199001

sub71990-30020

72110ATRACK ASSY, FRONT SEAT, OUTER RH

main72110-90A04iFJ62,HJ60..STD198708-199001

main72110-90A05iFJ62,HJ60..GX198708-199001

main72110-90A09iFJ62,HJ61..VX198708-199001

72120TRACK ASSY, FRONT SEAT, OUTER LH

main72120-90A04iFJ62,HJ60..CBR,DSL198708-199001

main72120-90A06iFJ62..GX198708-199001

72130ATRACK ASSY, FRONT SEAT, INNER RH

main72130-90A03iFJ62,HJ60..STD198708-199001

main72130-90A05iFJ62,HJ60..GX198708-199001

main72130-90A09iFJ62,HJ61..VX198708-199001

72140ATRACK ASSY, FRONT SEAT,INNER LH

main72130-90A07iFJ62..GX198708-199001

main72140-90A00iFJ62,HJ60..CBR,DSL198708-199001

72145ABRACKET, FRONT INNER SEAT TRACK, LOWER FRONT RH

main72145-90A00iFJ62,HJ60..CBR,DSL198708-199001

72146ABRACKET, FRONT INNER SEAT TRACK, LOWER FRONT LH

main72146-90A00iFJ62,HJ60..CBR,DSL198708-199001

72510DADJUSTER ASSY, RECLINING SEAT, OUTER RH

main72510-90A00iFJ62,HJ60..STD198708-199001

72520DADJUSTER ASSY, RECLINING SEAT, OUTER LH

main72520-90A00iFJ62,HJ6#198708-199001

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-14010-56iFJ62,HJ60..STD198708-199001

BROWN,TRIM4#

sub72525-14010

main72525-90A01-03iFJ62,HJ6#..GX,VX198708-199001

GRAY,TRIM1#

sub72525-90A01

main72525-90A01-16iFJ62,HJ6#..GX,VX198708-199001

SEPIA BROWN,TRIM4#

sub72525-90A01

72526HANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-14010-56iFJ62,HJ60..STD198708-199001

BROWN,TRIM4#

sub72526-14010

main72526-90A01-03iFJ62,HJ6#..GX,VX198708-199001

GRAY,TRIM1#

sub72526-90A01

main72526-90A01-16iFJ62,HJ6#..GX,VX198708-199001

SEPIA BROWN,TRIM4#

sub72526-90A01

72551BCOVER, RECLINING HINGE, RH

main72551-90A00-03iFJ62,HJ6#..GX,VX198708-199001

GRAY,TRIM1#

sub72551-90A00

main72551-90A00-16iFJ62,HJ6#198708-199001

SEPIA BROWN,TRIM4#

sub72551-90A00

72552BCOVER, RECLINING HINGE, LH

main72552-90A00-03iFJ62,HJ6#..GX,VX198708-199001

GRAY,TRIM1#

sub72552-90A00

main72552-90A00-16iFJ62,HJ6#198708-199001

SEPIA BROWN,TRIM4#

sub72552-90A00

8401

9011908079

main90119-08079

9011910037

main90119-10037

9011910406

main90119-10406

9015480004

main90154-80004

9038612005

main90386-12005

9052308001

main90523-08001

9354055010

main93540-55010

32 parts on this diagram · 8 diagrams in section
