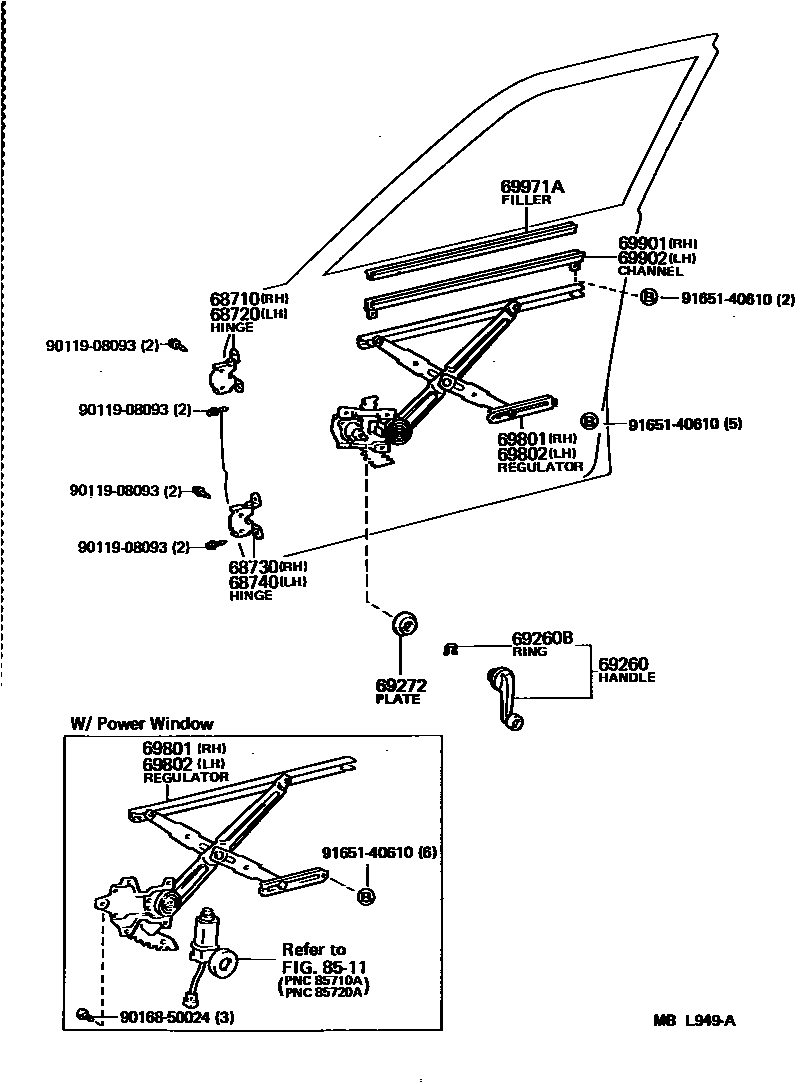

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-14020iFJ62,HJ6#198708-199001

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-14020iFJ62,HJ6#198708-199001

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-14020iFJ62,HJ6#198708-199001

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-14020iFJ62,HJ6#198708-199001

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-12010-03iFJ62,HJ60..GX198708-199001

GRAY,TRIM1#

sub69260-12010

main69260-12010-46iFJ62,HJ60..CBR,DSL198708-199001

BROWN,TRIM4#

sub69260-12010

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iFJ62,HJ60..CBR,DSL198708-199001

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010-08iFJ62,HJ60..CBR,DSL198708-199001

NATURAL WHITE,TRIM1#,4#

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-90A00iFJ62,HJ61..VX198708-199001

main69810-90A02iFJ62,HJ60..CBR,DSL198708-199001

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-90A00iFJ62,HJ61..VX198708-199001

main69820-90A02iFJ62,HJ60..CBR,DSL198708-199001

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-90A03iFJ62,HJ6#198708-199001

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69902-90A02iFJ62,HJ6#198708-199001

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-90A01iFJ62,HJ6#198708-199001

sub69971-90K00

8511

9011908093

main90119-08093

9016850024

main90168-50024

9165140610

main91651-40610

16 parts on this diagram · 1 diagram in section
