INSIDE TRIM BOARD

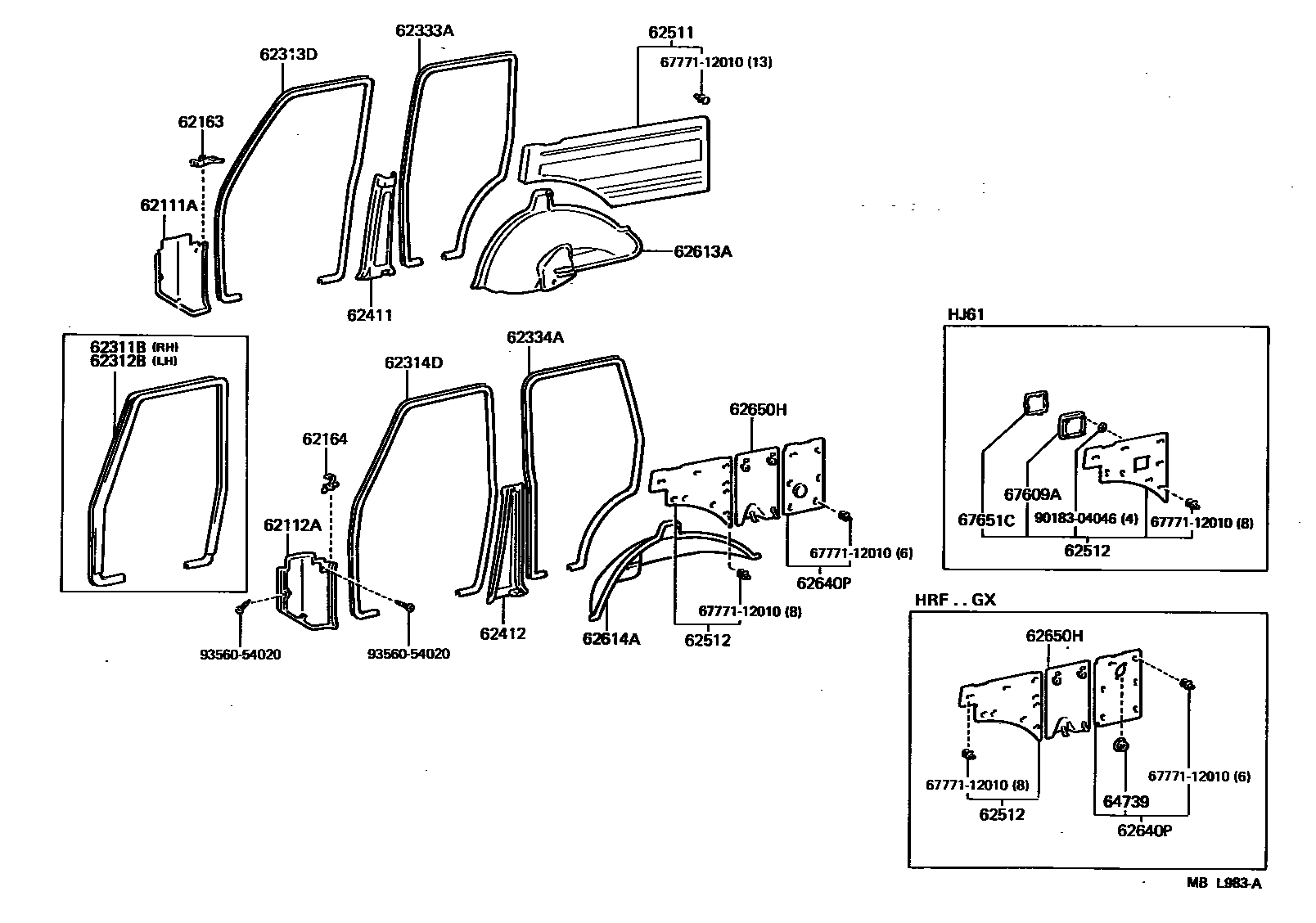

Parts diagram
62111ATRIM SUB-ASSY, COWL SIDE, RH
main62101-90A00-03i198708-199001
GRAY,TRIM1#
sub62101-90A00
main62101-90A00-16i198708-199001
SEPIA BROWN,TRIM4#
sub62101-90A00
62112ATRIM SUB-ASSY, COWL SIDE, LH
main62102-90A00-03i198708-199001
GRAY,TRIM1#
sub62102-90A00
main62102-90A00-16i198708-199001
SEPIA BROWN,TRIM4#
sub62102-90A00
62163COVER, COWL SIDE INSTRUMENT PANEL BRACKET, RH
main62163-90A00-03i198708-199001
GRAY,TRIM1#
sub62163-90A00
main62163-90A00-16i198708-199001
SEPIA BROWN,TRIM4#
sub62163-90A00
62164COVER, COWL SIDE INSTRUMENT PANEL BRACKET, LH
main62164-90A00-03i198708-199001
GRAY,TRIM1#
sub62164-90A00
main62164-90A00-16i198708-199001
SEPIA BROWN,TRIM4#
sub62164-90A00
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-90A00-03i198808-198810
SHADOW GRAY,TRIM1#
sub62311-90A01
main62311-90A00-06i198808-198810
SEPIA BROWN,TRIM4#
sub62311-90A01
main62311-90A01-03i198810-199001
SHADOW GRAY,TRIM1#
main62311-90A01-06i198810-199001
SEPIA BROWN,TRIM4#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-90A00-03i198808-198810
SHADOW GRAY,TRIM1#
sub62312-90A01
main62312-90A00-06i198808-198810
SEPIA BROWN,TRIM4#
sub62312-90A01
main62312-90A01-03i198810-199001
SHADOW GRAY,TRIM1#
main62312-90A01-06i198810-199001
SEPIA BROWN,TRIM4#
62313DTRIM, FRONT DOOR OPENING, RH
main62313-90A00-03i198708-199001
GRAY,TRIM1#
sub62313-90A00
sub62333-90A00
main62313-90A00-16i198708-199001
SEPIA BROWN,TRIM4#
sub62313-90A00
sub62333-90A00
62314DTRIM, FRONT DOOR OPENING, LH
main62313-90A00-03i198708-199001
GRAY,TRIM1#
sub62313-90A00
sub62333-90A00
main62313-90A00-16i198708-199001
SEPIA BROWN,TRIM4#
sub62313-90A00
sub62333-90A00
62333ATRIM, REAR DOOR OPENING, RH
main62333-90A00-03i198708-199001
GRAY,TRIM1#
sub62333-90A00
main62333-90A00-16i198708-199001
SEPIA BROWN,TRIM4#
sub62333-90A00
62334ATRIM, REAR DOOR OPENING, LH
main62333-90A00-03i198708-199001
GRAY,TRIM1#
sub62333-90A00
main62333-90A00-16i198708-199001
SEPIA BROWN,TRIM4#
sub62333-90A00
62411GARNISH, CENTER PILLAR, RH
main62411-90A01-03i198708-199001
GRAY,TRIM1#
sub62411-90A01
main62411-90A01-16i198708-199001
SEPIA BROWN,TRIM4#
sub62411-90A01
62412GARNISH, CENTER PILLAR, LH
main62412-90A01-03i198708-199001
GRAY,TRIM1#
sub62412-90A01
main62412-90A01-16i198708-199001
SEPIA BROWN,TRIM4#
sub62412-90A01
62511BOARD, QUARTER INSIDE TRIM, RH
main62510-90A16-03i198708-199001
SHADOW GRAY,TRIM1#
sub62510-90A25
main62510-90A16-06i198708-199001
SEPIA BROWN,TRIM4#
sub62510-90A25
main62510-90A46-03i198708-199001
SHADOW GRAY,TRIM1#
main62510-90A46-06i198708-199001
SEPIA BROWN,TRIM4#
main62510-90A58-03i198808-199001
SHADOW GRAY,SHADOW GRAY,TRIM1#
main62510-90A58-06i198808-199001
SEPIA BROWN,SEPIA BROWN,TRIM4#
62512BOARD, QUARTER INSIDE TRIM, LH
main62520-90A39-03i198708-199001
SHADOW GRAY,TRIM1#
main62520-90A39-06i198708-199001
SEPIA BROWN,TRIM4#
main62520-90A64-03i198708-199001
SHADOW GRAY,TRIM1#
main62520-90A64-06i198708-199001
SEPIA BROWN,TRIM4#
main62520-90A71-03i198808-199001
SHADOW GRAY,TRIM1#
main62520-90A71-06i198808-199001
SEPIA BROWN,TRIM4#
62613ACOVER, QUARTER WHEEL HOUSE, RH
main62603-90A03-03i198708-199001
SHADOW GRAY,TRIM1#
sub62603-90A03
main62603-90A03-06i198708-199001
DARK BROWN,TRIM4#
sub62603-90A03
main62603-90A06-03i198708-199001
SHADOW GRAY,TRIM1#
sub62603-90A06
main62603-90A06-06i198708-199001
SEPIA BROWN,TRIM4#
sub62603-90A06
main62603-90A09-03i198808-199001
SHADOW GRAY,TRIM1#
sub62603-90A09
main62603-90A09-06i198808-199001
SEPIA BROWN,TRIM4#
sub62603-90A09
main62613-90A07-06i198708-199001
SEPIA BROWN,TRIM4#
62614ACOVER, QUARTER WHEEL HOUSE, LH
main62604-90A01-03i198708-199001
SHADOW GRAY,TRIM1#
sub62604-90A01
main62604-90A01-16i198708-199001
DARK BROWN,TRIM4#
sub62604-90A01
main62604-90A04-03i198708-199001
SHADOW GRAY,TRIM1#
sub62604-90A04
main62604-90A04-06i198708-199001
SEPIA BROWN,TRIM4#
sub62604-90A04
main62604-90A07-03i198808-199001
SHADOW GRAY,TRIM1#
sub62604-90A07
main62604-90A07-06i198808-199001
SEPIA BROWN,TRIM4#
sub62604-90A07
main62614-90A00-16i198708-199001
SEPIA BROWN,TRIM4#
sub62614-90A00
62640PPANEL ASSY, QUARTER TRIM, REAR LH
main62640-90A00-03i198708-199001
SHADOW GRAY,TRIM1#
main62640-90A00-06i198708-199001
SEPIA BROWN,TRIM4#
main62640-90A16-03i198708-199001
SHADOW GRAY,TRIM1#
main62640-90A16-06i198708-199001
SEPIA BROWN,TRIM4#
main62640-90A20-03i198708-199001
SHADOW GRAY,TRIM1#
main62640-90A20-06i198708-199001
SEPIA BROWN,TRIM4#
main62640-90A22-03i198808-199001
SHADOW GRAY,TRIM1#
main62640-90A22-06i198808-199001
SEPIA BROWN,TRIM4#
62650HPANEL ASSY, QUARTER TRIM, CENTER
main62650-90A05-03i198708-199001
SHADOW GRAY,TRIM1#
main62650-90A05-06i198708-199001
SEPIA BROWN,TRIM4#
main62650-90A07-03i198808-199001
SHADOW GRAY,TRIM1#
main62650-90A07-06i198808-199001
SEPIA BROWN,TRIM4#
main62650-90A08-03i198708-199001
SHADOW GRAY,TRIM1#
main62650-90A08-06i198708-199001
SEPIA BROWN,TRIM4#
64739COVER, DECK TRIM SIDE WASHER
main64739-90K01-03i198708-199001
SHADOW GRAY,TRIM1#
sub64739-90K01
main64739-90K01-03i198708-199001
SHADOW GRAY,SHADOW GRAY,TRIM1#
sub64739-90K01
main64739-90K01-06i198708-199001
SEPIA BROWN,TRIM4#
sub64739-90K01
main64739-90K01-06i198708-199001
SEPIA BROWN,SEPIA BROWN,TRIM4#
sub64739-90K01
67609ACOVER, QUARTER TRIM SPEAKER
main67609-90A00-03i198708-199001
SHADOW GRAY,TRIM1#
sub67609-90A00
main67609-90A00-06i198708-199001
SEPIA BROWN,TRIM4#
sub67609-90A00
67651CGRILLE, QUARTER TRIM SPEAKER
main67651-90A01-03i198708-199001
SHADOW GRAY,TRIM1#
main67651-90A01-06i198708-199001
SEPIA BROWN,TRIM4#
6777112010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12010
9018304046
main90183-04046
9356054020
main93560-54020

24 parts on this diagram · 2 diagrams in section
