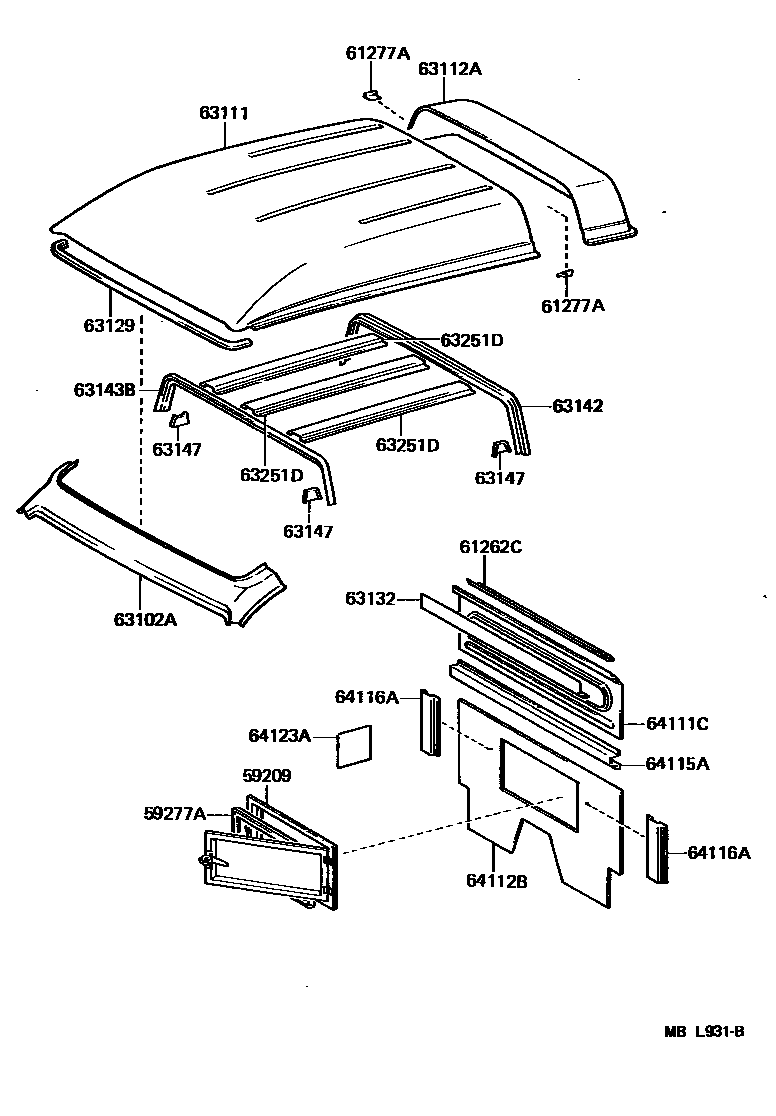

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1 0004 1

59209COVER SUB-ASSY, INSPECTION HOLE

main59209-90A00iFJ62..IV4198708-199001

59277AWEATHERSTRIP, INSPECTION HOLE COVER

main59277-90A00iFJ62..IV4198708-199001

61262CCHANNEL, ROOF DRIP, REAR

main61262-90A02iFJ62..IV4198708-199001

61277AJOINT, ROOF DRIP CHANNEL

main61277-90K00×4iFJ62,HJ60..STD198708-199001

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-90A01iFJ62..IV4198708-199001

63111PANEL, ROOF

main63111-90A00iFJ62,HJ60..SRF..CBU198708-199001

main63111-90A02iFJ62,HJ6#..HRF198708-199001

main63111-90A07iFJ62..IV4198708-199001

63112APANEL, ROOF, NO.2

main63112-90A00iFJ62..IV4198708-199001

63129PROTECTOR, WINDSHIELD HEADER

main63129-90A01iFJ62..IV4198708-199001

63132PANEL, WINDSHIELD HEADER, INNER

main63132-90A00iFJ62,HJ6#..CBU198708-199001

main63132-90A03iFJ62..IV4198708-199001

63142REINFORCEMENT, ROOF PANEL, NO.2

main63124-90A00iFJ62..IV4198708-199001

main63141-90A00iFJ62,HJ60..SRF..CBU198708-199001

main63142-30010iFJ62,HJ6#..HRF198708-199001

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63045-90A00iHJ6#..HRF198708-199001

main63045-90A03iFJ62..EFI198808-199001

63147BRACKET, ROOF PANEL REINFORCEMENT

main63147-90A02×4iFJ62..IV4198708-199001

63251DSTRENGTH, ROOF PANEL, CENTER NO.1

main63251-90A00×3iFJ62..IV4198708-199001

64111CPANEL, CAB BACK, UPPER

main64111-90A00iFJ62..IV4198708-199001

64112BPANEL, CAB BACK, LOWER

main64112-90A00iFJ62..IV4198708-199001

64115AREINFORCEMENT, BACK, UPPER

main64115-90A00iFJ62..IV4198708-199001

64116AREINFORCEMENT, BACK, LOWER

main64116-90A00×2iFJ62..IV4198708-199001

64123APANEL, BACK CORNER

main64123-90A00×2iFJ62..IV4198708-199001

18 parts on this diagram · 4 diagrams in section
