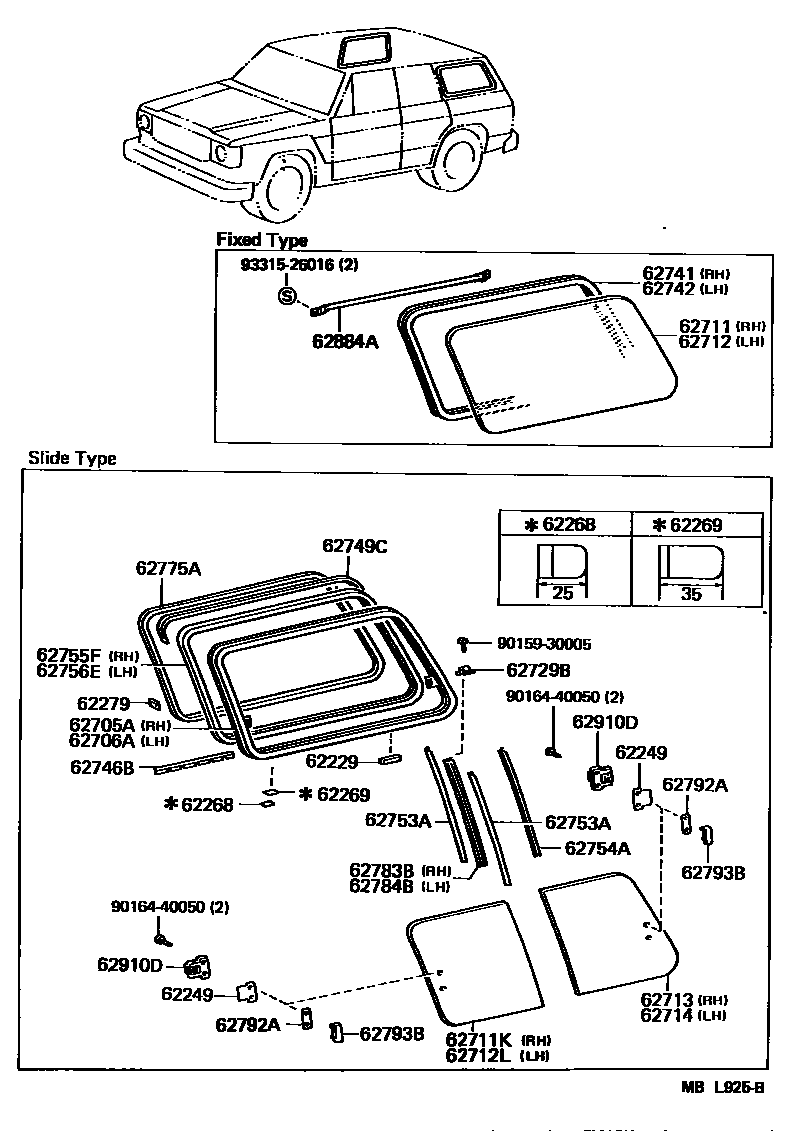

SIDE WINDOW

62229PACKING, SIDE WINDOW

main62229-95J00iFJ62..EFI198808-199001

62249PLATE, SIDE WINDOW, RH

main62249-95700iFJ62..EFI198808-199001

62268FILM, SIDE WINDOW FRAME, B

main62268-90A00iFJ62..EFI198808-199001

62269FILM, SIDE WINDOW FRAME, RH

main62269-90A00iFJ62..EFI198808-199001

62279SPACER, SIDE WINDOW FRAME, UPPER

main62279-90K00iFJ62..EFI198808-199001

62705AFRAME SUB-ASSY, QUARTER WINDOW, RH

main62705-90A01iFJ62..EFI198808-199001

62706AFRAME SUB-ASSY, QUARTER WINDOW, LH

main62706-90A01iFJ62..EFI198808-199001

62711GLASS, QUARTER WINDOW, RH

main62711-90A12iFJ62,HJ60..SRF..GX198708-199001

main62711-90A13iFJ62,HJ60..STD..CBU198708-199001

sub62711-90A12

main62711-90A14iHJ6#..HRF198708-199001

62711KGLASS, QUARTER WINDOW, FRONT RH

main62711-90A11iFJ62..EFI198808-199001

62712GLASS, QUARTER WINDOW, LH

main62712-90A11iFJ62,HJ60..SRF..GX198708-199001

main62712-90A12iFJ62,HJ60..STD..CBU198708-199001

sub62712-90A11

main62712-90A13iHJ6#..HRF198708-199001

62712LGLASS, QUARTER WINDOW, FRONT LH

main62712-90A10iFJ62..EFI198808-199001

62713GLASS, QUARTER WINDOW, REAR RH

main62713-90A06iFJ62..EFI198808-199001

62714GLASS, QUARTER WINDOW, REAR LH

main62714-90A06iFJ62..EFI198808-199001

62729BPAD, WINDOW CENTER SASH

main62729-90K01iFJ62..EFI198808-199001

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-90A00iFJ62,HJ60..STD..CBU198708-199001

main62741-90A01iFJ62,HJ6#..(GX,VX)..(CBR,DSL,TD)198708-199001

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62741-90A00iFJ62,HJ60..STD..CBU198708-199001

main62741-90A01iFJ62,HJ6#..(GX,VX)..(CBR,DSL,TD)198708-199001

62746BPACKING, QUARTER WINDOW, RH

main62746-90K00iFJ62..EFI198808-199001

62749CSEAL, QUARTER WINDOW, UPPER

main62749-90A00iFJ62..EFI198808-198901

sub62749-90A01

main62749-90A01iFJ62..EFI198901-199001

62753AWEATHERSTRIP, QUARTER WINDOW, CENTER

main62753-90A01iFJ62..EFI198808-199001

62754AWEATHERSTRIP, QUARTER WINDOW, CENTER NO.2

main62754-90A00iFJ62..EFI198808-199001

62755FRUN, QUARTER WINDOW, RH

main62755-90A01iFJ62..EFI198808-199001

62756ERUN, QUARTER WINDOW, LH

main62756-90A01iFJ62..EFI198808-199001

62775ACLIP, QUARTER WINDOW

main62775-90A00-13iFJ62..EFI198808-199001

SHADOW GRAY,TRIM1#

sub62775-90A00

main62775-90A00-16iFJ62..EFI198808-199001

SEPIA BROWN,TRIM4#

sub62775-90A00

62783BSASH, QUARTER WINDOW, CENTER RH

main62783-90A00iFJ62..EFI198808-199001

62784BSASH, QUARTER WINDOW, CENTER LH

main62784-90A00iFJ62..EFI198808-199001

62792APACKING, SIDE WINDOW LOCK, RH

main62792-95A00iFJ62..EFI198808-199001

62793BRETAINER, SIDE WINDOW LOCK, RH

main62793-95704iFJ62..EFI198808-199001

62884AGUARD, QUARTER WINDOW, RH

main62884-90A01iFJ62,HJ6#..CBU..(CBR,DSL,TD)198708-199001

62910DLOCK ASSY, QUARTER WINDOW

main62910-95703iFJ62..EFI198808-199001

9015930005

main90159-30005

9016440050

main90164-40050

9331526016

main93315-26016

32 parts on this diagram · 1 diagram in section
