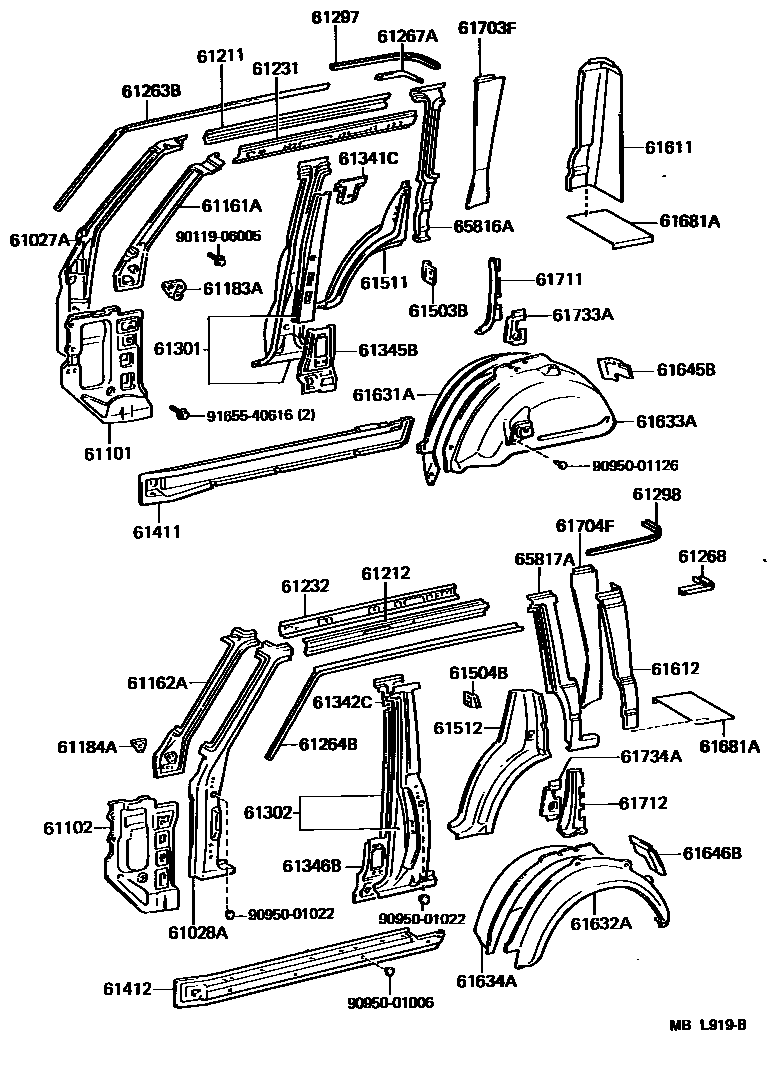

SIDE MEMBER
61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH
61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH
61101PANEL SUB-ASSY, COWL SIDE, RH
61102PANEL SUB-ASSY, COWL SIDE, LH
61161APILLAR, FRONT BODY, INNER RH
61162APILLAR, FRONT BODY, INNER LH
61183ABRACKET, INSTRUMENT PANEL SIDE, NO.2 RH
61184ABRACKET, INSTRUMENT PANEL SIDE, NO.2 LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61263BCHANNEL, ROOF DRIP SIDE, FRONT RH
61264BCHANNEL, ROOF DRIP SIDE, FRONT LH
61267ACHANNEL, ROOF DRIP SIDE, REAR RH
61268CHANNEL, ROOF DRIP SIDE, REAR LH
61297CHANNEL, ROOF DRIP SIDE, REAR NO.2, RH
61298CHANNEL, ROOF DRIP SIDE, REAR NO.2, LH
61341CPILLAR, CENTER BODY, INNER UPPER RH
61342CPILLAR, CENTER BODY, INNER UPPER LH
61345BPILLAR, CENTER BODY, INNER LOWER RH
61346BPILLAR, CENTER BODY, INNER LOWER LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH
61511PILLAR, QUARTER LOCK, RH
61512PILLAR, QUARTER LOCK, LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61681ASTEP, QUARTER PANEL, NO.1
61703FPANEL SUB-ASSY, QUARTER, INNER FRONT RH
61704FPANEL SUB-ASSY, QUARTER, INNER FRONT LH
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
65816APANEL, REAR BODY SIDE, RH
65817APANEL, REAR BODY SIDE, LH
9011906005
main90119-06005
9095001006
main90950-01006
9095001022
main90950-01022
9095001126
main90950-01126
9165540616
main91655-40616
52 parts on this diagram · 3 diagrams in section
