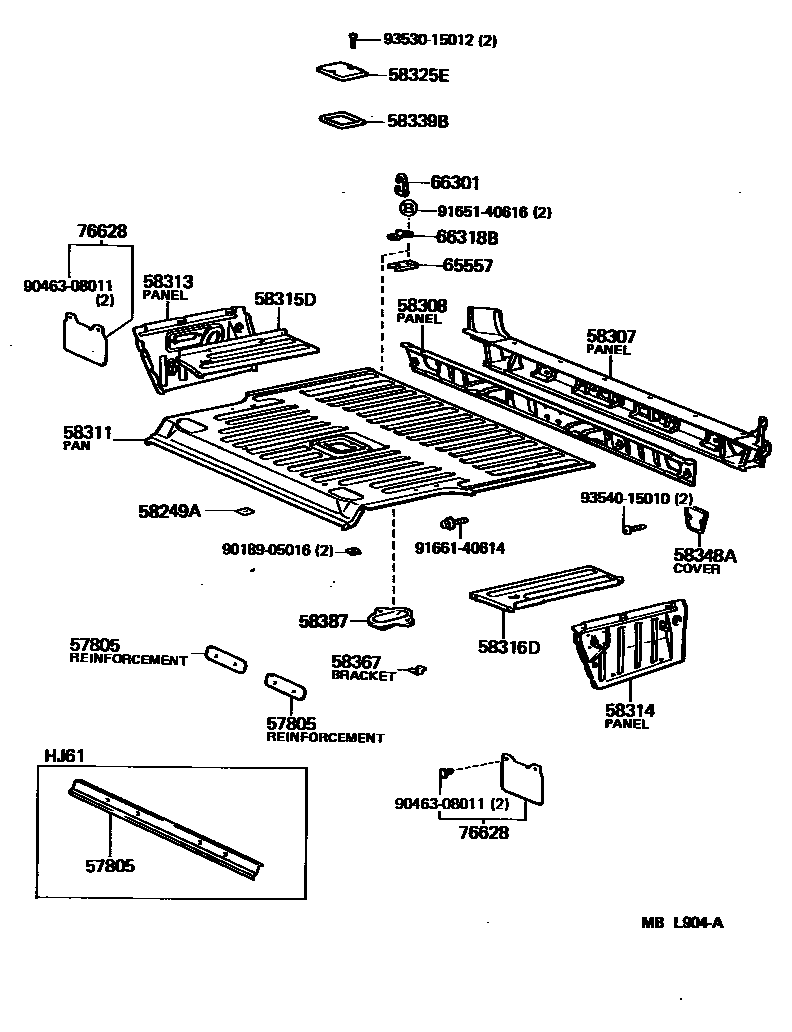

REAR FLOOR PANEL & REAR FLOOR MEMBER
57805REINFORCEMENT SUB-ASSY, BELT ANCHOR
58249AREINFORCEMENT, REAR SEAT MOUNTING
58307PANEL SUB-ASSY, BODY LOWER BACK
58308PANEL SUB-ASSY, BODY LOWER BACK, INNER
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58339BPACKING, REAR FLOOR SERVICE HOLE
58348ACOVER, REAR BODY MOUNTING SERVICE HOLE
58367BRACKET, FUEL TUBE CLAMP
58387PLATE, REAR FLOOR FINISH
65557RETAINER, ROPE HOOK
66301HOOK SUB-ASSY, ROPE
66318BBAND, ROPE HOOK
76628MUDGUARD, QUARTER PANEL, REAR
9018905016
main90189-05016
9046308011
main90463-08011
9165140616
main91651-40616
9166140614
main91661-40614
9353015012
main93530-15012
9354015010
main93540-15010
24 parts on this diagram · 2 diagrams in section
