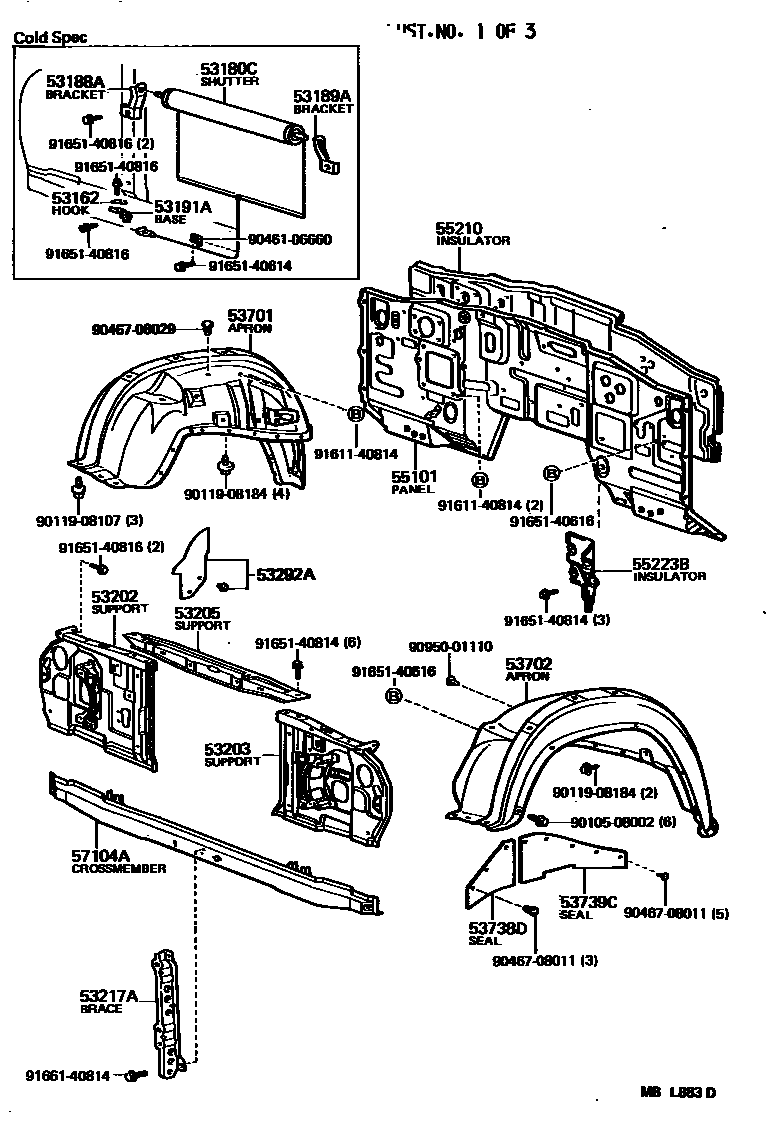

FRONT FENDER APRON & DASH PANEL
53162HOOK, RADIATOR SHUTTER
53180CSHUTTER ASSY, RADIATOR
53188ABRACKET, RADIATOR SHUTTER SUPPORT, RH
53189ABRACKET, RADIATOR SHUTTER SUPPORT, LH
53191ABASE, RADIATOR SHUTTER CONTROL WIRE CLAMP
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53217ABRACE, HOOD LOCK SUPPORT
53292ASEAL, RADIATOR SUPPORT, UPPER
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53738DSEAL, FRONT FENDER APRON TO FRAME, FRONT
53739CSEAL, FRONT FENDER APRON TO FRAME, REAR
55101PANEL SUB-ASSY, DASH
55223BINSULATOR, DASH PANEL HEAT, NO.1
57104AMEMBER SUB-ASSY, FRONT CROSS
9010508002
main90105-08002
9011908107
main90119-08107
9011908184
main90119-08184
9046106660
main90461-06660
9046708011
main90467-08011
9046708029
main90467-08029
9095001110
main90950-01110
9161140814
main91611-40814
9165140614
main91651-40614
9165140616
main91651-40616
9165140814
main91651-40814
9165140816
main91651-40816
9166140814
main91661-40814
31 parts on this diagram · 3 diagrams in section
