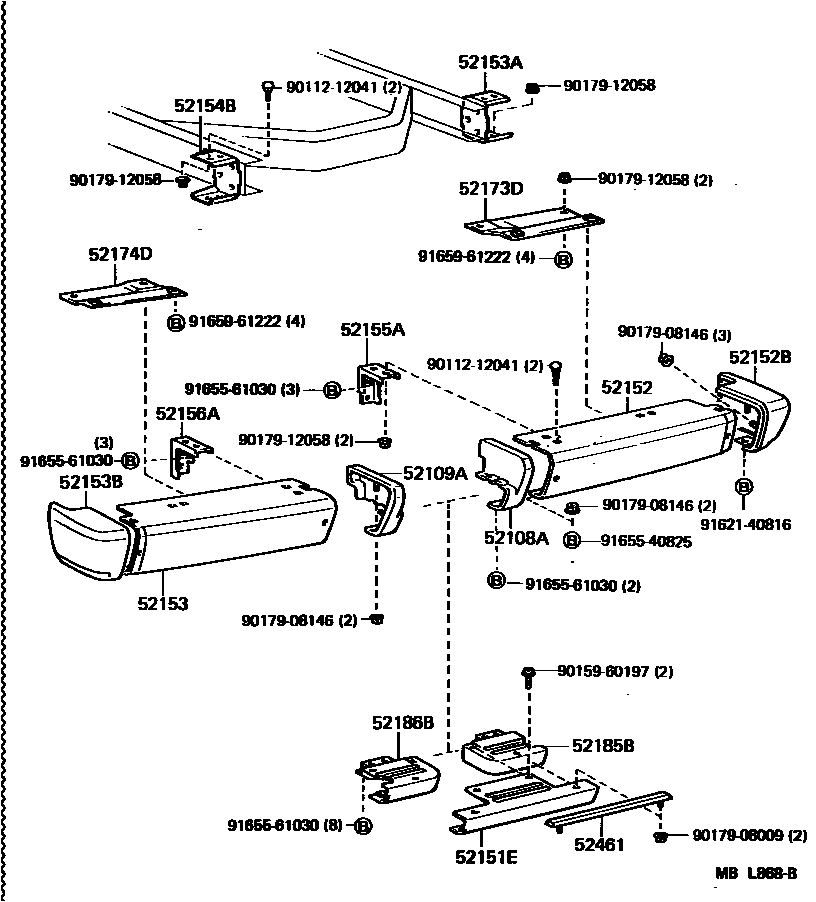

REAR BUMPER & BUMPER STAY
52108ABUMPER SUB-ASSY, REAR SIDE, RH
52109ABUMPER SUB-ASSY, REAR SIDE, LH
52151EBAR, REAR BUMPER
52152BAR, REAR BUMPER, RH
52152BEXTENSION, REAR BUMPER, RH
52153BAR, REAR BUMPER, LH
52153ASTAY, REAR BUMPER SIDE, RH
52153BEXTENSION, REAR BUMPER, LH
52154BSTAY, REAR BUMPER SIDE, LH
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52173DREINFORCEMENT, REAR BUMPER BAR, RH
52174DREINFORCEMENT, REAR BUMPER BAR, LH
52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH
52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH
52461PAD, REAR BUMPER, CENTER
9011212041
main90112-12041
9015960197
main90159-60197
9017908009
main90179-08009
9017908146
main90179-08146
9017912058
main90179-12058
9162140816
main91621-40816
9165540825
main91655-40825
9165561030
main91655-61030
9165961222
main91659-61222
25 parts on this diagram · 1 diagram in section
